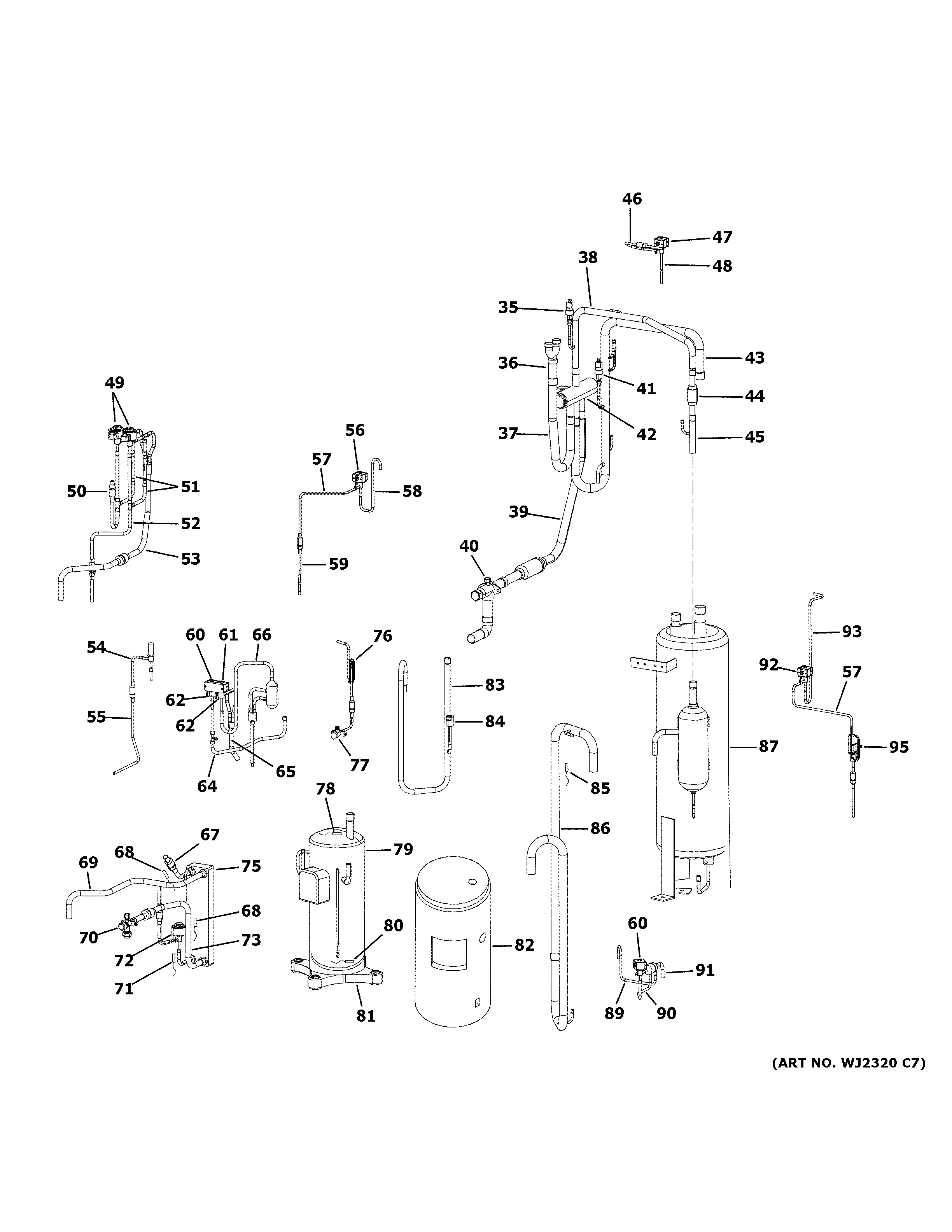

MVHP072ME4CA1 SEALED SYSTEM

MVHP072ME4CA1 SEALED SYSTEM

Written by

in

MVHP072ME4CA1 SEALED SYSTEM

Products

Position	Product
35	WJ26X22645 GE High Pressure Sensor
36	CONDENSER CONNECTION TUBE
37	REVERSING VALVE TUBE C
38	REVERSING VALVE TUBE D
39	REVERSING VALVE TUBE E
40	STOP VALVE
41	WJ26X22652 GE Low Pressure Sensor
42	REVERSING VALVE
43	REVERSING VALVE TUBE S
44	WP26X26977 GE Check Valve
45	CHECK VALVE CONNECTION TUBE
46	SV1 CONNECTION TUBE
47	WP26X26967 GE Solenoid Coil SV1
48	SV1 SOLENOID VALVE BODY
49	WJ26X22560 GE Electronic Expansion Valve
50	EEV CONNECTION TUBE
51	CHECK VALVE
52	UPPER LIQUID HEADER CONNECTION TUBE
53	LOWER LIQUID HEADER CONNECTION TUBE
54	UNLOADING VALVE
55	UNLOADING VALVE CONNECTION TUBE
56	SV9 SOLENOID COIL
57	WP26X26957 GE Valve Body Solenoid
58	WP53X26994 GE Compressor Connection T
59	WP53X26995 GE SV9 Reversing Valve Connection
60	SOLENOID COIL
61	SV7 SOLENOID COIL
62	WP26X26958 GE Solenoid Valve Body
64	SV3 TO REVERSING VALVE CONNECTION TUBE
65	SV3 TO HEAT EXCHANGER CONNECTION TUBE
66	SV7 CONNECTION TUBE
67	HEAT EXCHANGER TO SV3 CONNECTION TUBE
68	TSCO SENSOR
69	HEAT EXCHANGER TO SUPERCOOLED TUBE 2
70	WP26X27012 GE Stop Valve
71	TSCI SENSOR
72	WJ53X22639 GE Electronic Expansion Valve
73	STOP VALVE CONNECTION TUBE
75	HEAT EXCHANGER ASSEMBLY
76	GAS INJECTION TUBE
77	WJ27X22626 GE Charging Port
78	WP26X26971 GE Temperature Sensor
79	WP98X28243 GE Compressor
80	WP26X26974 GE Toilet Sensor
81	WP27X26752 GE Compressor Heater
82	WP43X26961 GE Compressor Insulation
83	WP53X26051 GE Discharge Tube
84	GEN WP26X26962
85	WP26X26753 GE Temperature Sensor
86	WP53X26049 GE Suction Tube
87	WP53X26039 GE Accumulator
89	GEN WP53X26998
90	GEN WP26X26993
91	GEN WP53X26996
92	GEN WP26X26953
93	WP53X27004 GE Suction Connection Tube for SV181
95	WP53X27003 GE SV181 Accumulator Connection Valve
