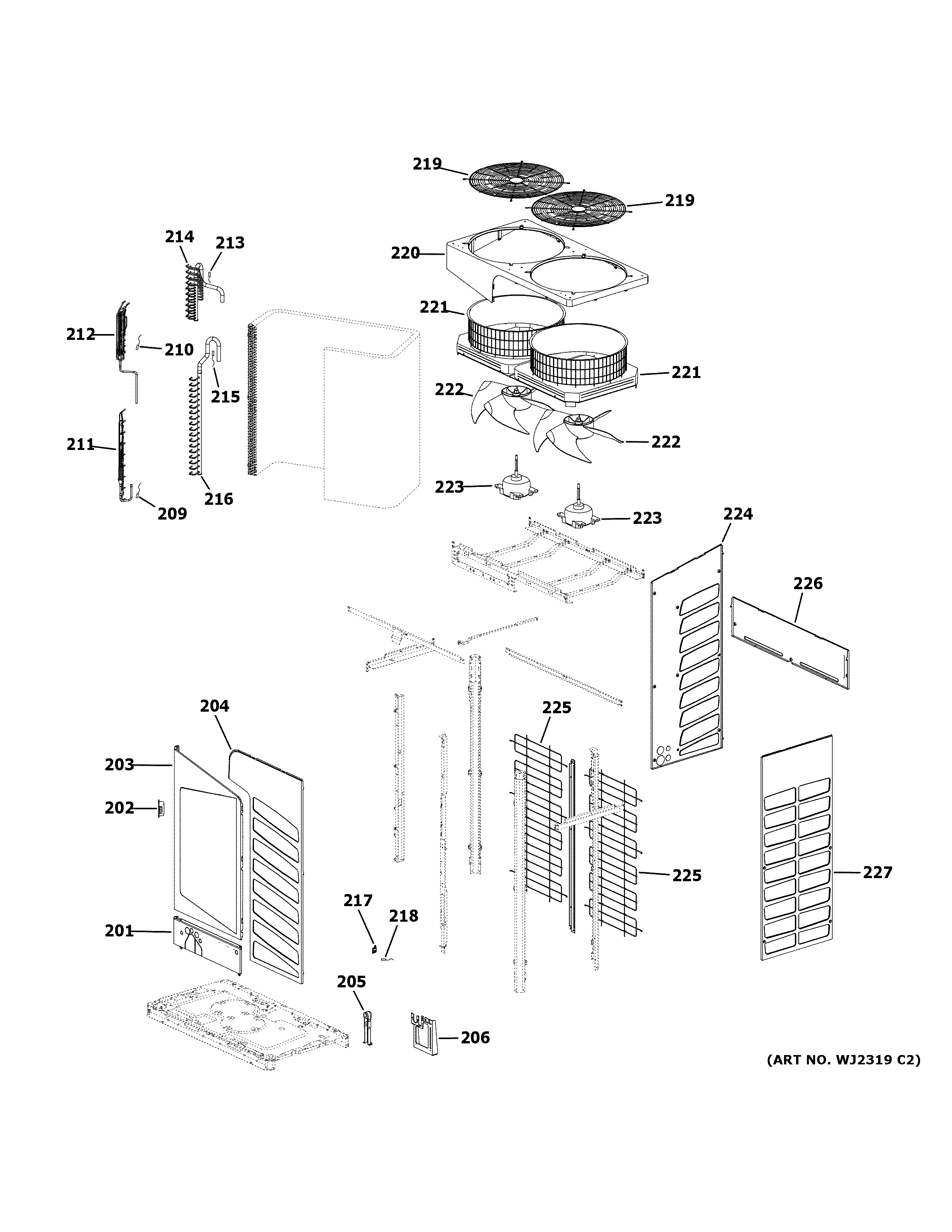

MVHP096ME2CA1 MOTOR & CHASSIS PARTS

MVHP096ME2CA1 MOTOR & CHASSIS PARTS

Written by

in

MVHP096ME2CA1 MOTOR & CHASSIS PARTS

Products

PositionProduct
201WP71X26746 GE Lower Front Panel
202WP01X26749 GE Handle
203WP71X26743 GE Service Panel
204WP71X26744 GE Front Panel
205SUPPORT PLATE
206VALVE SEAT
209WP26X26754 GE Sensor TDEF2
210WP26X26027 GE Defrost Sensor
211LOWER LIQUID HEADER
212WP53X26058 GE Upper Liquid Header
213WP26X26753 GE Temperature Sensor
214WP53X26762 GE Upper Gas Header
215Toci2 SENSOR
216WP53X26761 GE Gas Lower Header
217WP65X26751 GE Sensor Clip
218Tao SENSOR
219WP71X27014 GE Grille Top
220TOP COVER
221FAN SHROUD
222FAN BLADE
223WP94X26028 GE Fan Motor Assembly
224WP71X26739 GE Right Side Panel
225GRILLE
226WP71X26745 GE Back Guard
227WP71X26738 GE Panel Left Side
