MVHP120ME2CA1 SEALED SYSTEM

MVHP120ME2CA1 SEALED SYSTEM

Written by

in

MVHP120ME2CA1 SEALED SYSTEM

Products

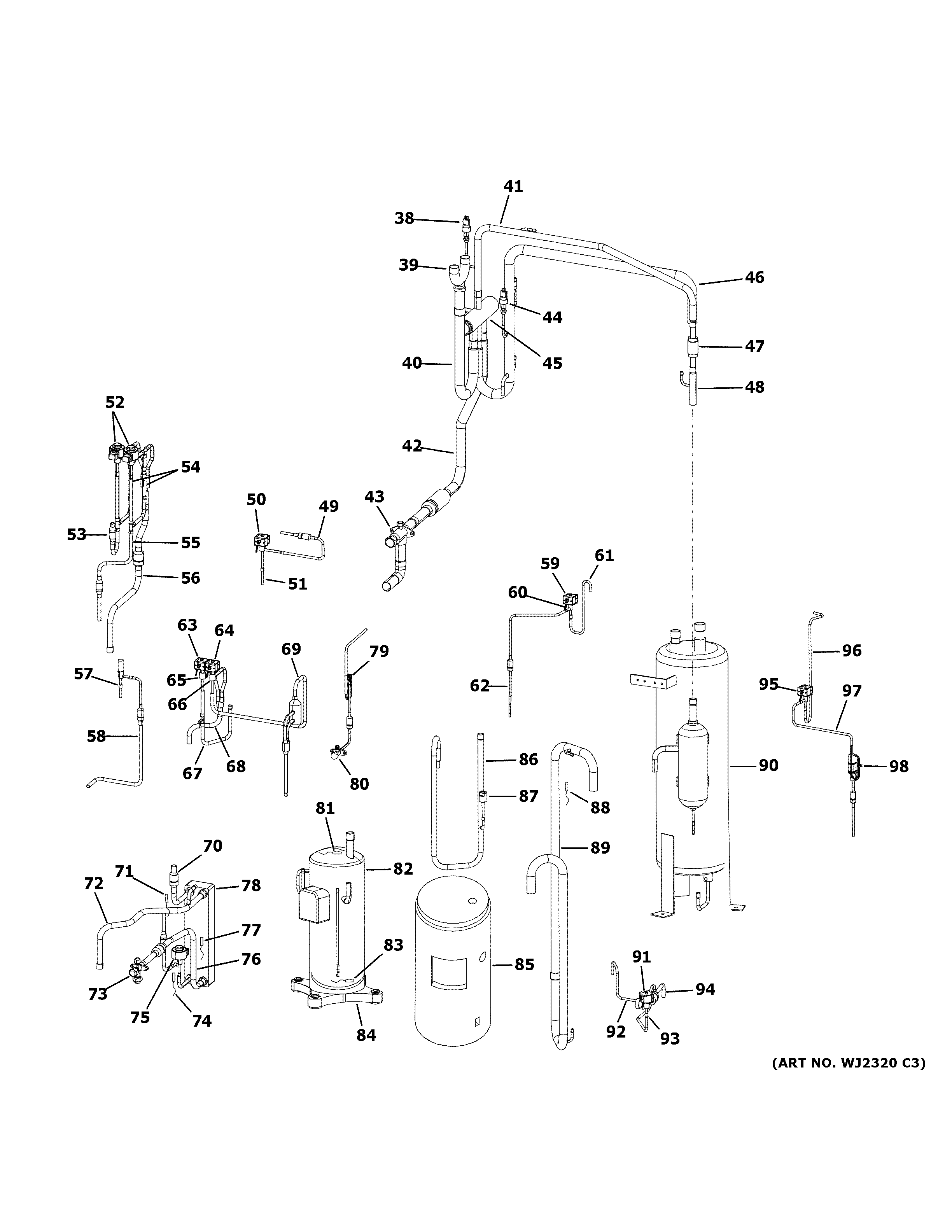

PositionProduct
38WJ26X22645 GE High Pressure Sensor
39UNLOAD VALVE ASSEMBLY
40WP53X27016 GE Reversing Valve Tube
41WP53X27033 GE Dishwasher Reversing Valve Tube
42REVERSING VALVE TUBE E
43STOP VALVE
44WJ26X22652 GE Low Pressure Sensor
45REVERSING VALVE
46WP53X27021 GE Reversing Valve Tube
47WP26X26977 GE Check Valve
48CHECK VALVE CONNECTION TUBE
49WP53X27028 GE Connection Tube
50WP26X26967 GE Solenoid Coil SV1
51SV1 SOLENOID VALVE BODY
52WJ26X22560 GE Electronic Expansion Valve
53WP53X27017 GE Evaporator Connection Tube
54CHECK VALVE
55WP53X27018 GE Upper Liquid Header Connection
56WP53X27019 GE Lower Liquid Header Connection
57UNLOADING VALVE
58WP53X27031 GE Unloading Valve Connection Tube
59SV9 SOLENOID COIL
61WP53X26994 GE Compressor Connection T
62WP53X26995 GE SV9 Reversing Valve Connection
64SV7 SOLENOID COIL
66WP26X26958 GE Solenoid Valve Body
67WP53X27030 GE Valve Connection for SV3 to Reversing Valve
68WP53X27023 GE Heat Exchange Connection
69WP53X27024 GE Connection Tube Sv7
70WP53X27022 GE Heat Exchanger to SV3 Connection
72WP53X27025 GE Heat Exchanr To Supercooled
73STOP VALVE
74TSCI SENSOR
75WJ53X22639 GE Electronic Expansion Valve
76WP53X27026 GE Stop Valve Connection Tube
77TSCO SENSOR
78WP87X26759 GE Heat Exchanger Assembly
79WP53X27027 GE Gas Injection Tube
80WJ27X22626 GE Charging Port
81WP26X26971 GE Temperature Sensor
82COMPRESSOR
83WP26X26974 GE Toilet Sensor
84WP27X26752 GE Compressor Heater
85WP43X26961 GE Compressor Insulation
86WP53X26051 GE Discharge Tube
87GEN WP26X26962
88WP26X26753 GE Temperature Sensor
89WP53X26049 GE Suction Tube
90WP53X26039 GE Accumulator
91SOLENOID COIL
92GEN WP53X27365
93GEN WP26X26993
94WP53X27029 GE Sv14 Accumulator Tube
95GEN WP26X26953
96WP53X27004 GE Suction Connection Tube for SV181
97WP26X26957 GE Valve Body Solenoid
98WP53X27003 GE SV181 Accumulator Connection Valve
