MVHP144ME4CA1 SEALED SYSTEM

MVHP144ME4CA1 SEALED SYSTEM

Written by

in

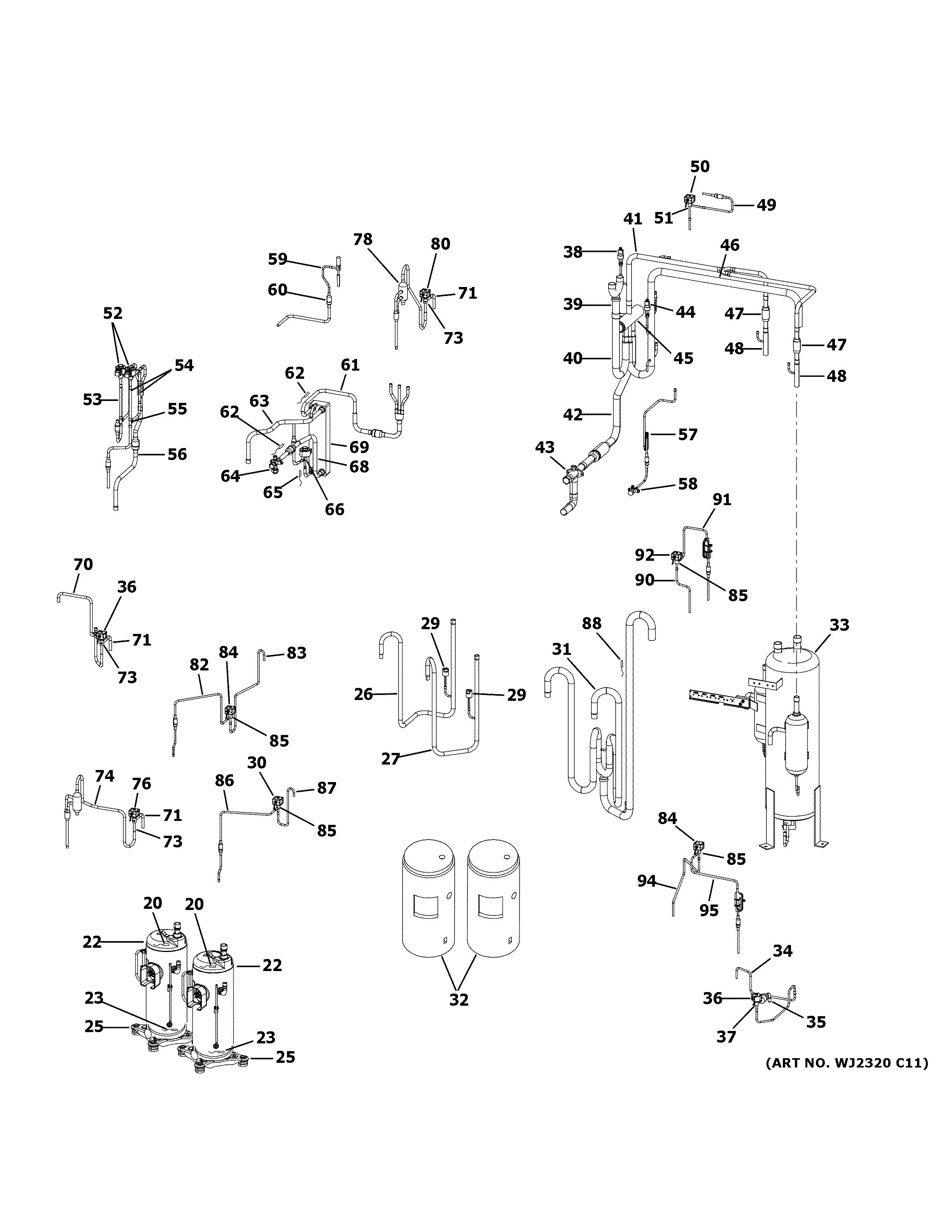

MVHP144ME4CA1 SEALED SYSTEM

Products

Position	Product
20	WP26X26971 GE Temperature Sensor
22	WP98X28243 GE Compressor
23	WP26X26974 GE Toilet Sensor
25	WP27X26752 GE Compressor Heater
26	DISCHARGE TUBE
27	WP53X27035 GE Discharge Tube
29	GEN WP26X26962
30	GEN WP26X26965
31	SUCTION TUBE
32	WP43X26961 GE Compressor Insulation
33	ACCUMULATOR
34	SV14 TO SUCTION CONNECTION TUBE
35	SV14 TO ACCUMULATOR CONNECTION TUBE
36	SOLENOID COIL
37	GEN WP26X26993
38	WJ26X22645 GE High Pressure Sensor
39	UNLOAD VALVE ASSEMBLY
40	WP53X27016 GE Reversing Valve Tube
41	REVERSING VALVE TUBE D
42	REVERSING VALVE TUBE E
43	STOP VALVE
44	WJ26X22652 GE Low Pressure Sensor
45	REVERSING VALVE
46	REVERSING VALVE TUBE S
47	WP26X26977 GE Check Valve
48	CHECK VALVE CONNECTION TUBE
49	WP53X27028 GE Connection Tube
50	WP26X26967 GE Solenoid Coil SV1
51	SV1 SOLENOID VALVE BODY
52	WJ26X22560 GE Electronic Expansion Valve
53	WP53X27017 GE Evaporator Connection Tube
54	CHECK VALVE
55	WP53X27018 GE Upper Liquid Header Connection
56	WP53X27019 GE Lower Liquid Header Connection
57	GAS INJECTION TUBE
58	WJ27X22626 GE Charging Port
59	UNLOADING VALVE
60	WP53X27031 GE Unloading Valve Connection Tube
61	HEAT EXCHANGER TO SV8 CONNECTION TUBE
62	TSCO SENSOR
63	WP53X27025 GE Heat Exchanr To Supercooled
64	STOP VALVE
65	TSCI SENSOR
66	WJ53X22639 GE Electronic Expansion Valve
68	WP53X27026 GE Stop Valve Connection Tube
69	WP87X26759 GE Heat Exchanger Assembly
70	WP53X27094 GE Sv3 To Reversing Valve Connect
71	WP53X27045 GE Connection Tube
73	WP26X26958 GE Solenoid Valve Body
74	GEN WP53X27359
76	SV7 SOLENOID COIL
78	GEN WP53X27360
80	WP26X26970 GE Solenoid Coil SV8
82	GEN WP53X27039
83	WP53X27040 GE SV9 Reversing Valve Connector
84	SV9 SOLENOID COIL
85	WP26X26957 GE Valve Body Solenoid
86	WP53X27041 GE Compressor Connection Sv10
87	WP53X26995 GE SV9 Reversing Valve Connection
88	WP26X26753 GE Temperature Sensor
90	WP53X27020 GE Supercooled Tube Assembly
91	WP53X27043 GE Connection Tube SV181
92	GEN WP26X26953
94	WP53X27044 GE SV21 to Suction Connection Tube
95	WP53X27003 GE SV181 Accumulator Connection Valve
