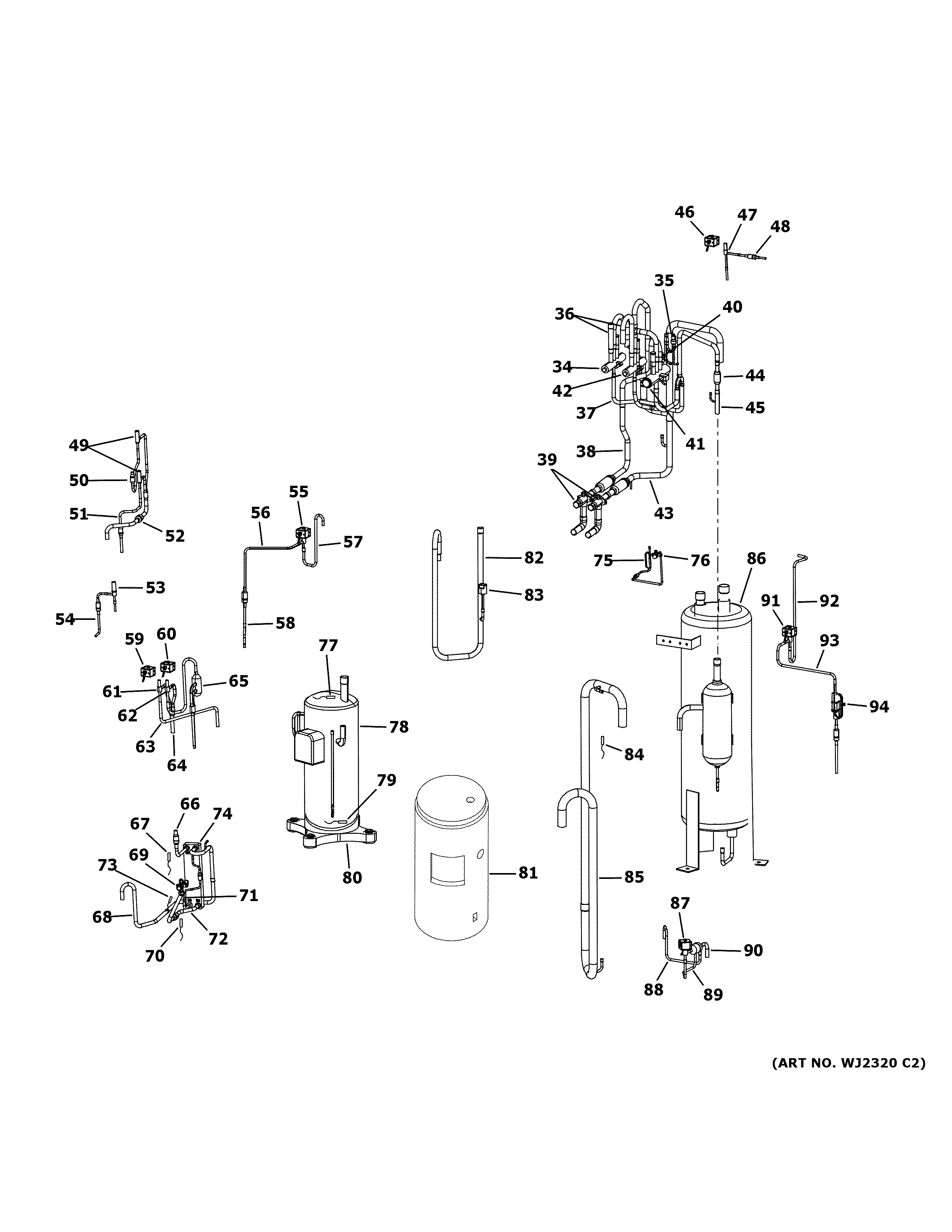

MVHR072ME2CA1 SEALED SYSTEM

MVHR072ME2CA1 SEALED SYSTEM

Written by

in

MVHR072ME2CA1 SEALED SYSTEM

Products

Position	Product
34	REVERSING VALVE
35	WJ26X22645 GE High Pressure Sensor
36	REVERSING VALVE TUBE C
37	REVERSING VALVE TUBE D
38	REVERSING VALVE TUBE E
39	STOP VALVE
40	WJ26X22652 GE Low Pressure Sensor
41	REVERSING VALVE
42	REVERSING VALVE
43	REVERSING VALVE TUBE S
44	WP26X26977 GE Check Valve
45	CHECK VALVE CONNECTION TUBE
46	WP26X26967 GE Solenoid Coil SV1
47	SV1 SOLENOID VALVE BODY
48	SV1 CONNECTION TUBE
49	WJ26X22560 GE Electronic Expansion Valve
50	EEV CONNECTION TUBE
51	LOWER LIQUID HEADER CONNECTION TUBE
52	UPPER LIQUID HEADER CONNECTION TUBE
53	UNLOADING VALVE
54	UNLOADING VALVE CONNECTION TUBE
55	SV9 SOLENOID COIL
57	WP53X26994 GE Compressor Connection T
58	WP53X26995 GE SV9 Reversing Valve Connection
60	SV7 SOLENOID COIL
62	WP26X26958 GE Solenoid Valve Body
63	SV3 TO REVERSING VALVE CONNECTION TUBE
64	SV3 TO HEAT EXCHANGER CONNECTION TUBE
65	SV7 CONNECTION TUBE
66	HEAT EXCHANGER TO SV3 CONNECTION TUBE
68	HEAT EXCHANGER TO SUPERCOOLED TUBE 2
69	WP26X27012 GE Stop Valve
70	TSCI SENSOR
71	WJ53X22639 GE Electronic Expansion Valve
72	STOP VALVE CONNECTION TUBE
73	TSCO SENSOR
74	HEAT EXCHANGER ASSEMBLY
75	GAS INJECTION TUBE
76	WJ27X22626 GE Charging Port
77	WP26X26971 GE Temperature Sensor
78	COMPRESSOR
79	WP26X26974 GE Toilet Sensor
80	WP27X26752 GE Compressor Heater
81	WP43X26961 GE Compressor Insulation
82	WP53X26051 GE Discharge Tube
83	GEN WP26X26962
84	WP26X26753 GE Temperature Sensor
85	WP53X26049 GE Suction Tube
86	WP53X26039 GE Accumulator
87	SOLENOID COIL
88	GEN WP53X26998
89	GEN WP26X26993
90	GEN WP53X26996
91	GEN WP26X26953
92	WP53X27004 GE Suction Connection Tube for SV181
93	WP26X26957 GE Valve Body Solenoid
94	WP53X27003 GE SV181 Accumulator Connection Valve
