MVHR120ME2CA1 SEALED SYSTEM

MVHR120ME2CA1 SEALED SYSTEM

Written by

in

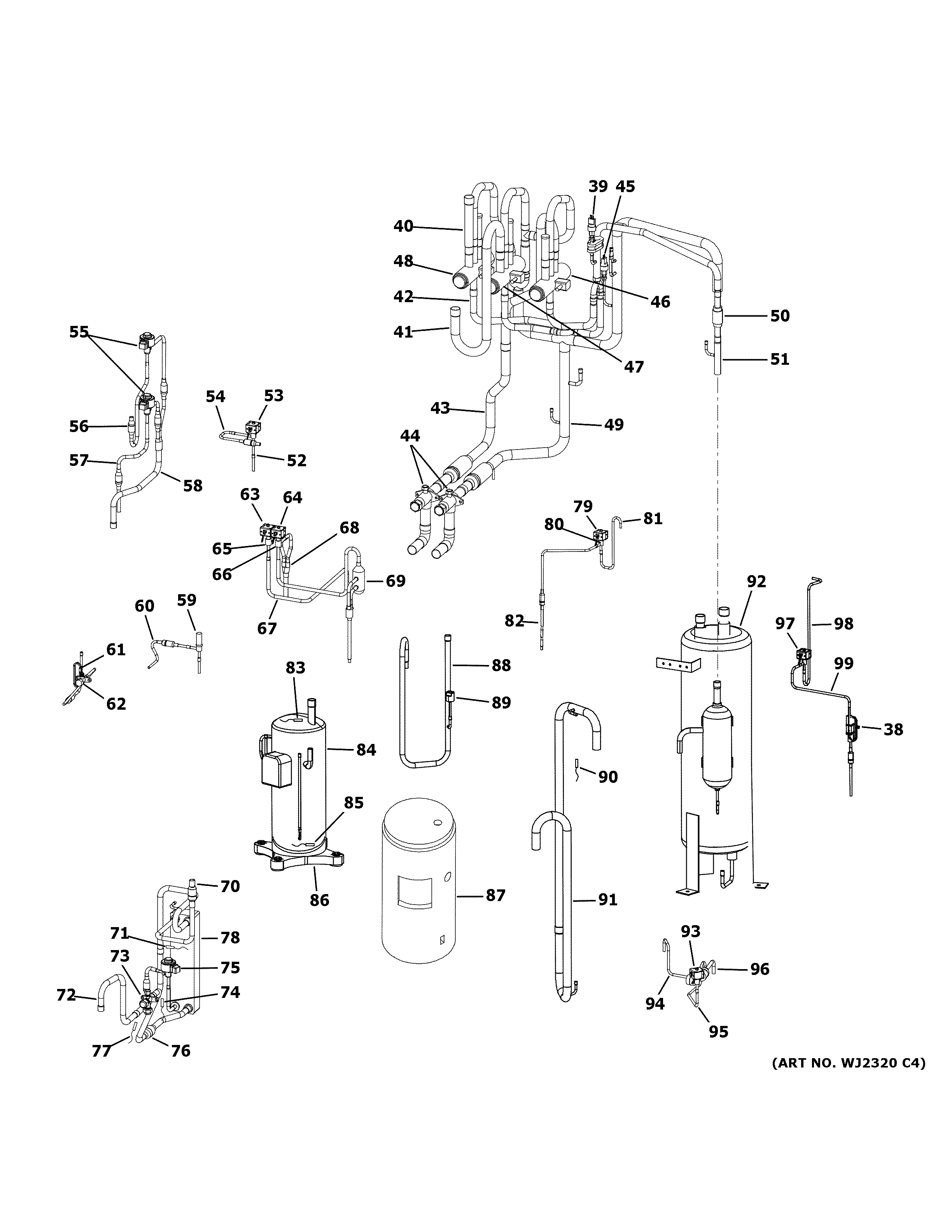

MVHR120ME2CA1 SEALED SYSTEM

Products

Position	Product
38	WP53X27003 GE SV181 Accumulator Connection Valve
39	WJ26X22645 GE High Pressure Sensor
40	WP53X27083 GE Reversing Valve Tube
41	REVERSING VALVE TUBE C
42	WP53X27081 GE Reversing Valve Tube
43	REVERSING VALVE TUBE E
44	STOP VALVE
45	WJ26X22652 GE Low Pressure Sensor
46	REVERSING VALVE
47	REVERSING VALVE
48	REVERSING VALVE
49	WP53X27092 GE Reversing Valve Tube
50	WP26X26977 GE Check Valve
51	CHECK VALVE CONNECTION TUBE
52	WP26X26967 GE Solenoid Coil SV1
53	SV1 SOLENOID VALVE BODY
54	SV1 CONNECTION TUBE
55	WP26X27075 GE Electronic Expansion Valve
56	EEV CONNECTION TUBE
57	WP53X27084 GE Dishwasher Upper Liquid Header Connection
58	WP53X27085 GE Lower Liquid Header Connection
59	UNLOADING VALVE
60	WP53X27080 GE Unloading Valve Tub Connection
61	WP53X27076 GE Gas Injection Tube
62	WJ27X22626 GE Charging Port
64	SV7 SOLENOID COIL
66	WP26X26958 GE Solenoid Valve Body
67	WP53X27087 GE Sv3 To Reversing Valve Connect
68	SV3 TO HEAT EXCHANGER CONNECTION TUBE
69	SV7 CONNECTION TUBE
70	HEAT EXCHANGER TO SV3 CONNECTION TUBE
72	WP53X27077 GE Heat Exchanger to Supercooled
73	STOP VALVE
74	TSCI SENSOR
75	WJ53X22639 GE Electronic Expansion Valve
76	WP53X27086 GE Connection Tube
77	TSCO SENSOR
78	WP87X26759 GE Heat Exchanger Assembly
79	SV9 SOLENOID COIL
81	WP53X26994 GE Compressor Connection T
82	WP53X26995 GE SV9 Reversing Valve Connection
83	WP26X26971 GE Temperature Sensor
84	COMPRESSOR
85	WP26X26974 GE Toilet Sensor
86	WP27X26752 GE Compressor Heater
87	WP43X26961 GE Compressor Insulation
88	WP53X26051 GE Discharge Tube
89	GEN WP26X26962
90	WP26X26753 GE Temperature Sensor
91	WP53X26049 GE Suction Tube
92	WP53X26039 GE Accumulator
93	SOLENOID COIL
94	GEN WP53X27365
95	GEN WP26X26993
96	WP53X27029 GE Sv14 Accumulator Tube
97	GEN WP26X26953
98	WP53X27004 GE Suction Connection Tube for SV181
99	WP26X26957 GE Valve Body Solenoid
