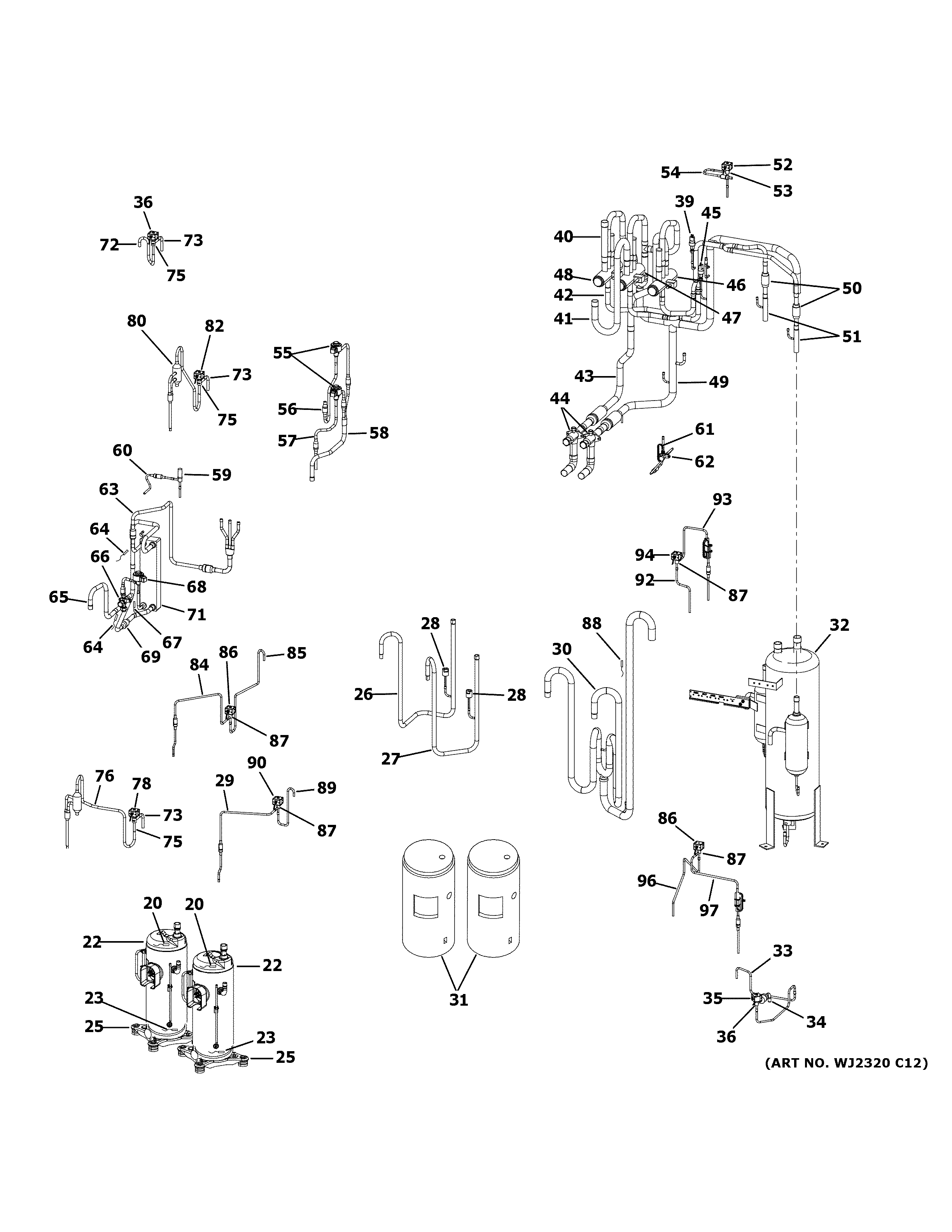

MVHR144ME4CA1 SEALED SYSTEM

Products

Position	Product
20	WP26X26971 GE Temperature Sensor
22	WP98X28243 GE Compressor
23	WP26X26974 GE Toilet Sensor
25	WP27X26752 GE Compressor Heater
26	DISCHARGE TUBE
27	WP53X27035 GE Discharge Tube
28	GEN WP26X26962
29	WP53X27041 GE Compressor Connection Sv10
30	SUCTION TUBE
31	WP43X26961 GE Compressor Insulation
32	ACCUMULATOR
33	SV14 TO SUCTION CONNECTION TUBE
34	SV14 TO ACCUMULATOR CONNECTION TUBE
35	GEN WP26X26993
36	SOLENOID COIL
39	WJ26X22645 GE High Pressure Sensor
40	WP53X27083 GE Reversing Valve Tube
41	REVERSING VALVE TUBE C
42	WP53X27081 GE Reversing Valve Tube
43	REVERSING VALVE TUBE E
44	STOP VALVE
45	WJ26X22652 GE Low Pressure Sensor
46	REVERSING VALVE
47	REVERSING VALVE
48	REVERSING VALVE
49	REVERSING VALVE TUBE S
50	WP26X26977 GE Check Valve
51	CHECK VALVE CONNECTION TUBE
52	WP26X26967 GE Solenoid Coil SV1
53	SV1 SOLENOID VALVE BODY
54	SV1 CONNECTION TUBE
55	WP26X27075 GE Electronic Expansion Valve
56	WP53X28373 GE Evaporator Connection Tube
57	WP53X28374 GE Liquid Header Upper Connection
58	WP53X27085 GE Lower Liquid Header Connection
59	UNLOADING VALVE
60	WP53X27080 GE Unloading Valve Tub Connection
61	WP53X27076 GE Gas Injection Tube
62	WJ27X22626 GE Charging Port
63	HEAT EXCHANGER TO SV3 CONNECTION TUBE
64	TSCO SENSOR
65	WP53X27077 GE Heat Exchanger to Supercooled
66	STOP VALVE
67	TSCI SENSOR
68	WJ53X22639 GE Electronic Expansion Valve
69	WP53X27086 GE Connection Tube
71	WP87X26759 GE Heat Exchanger Assembly
72	WP53X27094 GE Sv3 To Reversing Valve Connect
73	WP53X27045 GE Connection Tube
75	WP26X26958 GE Solenoid Valve Body
76	GEN WP53X27359
78	SV7 SOLENOID COIL
80	GEN WP53X27047
82	WP26X26970 GE Solenoid Coil SV8
84	GEN WP53X27039
85	WP53X27040 GE SV9 Reversing Valve Connector
86	SV9 SOLENOID COIL
87	WP26X26957 GE Valve Body Solenoid
88	WP26X26753 GE Temperature Sensor
89	WP53X26995 GE SV9 Reversing Valve Connection
90	GEN WP26X26965
92	WP53X27020 GE Supercooled Tube Assembly
93	WP53X27043 GE Connection Tube SV181
94	GEN WP26X26953
96	WP53X27044 GE SV21 to Suction Connection Tube
97	WP53X27003 GE SV181 Accumulator Connection Valve
