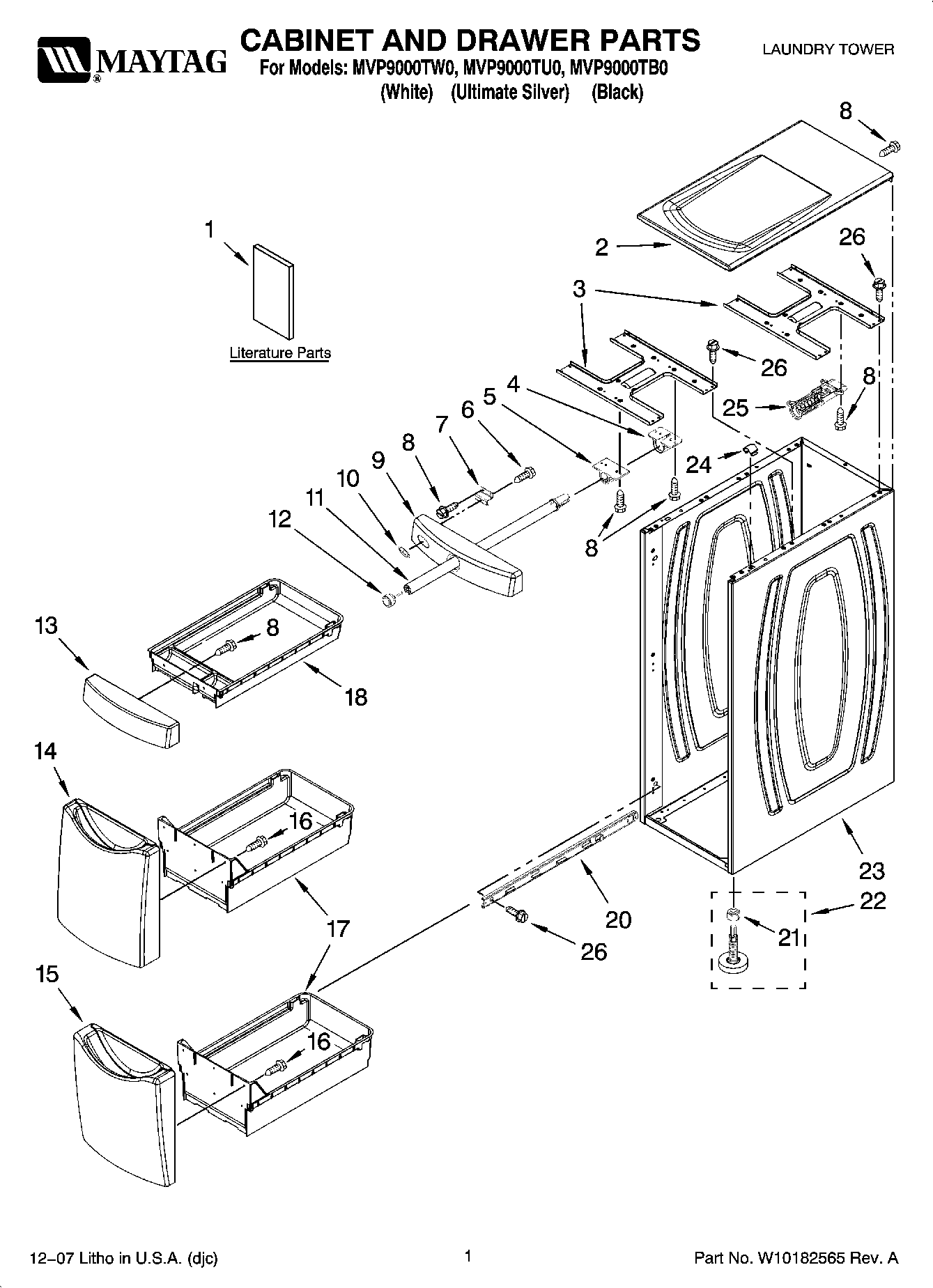

MVP9000TB0 01 – CABINET AND DRAWER PARTS

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
	MAY 8212605
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	PAINT, TOUCH-UP (1/2OZ. BLACK)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
1	MAY W10101295
2	MAY W10064060
2	MAY W10064030
2	MAY W10011320
3	MAY W10070580
4	Bushing Sleeve Rear, Stop
5	Bushing Sleeve Front
6	MAY 489473
7	MAY W10011880
8	SCREW
9	MAY W10101268
9	MAY W10101266
9	MAY W10101267
10	MAY W10101253
11	MAY W10011750
12	End Cap, Pogo Bar
13	MAY W10103180
13	MAY W10103150
13	MAY W10011490
14	MAY W10070270
14	MAY W10070240
14	MAY W10011480
15	MAY W10070180
15	MAY W10011470
15	MAY W10070210
16	MAY W10113962
17	MAY W10011410
18	MAY W10011500
20	MAY W10011420
21	Nut, 3/8-16
22	MAY 8563585
24	MAY W10011660
25	Push Mechanism Assembly
26	MAY 3400842
