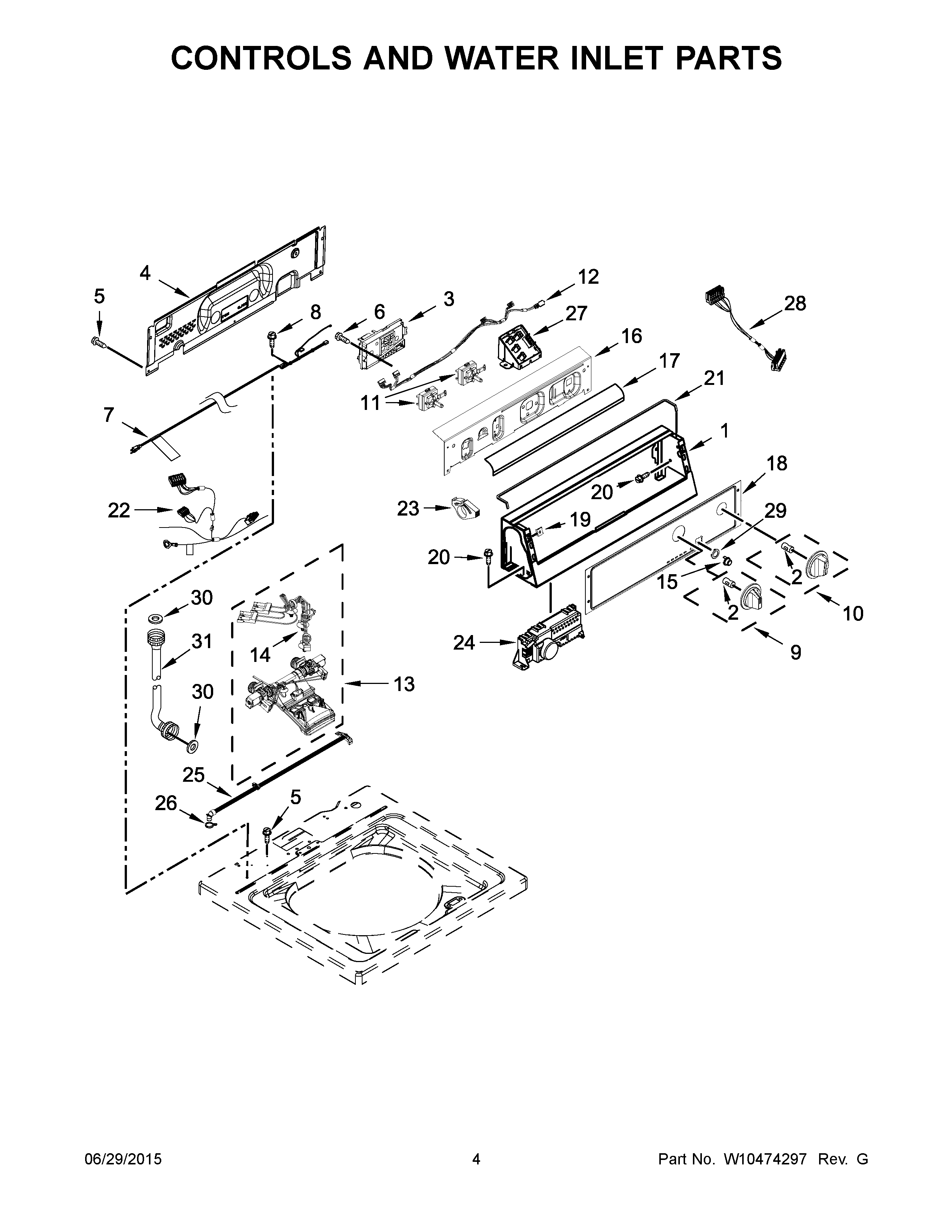

MVW18CSAWW0 03 – CONTROLS AND WATER INLET PARTS
Written by
in
MVW18CSAWW0 03 – CONTROLS AND WATER INLET PARTS
Products
Position
Product
1
CONSOLE MDE20PDAGW0
2
MAY W10140928
3
MAY W10571743
4
MAY W10461159
5
MAY 1157158
6
SCREW,8-18 X 3/8
7
MAY W10482500
8
Screw, 10-32 x 5/8
9
MAY W10133504
10
MAY W10461097
11
SWITCH, ROTARY ENCODER
12
MAY W10291184
13
MAY W10486031
14
MAY W10472990
15
MAY W10461117
16
MAY W10461067
17
MAY W10133515
18
MAY W10461103
19
NUT, "U"
20
SCREW
21
Foam Seal
22
MAY W10480947
23
CLAMP, HOSE
24
MAY W10482833
25
MAY W10461189
26
MAY W10117298
27
MAY W10491734
28
MAY W10514456
29
BEZEL – PTS
30
ACCESSORY PARTS, WASHER, HOSE
31A
MAY W10458856
31
MAY W10458855
←
