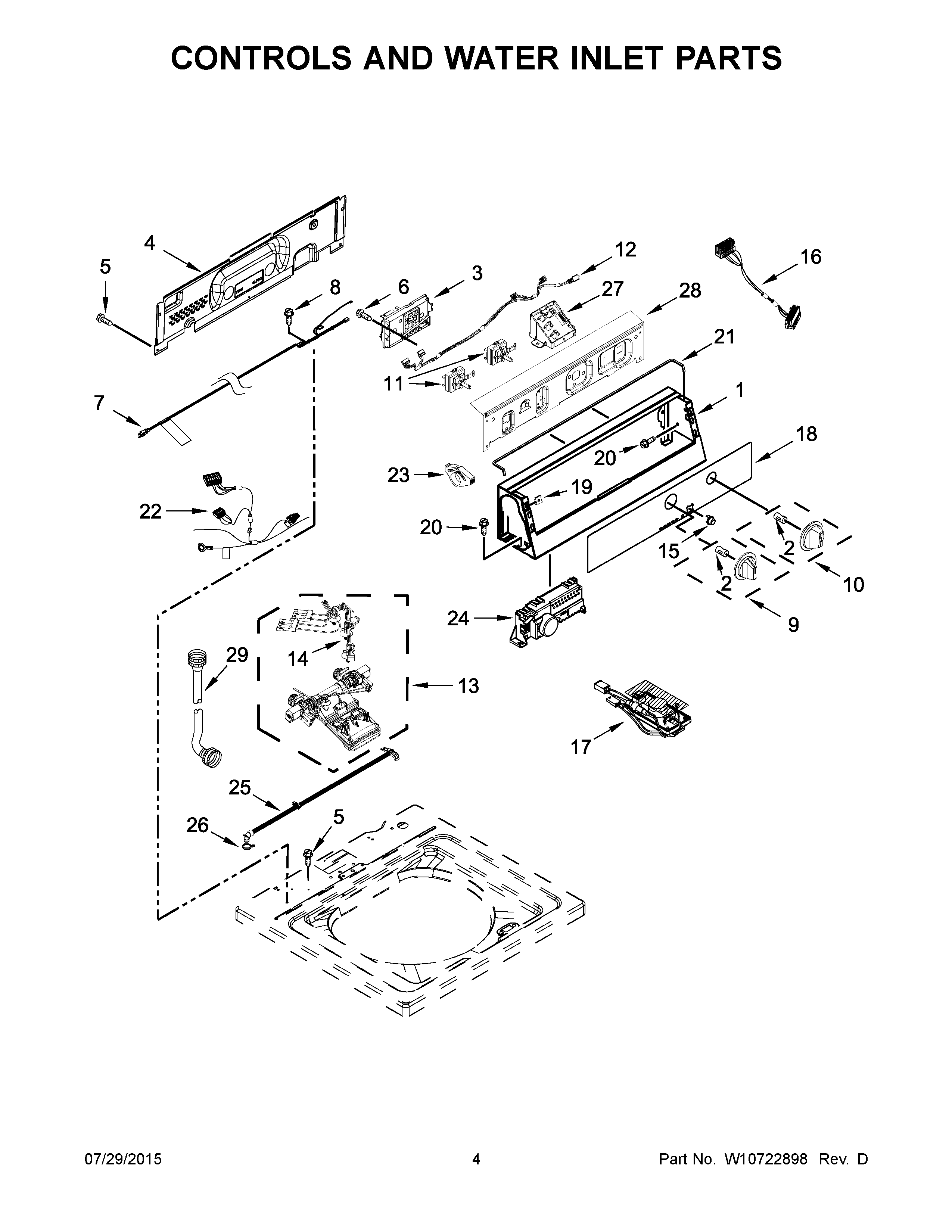

MVW18CSBGW0 03 – CONTROLS AND WATER INLET PARTS

MVW18CSBGW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

MVW18CSBGW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD ADAPTER (BRITISH)
NI10A CORD LOCK
NIMAY W10476818
NI10A CORD ADAPTER (EUROPEAN)
1CONSOLE MDE20PDAGW0
2MAY W10140928
3MAY W10571742
4MAY W10461159
5MAY 1157158
6SCREW,8-18 X 3/8
7MAY W10520399
8Screw, 10-32 x 5/8
9MAY W10133504
10MAY W10461097
11SWITCH, ROTARY ENCODER
12MAY W10291184
13MAY W10514372
14MAY W10520396
15MAY W10461117
16MAY W10514456
17MAY W10540620
18MAY W10506030
19NUT, "U"
20SCREW
21Foam Seal
22MAY W10567152
23CLAMP, HOSE
24MAY W10482834
25MAY W10461189
26MAY W10117298
27MAY W10491734
28MAY W10698210
29AHOSE, WATER INLET (COLD)
29HOSE, WATER INLET (HOT)
