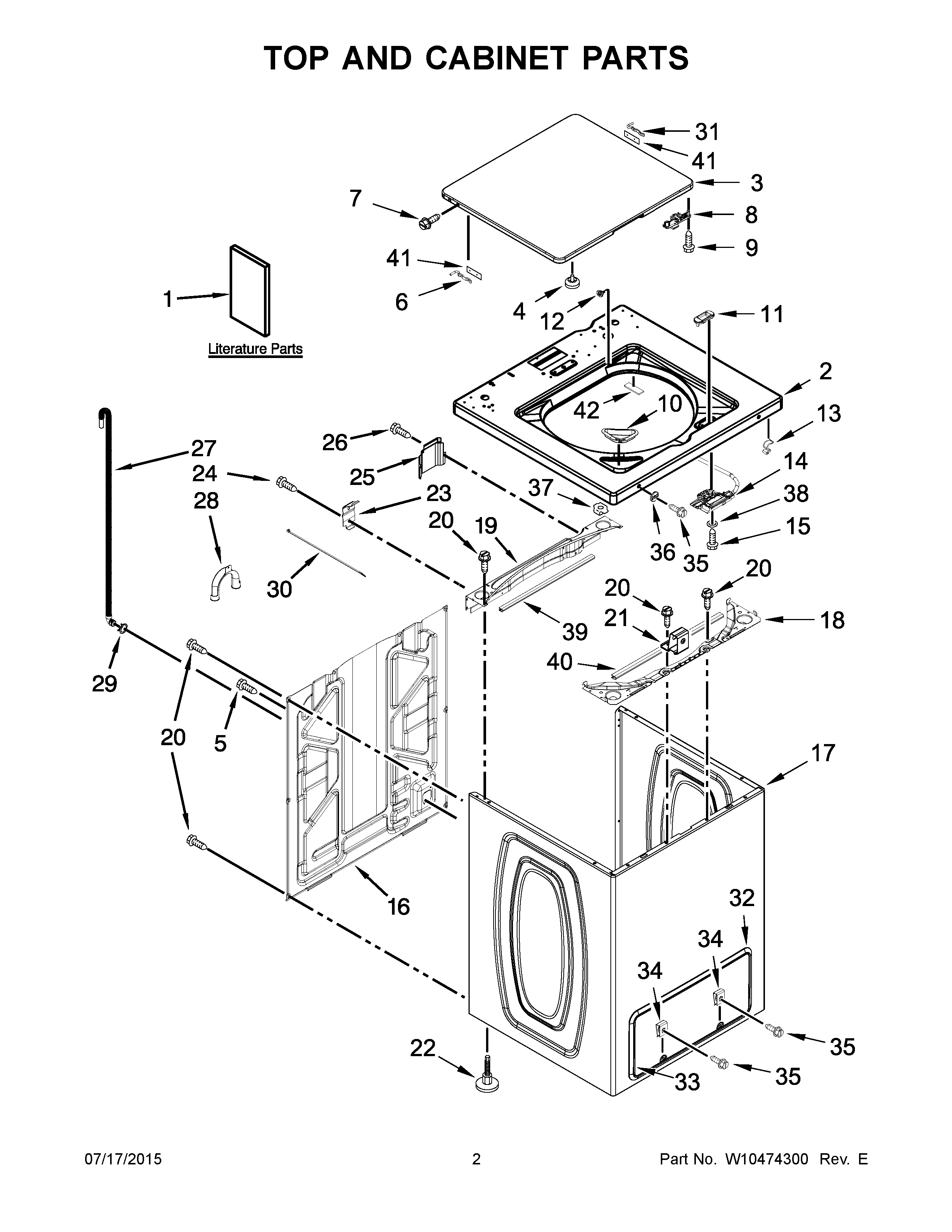

MVW18MNAGW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10474265
1A	MAY W10531648
1B	MAY W10554755
1C	MAY W10559056
2	MAY W10461167
3	MAY W10461179
4	MAY W10525268
5	SCREW
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10515627
11	MAY W10392041
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10482837
15	MAY W10588613
16	PANEL, REAR
17	MAY W10464751
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10461182
22	MAY W10397767
23	MAY W10461176
24	SCREW
25	MAY W10461180
26	Screw, 10-32 x 5/8
27	HOSE, OUTER DRAIN ASSEMBLY
28	MAY W10280024
29	MAY 356138
30	TIE, CABLE
31	HINGE, LID (RIGHT HAND)
32	MAY W10464749
33	MAY W10464750
34	MAY 3400915
35	MAY W10486616
36	MAY W10461181
37	NUT, CAGE
38	MAY W10318627
39	BRACE-GUARD, CABINET REAR TOP
40	BRACE-GUARD, CABINET FRONT TOP
41	Pad, Lid Hinge
42	MAY W10684257
