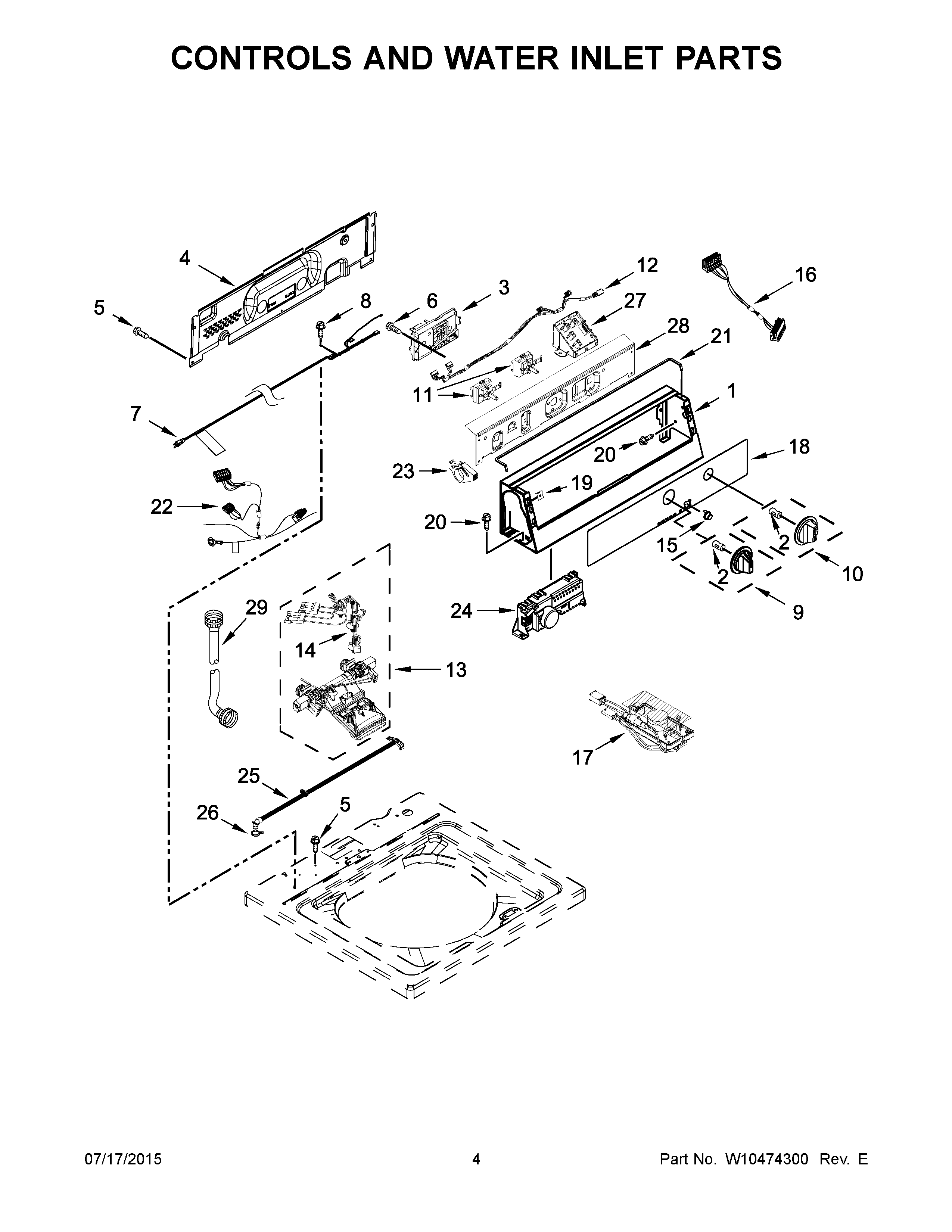

MVW18MNAGW0 03 – CONTROLS AND WATER INLET PARTS

MVW18MNAGW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

MVW18MNAGW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIMAY W10476818
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD LOCK
NILINER (NOT A SERVICEABLE PART)
1CONSOLE
2MAY W10140928
3MAY W10571742
4MAY W10461159
5MAY 1157158
6SCREW,8-18 X 3/8
7MAY W10520399
8Screw, 10-32 x 5/8
9MAY W10133504
10MAY W10461097
11SWITCH, ROTARY ENCODER
12MAY W10291184
13MAY W10514372
14MAY W10520396
15MAY W10461117
16MAY W10514456
17MAY W10540620
18MAY W10506028
19NUT, "U"
20SCREW
21SEAL-FOAM (IEC)
22MAY W10567152
23CLAMP, HOSE
24MAY W10482834
25MAY W10461189
26MAY W10117298
27MAY W10491734
28MAY W10698207
29HOSE, WATER INLET (HOT)
29AHOSE, WATER INLET (COLD)
