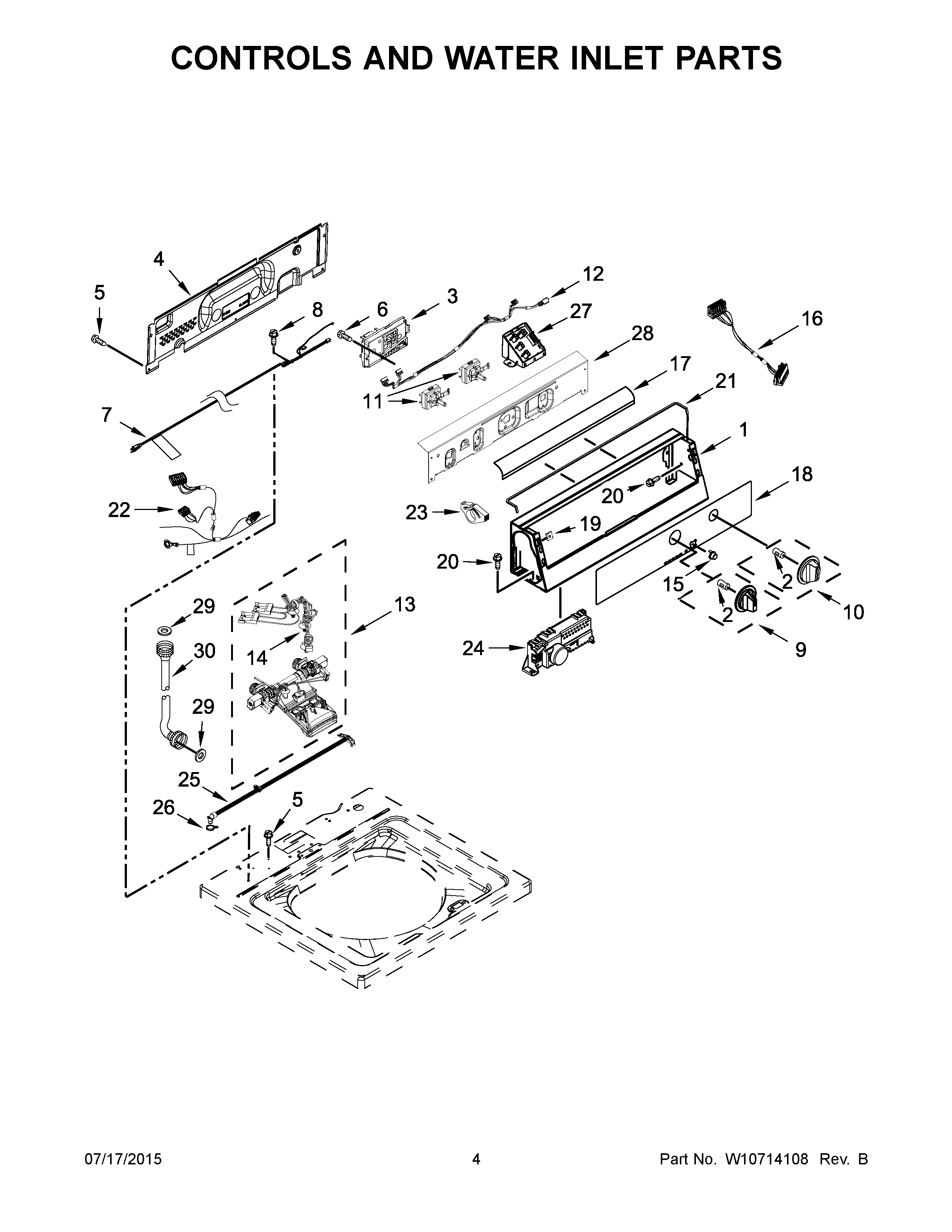

MVW18MNBWW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	CONSOLE
2	MAY W10140928
3	MAY W10721255
4	MAY W10461159
5	MAY 1157158
6	SCREW,8-18 X 3/8
7	MAY W10482500
8	Screw, 10-32 x 5/8
9	MAY W10133504
10	MAY W10461097
11	SWITCH, ROTARY ENCODER
12	MAY W10291184
13	MAY W10486031
14	MAY W10472990
15	MAY W10461117
16	MAY W10514456
17	MAY W10133515
18	MAY W10461102
19	NUT, "U"
20	SCREW
21	SEAL-FOAM (IEC)
22	MAY W10480947
23	CLAMP, HOSE
24	MAY W10482833
25	MAY W10461189
26	MAY W10117298
27	MAY W10491734
28	MAY W10461066
29	ACCESSORY PARTS, WASHER, HOSE
30	MAY W10458855
30A	MAY W10458856
