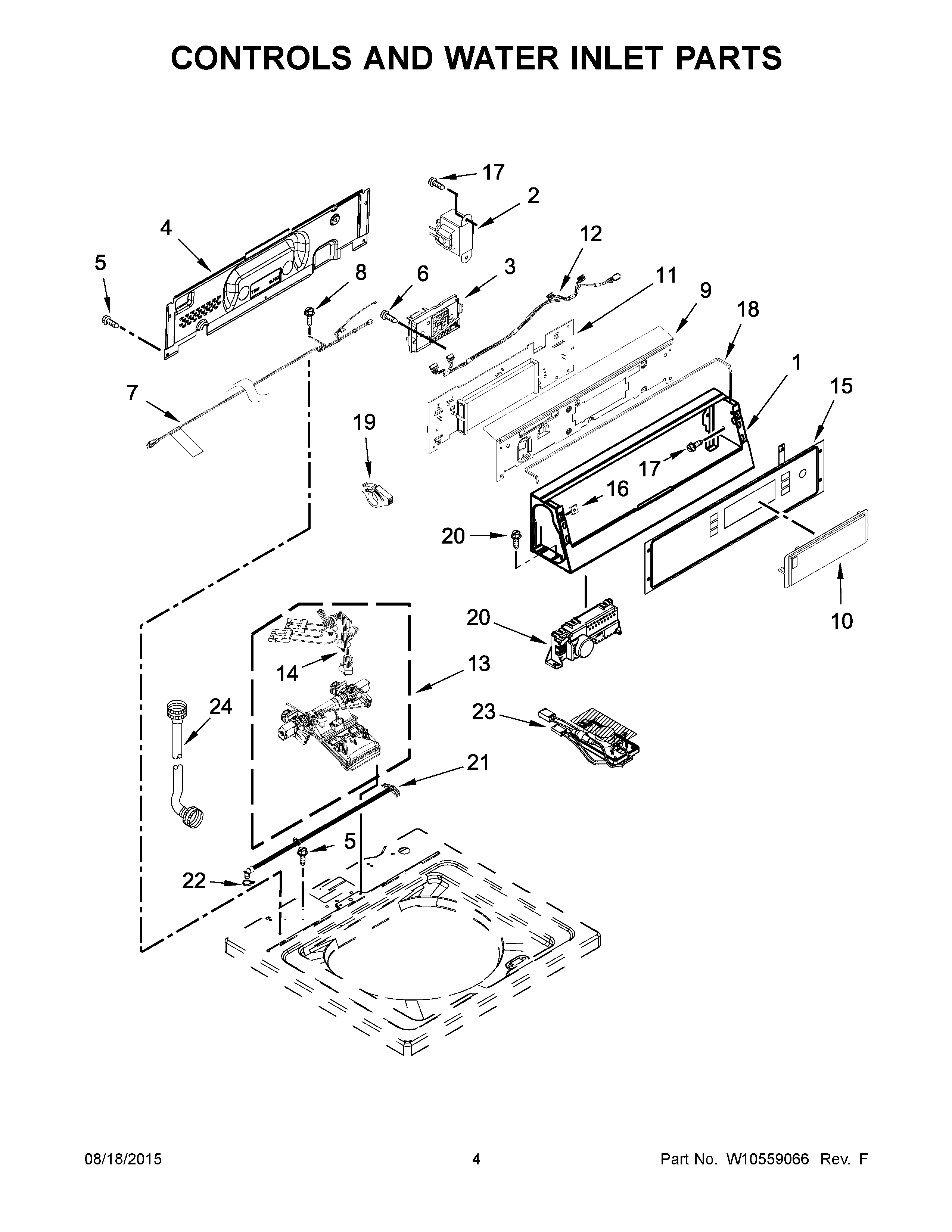

MVW18PDAGW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD LOCK
NI	MAY W10476818
NI	LINER (NOT A SERVICEABLE PART)
1	CONSOLE MDE20PDAGW0
2	TRANSFORMER, 240-22.5 VAC
3	MAY W10491729
4	MAY W10461159
5	MAY 1157158
6	SCREW,8-18 X 3/8
7	MAY W10520399
8	Screw, 10-32 x 5/8
9	MAY W10698212
10	COVER, DISPLAY
11	MAY W10647075
12	MAY W10567153
13	MAY W10514372
14	MAY W10520396
15	MAY W10506029
16	NUT, "U"
17	SCREW
18	Foam Seal
19	CLAMP, HOSE
20	MAY W10482834
21	MAY W10461189
22	MAY W10117298
23	MAY W10540623
24	HOSE, WATER INLET (HOT)
24A	HOSE, WATER INLET (COLD)
