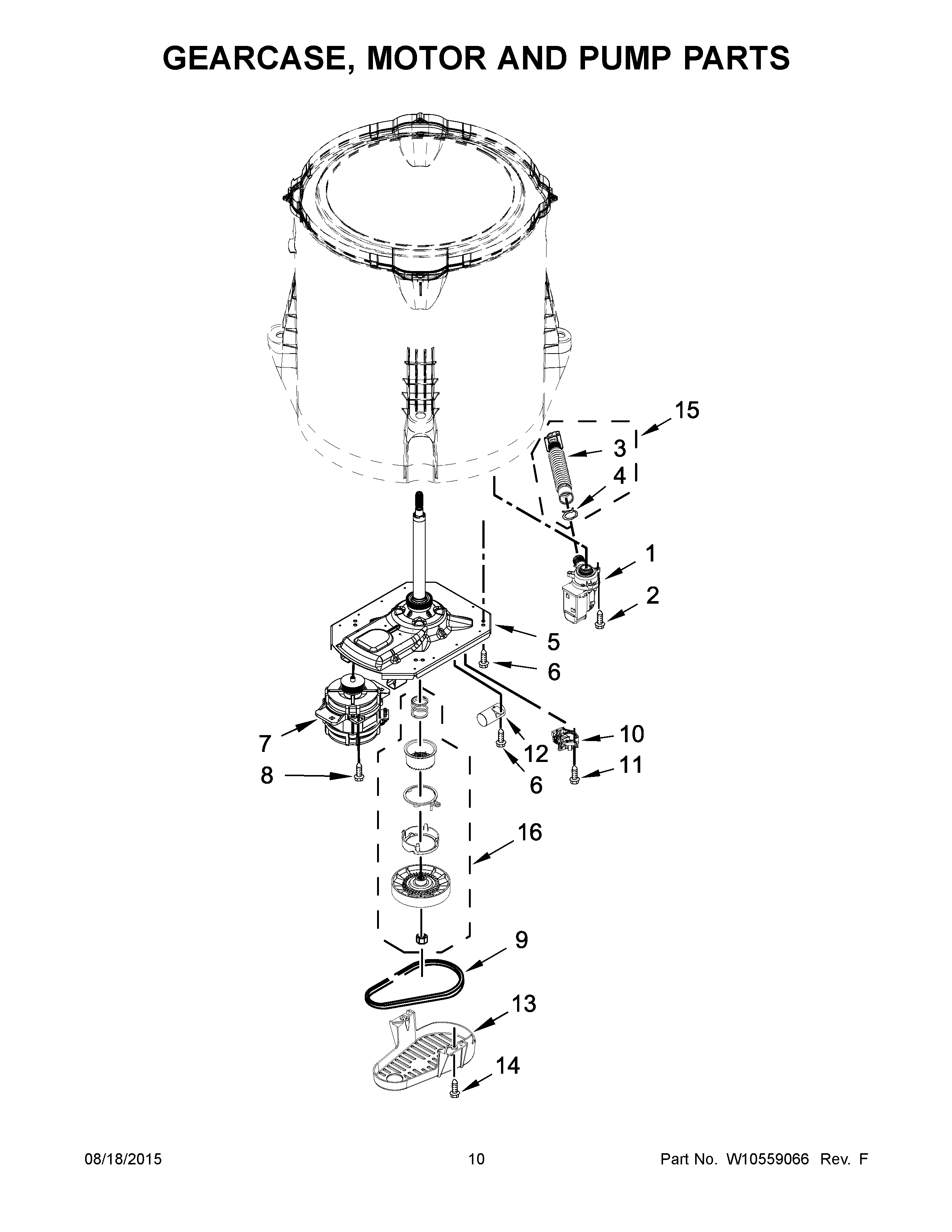

MVW18PDAGW0 06 – GEARCASE, MOTOR AND PUMP PARTS

MVW18PDAGW0 06 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVW18PDAGW0 06 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	PUMP ASSEMBLY, DRAIN
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	MAY W10521293
6	SCREW
7	MAY W10490820
8	BOLT, COUNTERWEIGHT
9	BELT, DRIVE
10	MAY W10424309
11	SCREW
12	MAY W10456703
13	MAY W10427633
14	SCREW
15	HOSE, INNER DRAIN ASSEMBLY
16	SPLUTCH KIT (50 HZ)
