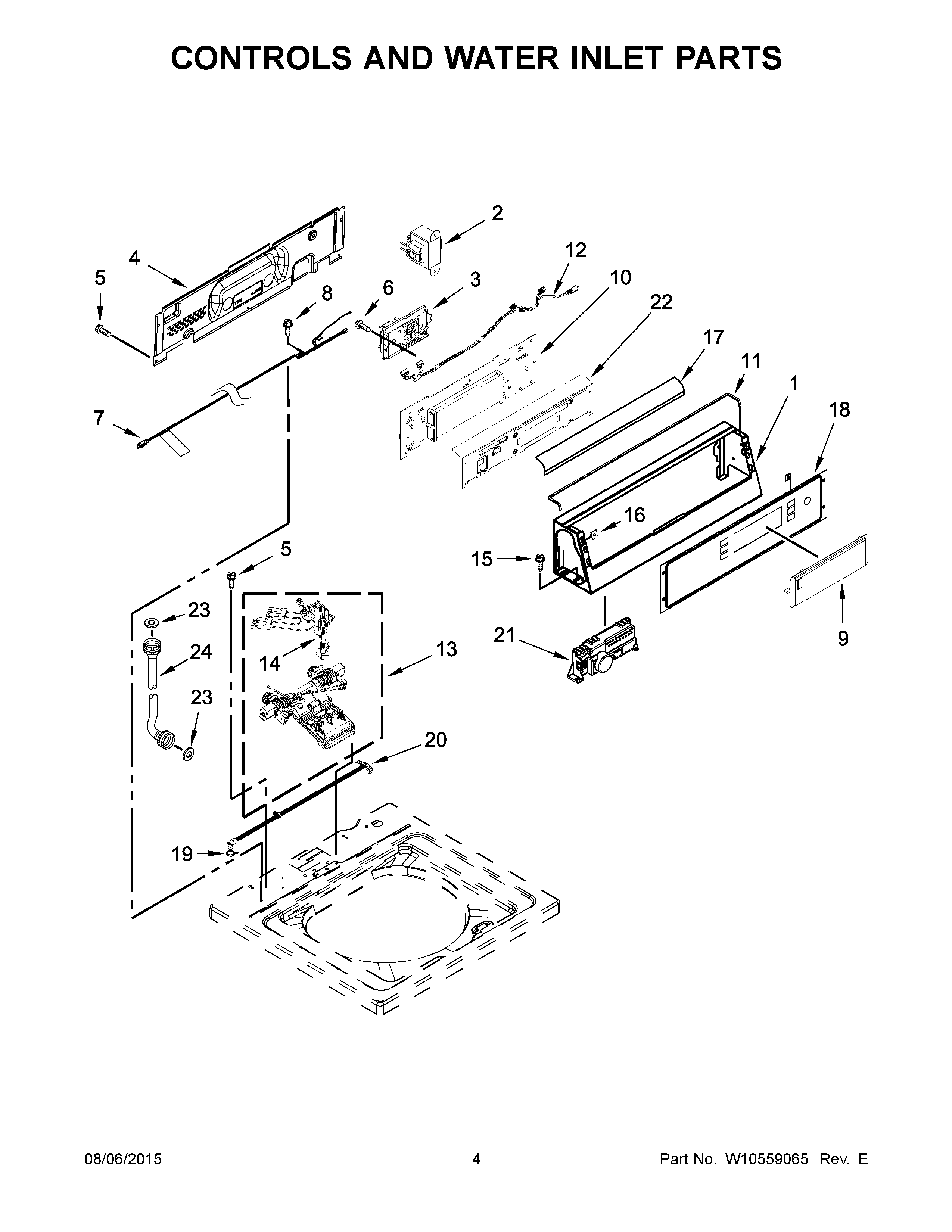

MVW18PDAWW0 03 – CONTROLS AND WATER INLET PARTS

MVW18PDAWW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

MVW18PDAWW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	CONSOLE MDE20PDAGW0
2	MAY W10131839
3	MAY W10491728
4	MAY W10461159
5	MAY 1157158
6	SCREW,8-18 X 3/8
7	MAY W10472992
8	Screw, 10-32 x 5/8
9	COVER, DISPLAY
10	MAY W10647075
11	Foam Seal
12	MAY W10480949
13	MAY W10486031
14	MAY W10472990
15	SCREW
16	NUT, "U"
17	MAY W10133515
18	MAY W10461104
19	MAY W10117298
20	MAY W10461189
21	MAY W10482833
22	MAY W10461068
23	ACCESSORY PARTS, WASHER, HOSE
24A	MAY W10458856
24	MAY W10458855
