MVW18PDBGW0 04 – METER CASE PARTS – Aparts

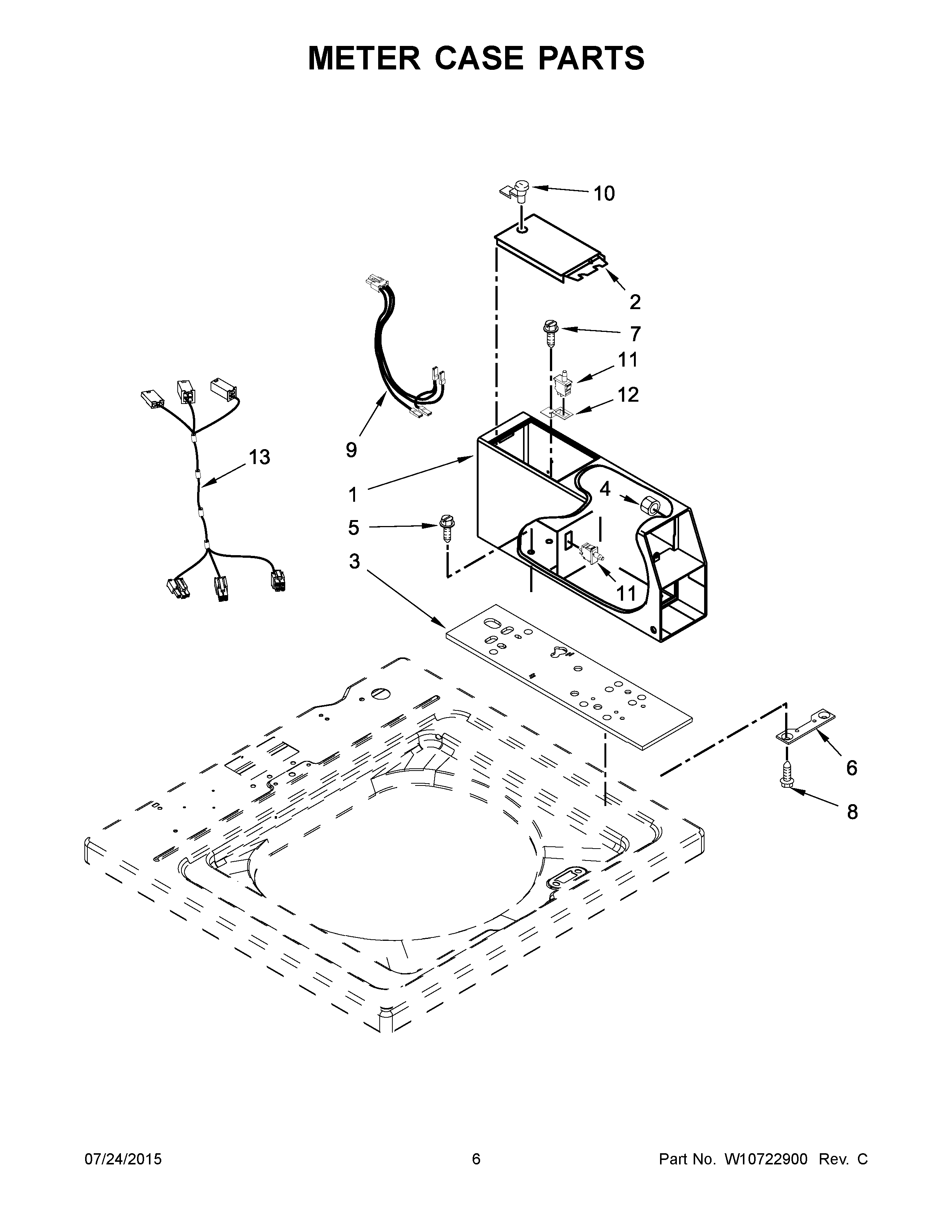

MVW18PDBGW0 04 – METER CASE PARTS

Products

Position	Product
1	METER CASE
2	ASSEMBLY, SERVICE DOOR
3	CUSHION, METER CASE
4	MAY W10139060
5	BOLT
6	MAY 3347825
7	MAY W10139210
8	SCREW
9	MAY W10211244
10	ASSEMBLY, CAM & SECURITY LOCK
11	SWITCH, VAULT SERVICE DOOR
12	MAY W10133508
13	HARNESS, COIN EXTENDER
