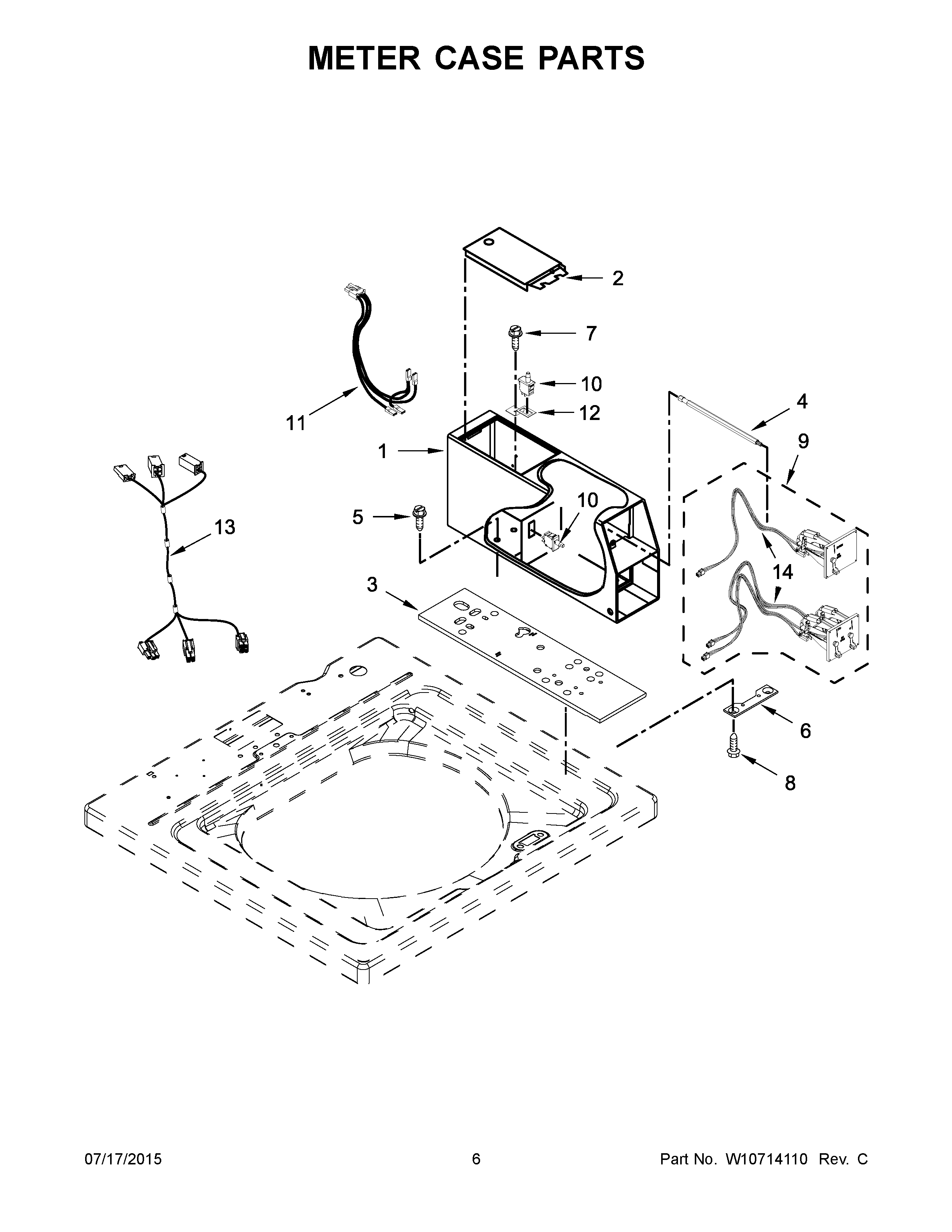

MVW18PDBWW0 04 – METER CASE PARTS

MVW18PDBWW0 04 – METER CASE PARTS

Written by

in

MVW18PDBWW0 04 – METER CASE PARTS

Products

PositionProduct
1METER CASE
2ASSEMBLY, SERVICE DOOR
3CUSHION, METER CASE
4MAY W10137319
5BOLT
6MAY 3347825
7MAY W10139210
8SCREW
9AASSEMBLY, DUAL COIN DROP, MDE20PDAZW0
9ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
10MAY W10131838
11MAY W10211244
12MAY W10133508
13MAY W10491633
14ACOIN SENSOR ASSY, COIN 2 (BLACK)
14COIN-OPTIC SENSOR ASSEMBLY (WHITE)
