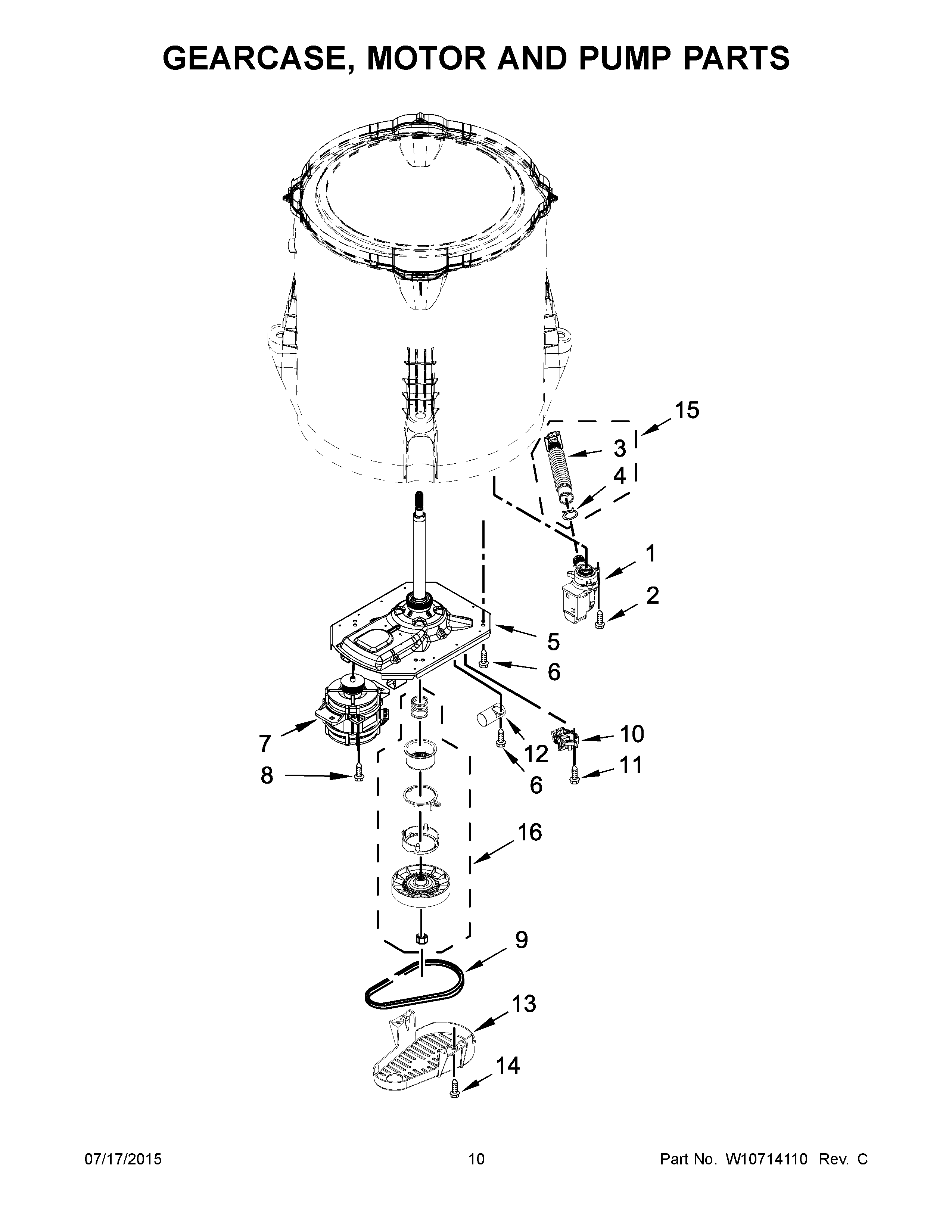

MVW18PDBXW0 06 – GEARCASE, MOTOR AND PUMP PARTS

MVW18PDBXW0 06 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVW18PDBXW0 06 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10276397
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	MAY W10521293
6	SCREW
7	MAY W10490819
8	BOLT, COUNTERWEIGHT
9	MAY W10006384
10	MAY W10389471
11	SCREW
12	MAY W10625046
13	MAY W10427633
14	SCREW
15	HOSE, INNER DRAIN ASSEMBLY
16	MAY W10721967
