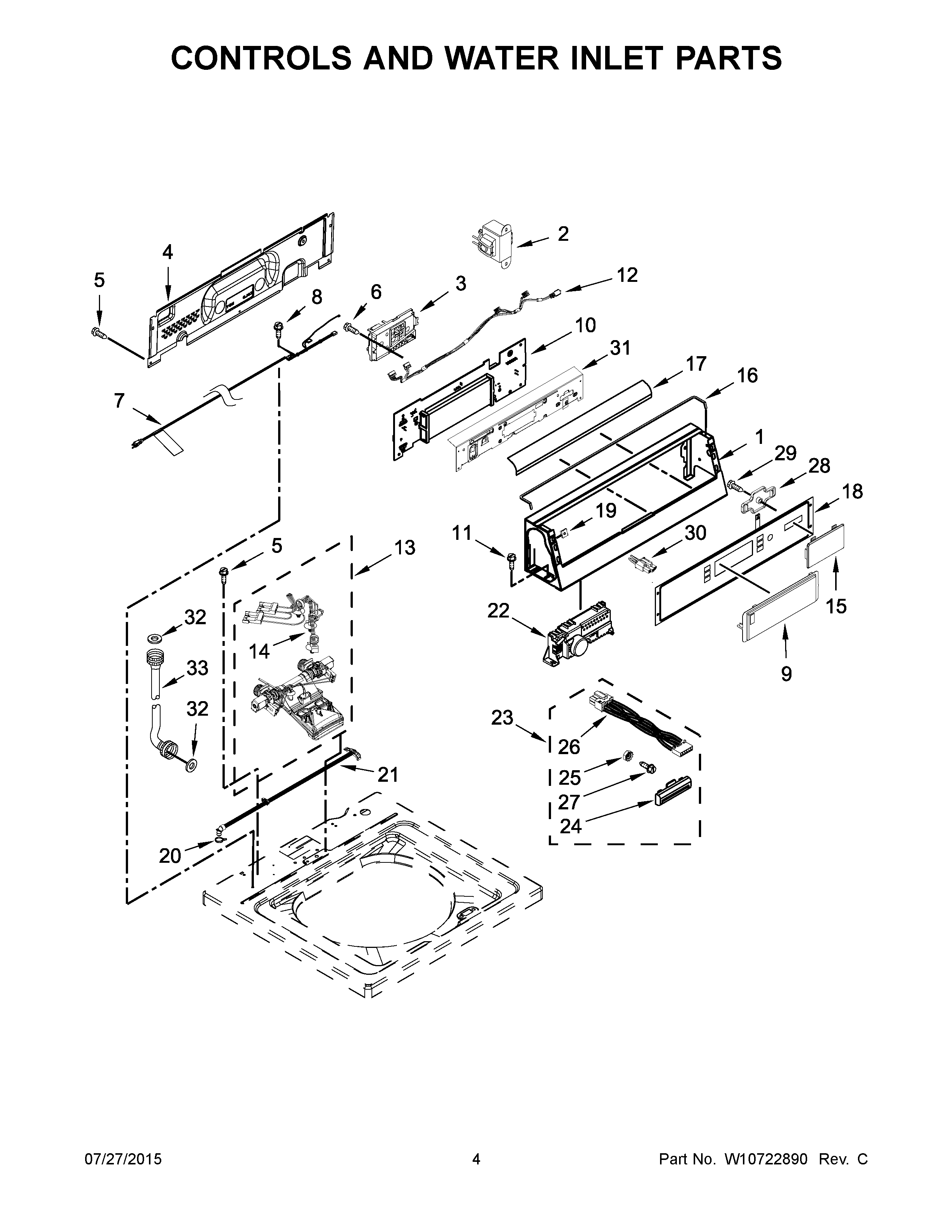

MVW18PRBWW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	CONSOLE
2	MAY W10131839
3	MAY W10721254
4	MAY W10461159
5	MAY 1157158
6	SCREW,8-18 X 3/8
7	MAY W10472992
8	Screw, 10-32 x 5/8
9	COVER, DISPLAY
10	MAY W10647074
11	SCREW
12	MAY W10480949
13	MAY W10486031
14	MAY W10472990
15	COVER, CARD READER
16	SEAL-FOAM (IEC)
17	MAY W10133515
18	MAY W10461105
19	NUT, "U"
20	CLAMP, HOSE
21	MAY W10461189
22	MAY W10482833
23	CARD READER, CONVERSION KIT
24	BEZEL
25	NUT
26	CARD READER, HARNESS
27	SCREW
28	RETAINER, CARD READER COVER
29	MAY 3400618
30	JUMPER, SWITCH SERVICE/VAULT
31	MAY W10461069
32	ACCESSORY PARTS, WASHER, HOSE
33A	MAY W10458856
33	MAY W10458855
