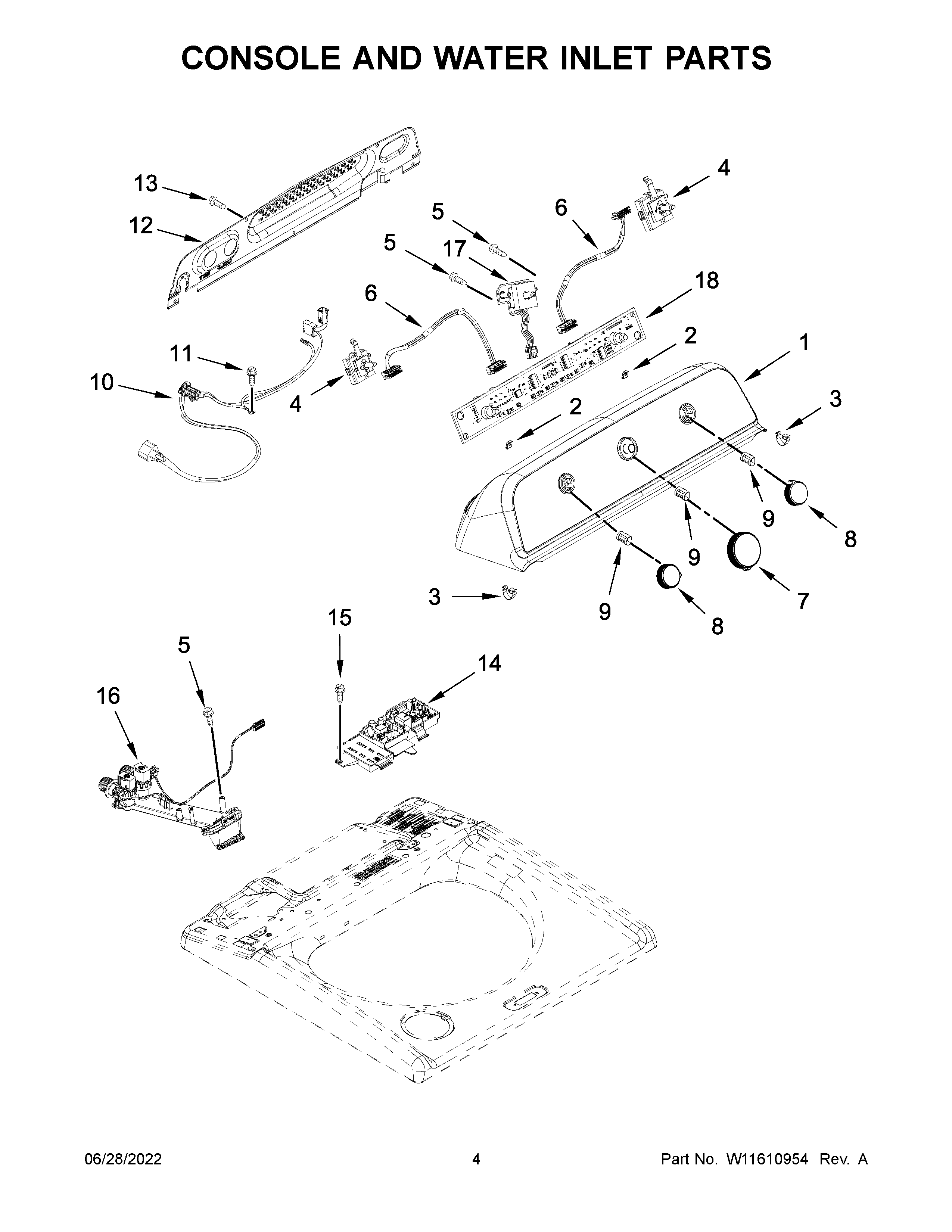

MVW4505MW0 03 – CONSOLE AND WATER INLET PARTS

MVW4505MW0 03 – CONSOLE AND WATER INLET PARTS

Written by

in

MVW4505MW0 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY
2W11213336 Whirlpool Nut
3WP8312709 Whirlpool Endcap Clip
4W11626075 Whirlpool Electronic Control Board + Core
5WP9740848 Whirlpool Dishwasher Screw
6W11736787 Whirlpool Wire Harness
7W11675852 Whirlpool Dryer Control Knob
8WP688805 Whirlpool Spring Clip
9W11625514 Whirlpool Knob
10WP8536939 Whirlpool Spring Clip
11W11513259 Whirlpool Power Cord Assembly
12W10846509 Whirlpool Screw
13W10611544 Whirlpool Rear Panel
14W11685943 Whirlpool Screw
15W11626074-includeCORE Whirlpool W11626074 Washer Electronic Control Board + Core
16WP693995 Whirlpool Screw
17W11513255 Whirlpool Valve Assembly
18W11626077-includeCORE Whirlpool W11626077 Washing Machine Electronic Control Board + Core
19W10859568 Whirlpool Cycle Switch
