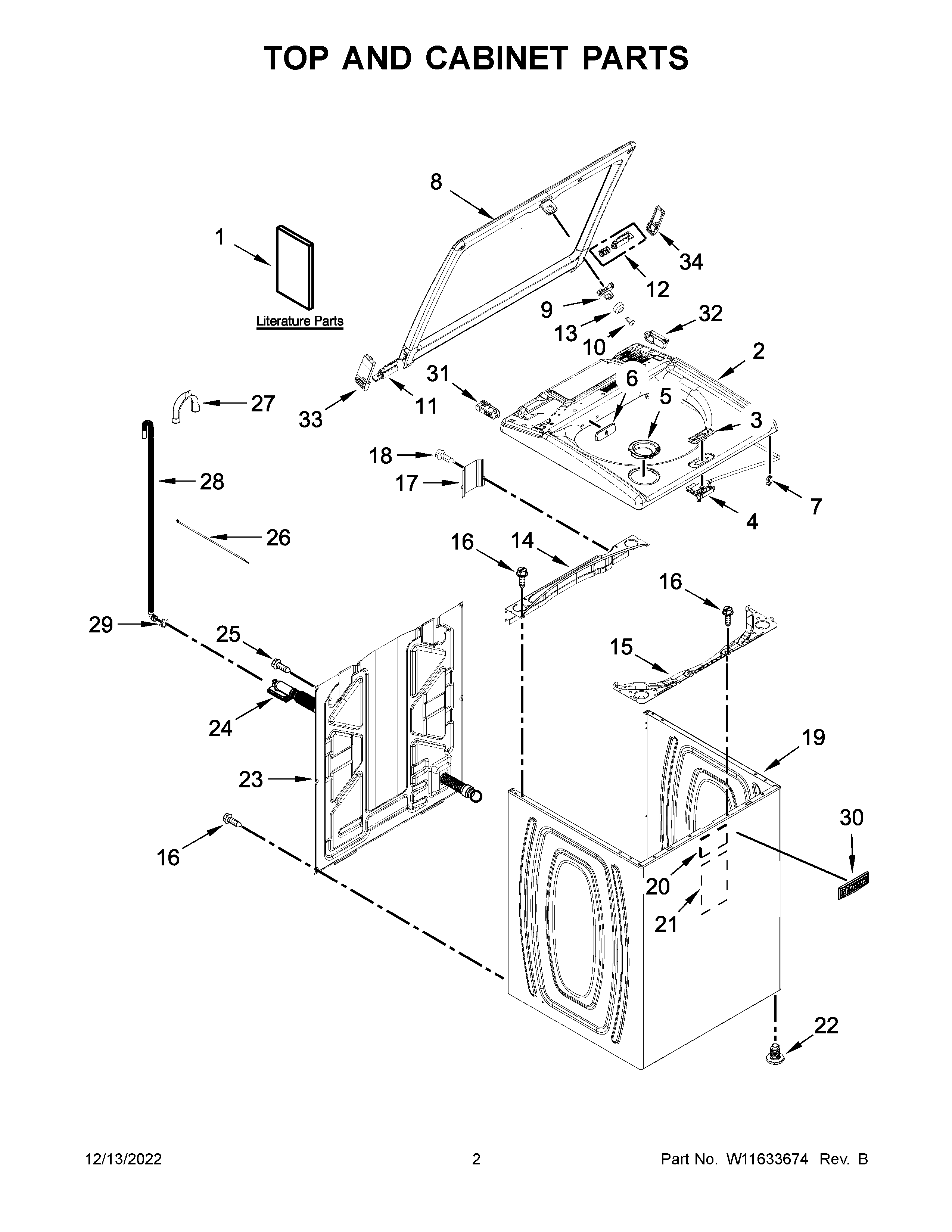

MVW5430MW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1C	TECH SHEET
1B	QUICK START GUIDE
1	OWNERS MANUAL
2	W11513254 Whirlpool Top
3	W11643703 Whirlpool Bezel
4	LATCH
5	W11234069 Whirlpool Dispenser
6	W11396263 Whirlpool Bezel
7	WP90016 Whirlpool Clip
8	W11627419 Whirlpool Lid Assembly
9	COVER
10	COVER
11	HINGE
12	HINGE
13	BUMPER, DOOR
14	W11712680 Whirlpool Commercial Part Brace
15	W11381327 Whirlpool Brace
16	W11568617 Whirlpool Screw
17	W10676061 Whirlpool Cover Assembly
18	W10846509 Whirlpool Screw
19	W10676680 Whirlpool Cabinet
20	WP8564458 Whirlpool Absorber
21	W11197416 Whirlpool Absorber
22	W11213957 Whirlpool Dishwasher Leveling Leg
23	W11486091 Whirlpool Rear Panel
24	W10899966 Whirlpool Hose Assembly
25	WP9740848 Whirlpool Dishwasher Screw
26	WPW10339879 Whirlpool Wire Tie
27	WPW10280024 Whirlpool Retainer
28	W11244231 Whirlpool Hose
29	WP356138 Whirlpool Hose Clamp
30	WPW10612925 Whirlpool Microwave Nameplate
31	W11638180 Whirlpool Bearing
32	W11638181 Whirlpool Bearing
