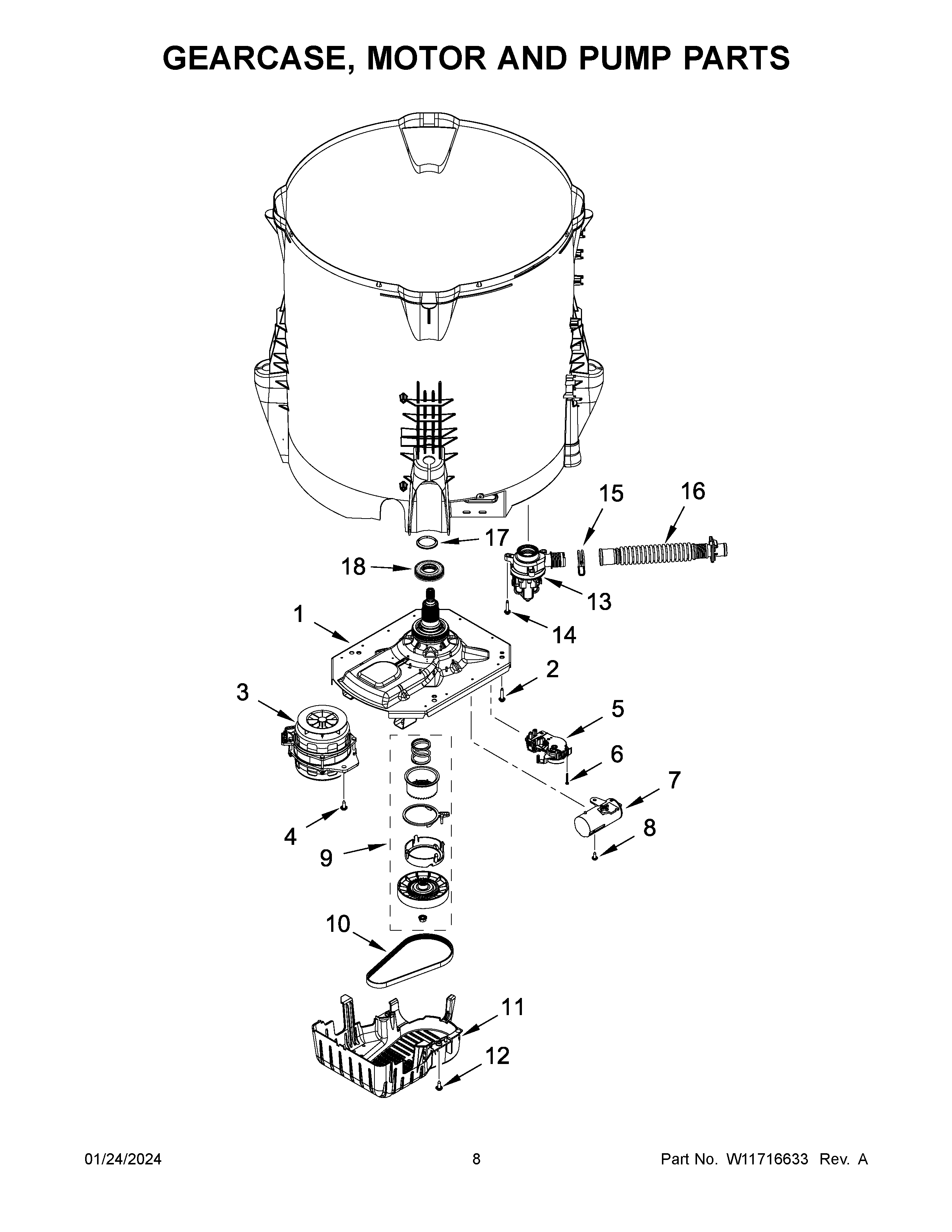

MVW5430PBK0 05 – GEARCASE, MOTOR AND PUMP PARTS

MVW5430PBK0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVW5430PBK0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1W11449840 Whirlpool Gearcase Assembly
2WPW10249633 Whirlpool Screw
3W11026785 Whirlpool Drive Motor
4W11685857 Whirlpool Screw Assembly
5ACTUATOR
6W11596033 Whirlpool Microwave Screw
7CAPACITOR (WASHER)
8WP489128 Whirlpool Refrigerator Screw
9W10721967 Whirlpool Washer Cam Kit
10W11239857 Whirlpool Washer Belt
11W11409708 Whirlpool Shield Assembly
12W11573574 Whirlpool Screw
13PUMP-WATER
14WPW10004910 Whirlpool Screw
15WP285655 Whirlpool Hose Clamp
16W10899966 Whirlpool Hose Assembly
17W11553312 Whirlpool Washer Assembly
18W11629599 Whirlpool Tub Seal
