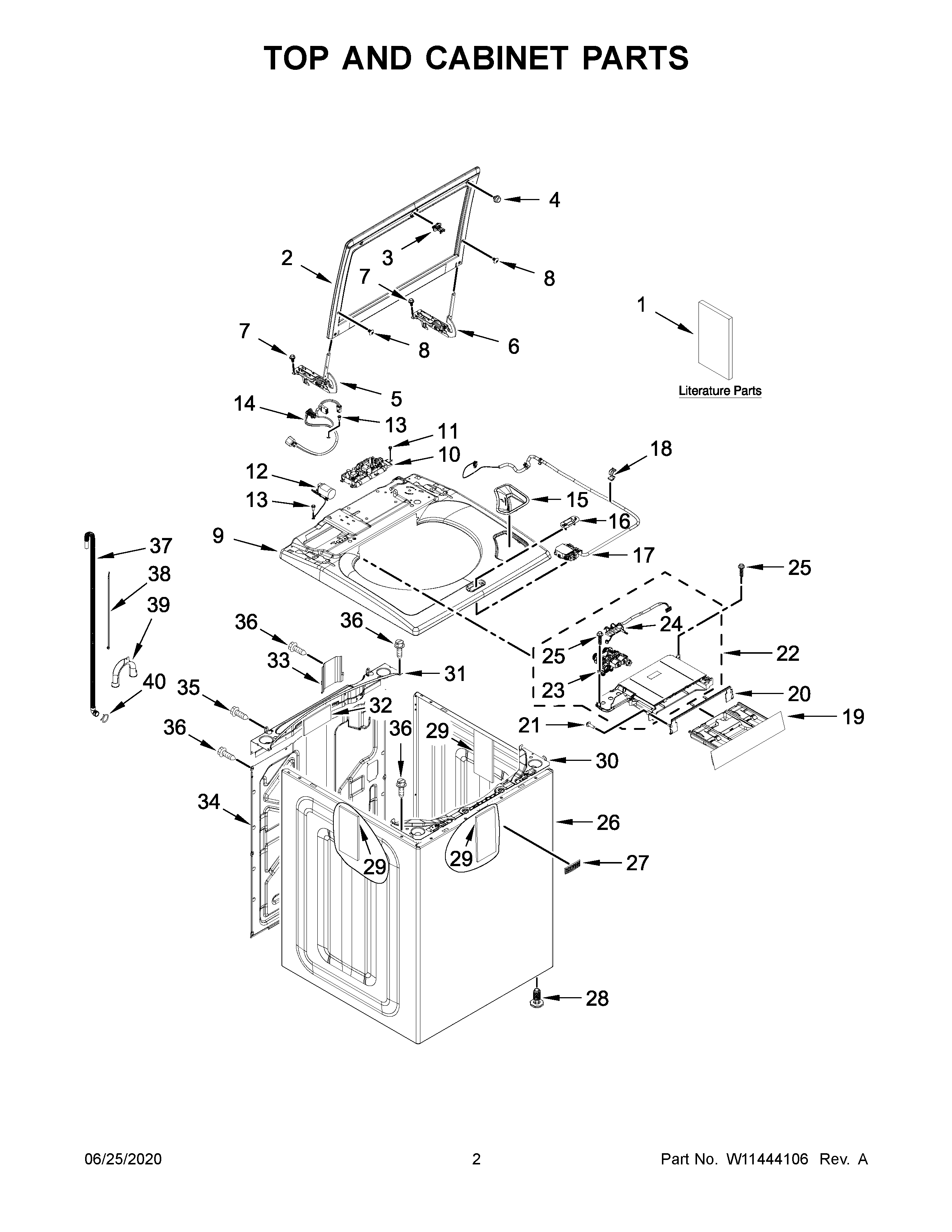

MVW6200KW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	MAY W11416400
1B	MAY W11416398
1	OWNERS MANUAL
2	ASSEMBLY, LID (GLASS) (TEMPEST GREY)
3	STRIKE ASSEMBLY
4	BUMPER, LID
5	HINGE, LID (LEFT)
6	HINGE, LID (RIGHT)
7	SCREW
8	SCREW
9	TOP (WHITE)
10	MAY W11419692
11	Screw
12	ASSEMBLY, LINE FILTER
13	Screw, 10-32 x 5/8
14	POWER CORD
15	BEZEL, BLEACH DISPENSER (WHITE)
16	BEZEL, LID LOCK (WHITE)
17	ASSEMBLY, LID LOCK
18	Clip, Wire (4)
19	ASSEMBLY, DISPENSER DRAWER (WHITE)
20	ASSEMBLY, DISPENSER BEZEL (WHITE)
21	SCREW
22	ASSEMBLY, DISPENSER HOUSING & INLET VALVE
23	VALVE, WATER INLET
24	HARNESS, VALVE
25	MAY 97787
26	CABINET (WHITE)
27	BADGE
28	FOOT ASSEMBLY, LEVELING
29	ABSORBER, IMPACT
30	MAY W11384398
31	BRACE, CABINET TOP – REAR
32	MAY 8564458
33	MAY W10676061
34	PANEL, REAR
35	MAY W10567155
36	SCREW
37	TIE, CABLE
38	HOSE, OUTER DRAIN ASSEMBLY
39	MAY W10280024
40	MAY 356138
