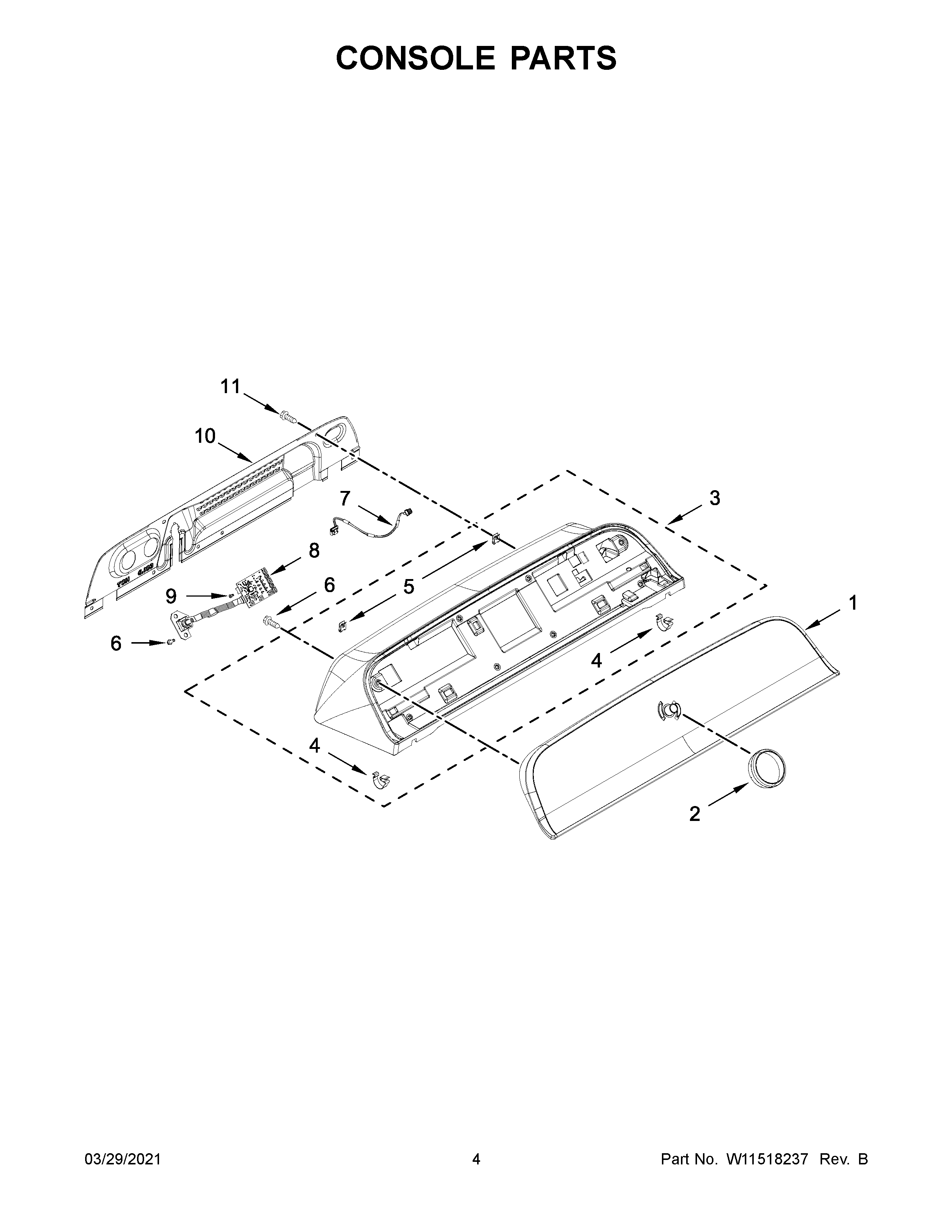

MVW6200KW1 03 – CONSOLE PARTS

MVW6200KW1 03 – CONSOLE PARTS

Written by

in

MVW6200KW1 03 – CONSOLE PARTS

Products

PositionProduct
1W11561182 Whirlpool Refrigerator Fascia Assembly WSH MT
2W11406489 Whirlpool Knob
3W11569437 Whirlpool Console
4WP8312709 Whirlpool Endcap Clip
5W11213336 Whirlpool Nut
6WP9740848 Whirlpool Dishwasher Screw
7W11662667 Whirlpool Wire Harness
8W11481116 Whirlpool Electronic Control Board
98182201 Whirlpool Screw
10W11129559 Whirlpool Rear Panel
11W11685943 Whirlpool Screw
