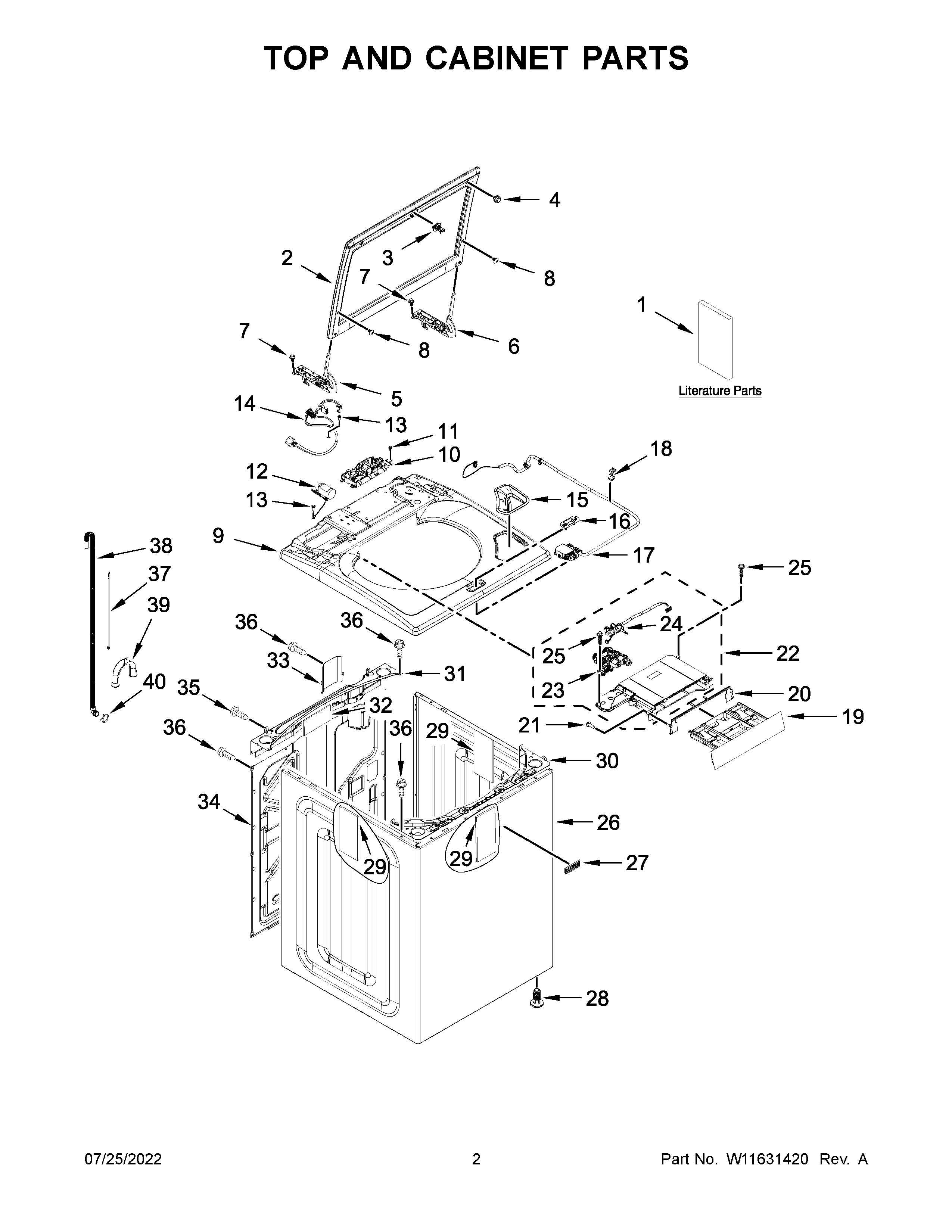

MVW6200KW3 02 – TOP AND CABINET PARTS

MVW6200KW3 02 – TOP AND CABINET PARTS

Written by

in

MVW6200KW3 02 – TOP AND CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1OWNERS MANUAL
1CQUICK START GUIDE
1AENERGY GUIDE
2W11413336 Whirlpool Lid
3W11457841 Whirlpool Door Strike
4W11398707 Whirlpool Grommet Assembly
5W11551369 Whirlpool Left Hand Hinge
6W11551376 Whirlpool Hinge
7WP489128 Whirlpool Refrigerator Screw
8W11679612 Whirlpool Washer Bolt
9W11423769 Whirlpool Top Assembly
10W11633359-includeCORE Whirlpool W11633359 Refrigerator Electronic Control Board + Core
11WP693995 Whirlpool Screw
12FILTER
13W10846509 Whirlpool Screw
14W11551294 Whirlpool Power Cord Harness Non-Heating
15W11175757 Whirlpool Bezel
16W11545554 Whirlpool Knob Bezel
17LATCH
18WP90016 Whirlpool Clip
19W10861667 Whirlpool Washer Dispenser Drawer
20W10601845 Whirlpool Bezel
21WP9740848 Whirlpool Dishwasher Screw
22W11624934 Whirlpool Housing
23W11595805 Whirlpool Valve
24W11524529 Whirlpool Wire Harness
25WPW10109200 Whirlpool Screw
26W10676680 Whirlpool Cabinet
27WPW10612925 Whirlpool Microwave Nameplate
28W11213957 Whirlpool Dishwasher Leveling Leg
29W11197416 Whirlpool Absorber
30W11381327 Whirlpool Brace
31W11712680 Whirlpool Commercial Part Brace
32WP8564458 Whirlpool Absorber
33W10676061 Whirlpool Cover Assembly
34W11486091 Whirlpool Rear Panel
35W11568617 Whirlpool Screw
36W11685943 Whirlpool Screw
37WPW10339879 Whirlpool Wire Tie
38W11244231 Whirlpool Hose
39WPW10280024 Whirlpool Retainer
40WP356138 Whirlpool Hose Clamp
