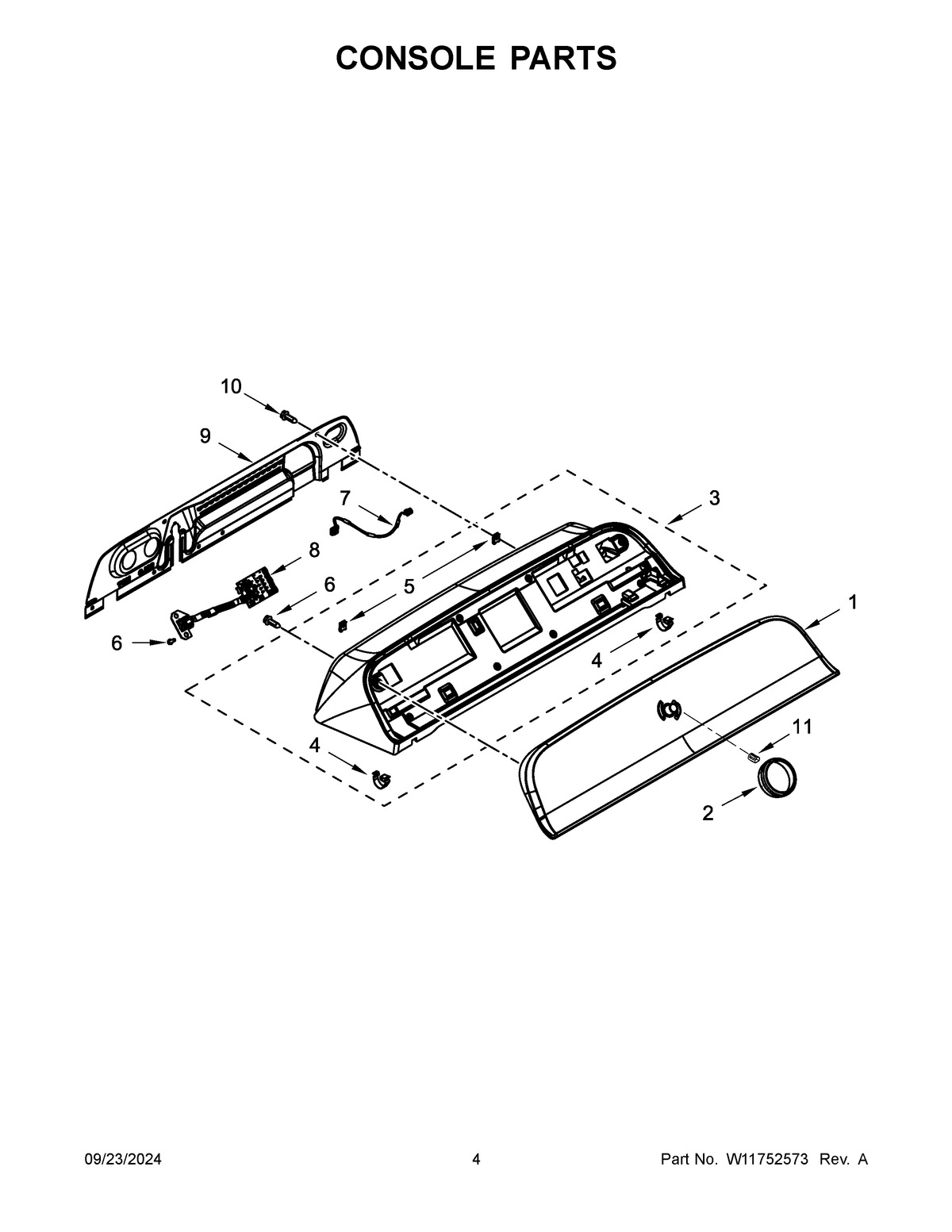

MVW6200KW4 03 – CONSOLE PARTS

MVW6200KW4 03 – CONSOLE PARTS

Written by

in

MVW6200KW4 03 – CONSOLE PARTS

Products

PositionProduct
1W11561182 Whirlpool Refrigerator Fascia Assembly WSH MT
2W11406489 Whirlpool Knob
3W11569437 Whirlpool Console
4WP8312709 Whirlpool Endcap Clip
5W11213336 Whirlpool Nut
6WP9740848 Whirlpool Dishwasher Screw
7W11662667 Whirlpool Wire Harness
8W11627516-includeCORE Whirlpool W11627516 Washer Electronic Control Board + Core
9W11129559 Whirlpool Rear Panel
10W11685943 Whirlpool Screw
11WP8536939 Whirlpool Spring Clip
