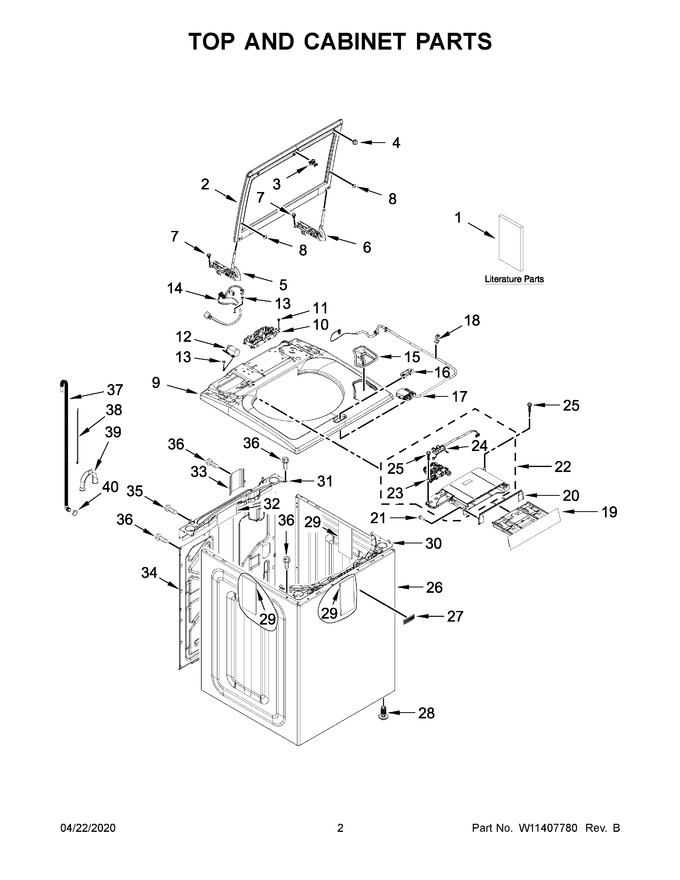

MVW6230HC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	QUICK REFERENCE GUIDE
1	OWNERS MANUAL
1D	MAY W11250100
1C	MAY W11197707
1B	ENERGY GUIDE
2	ASSEMBLY, LID (GLASS) (TEMPEST GREY)
3	STRIKE ASSEMBLY
4	BUMPER, LID
5	HINGE, LID (LEFT)
6	HINGE, LID (RIGHT)
7	SCREW
8	SCREW
9A	TOP (CHROME SHADOW)
9	TOP (WHITE)
10	CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
11	Screw
12	ASSEMBLY, LINE FILTER
13	Screw, 10-32 x 5/8
14	POWER CORD
15	BEZEL, BLEACH DISPENSER (WHITE)
15A	BEZEL, BLEACH DISPENSER (CHROME SHADOW)
16	BEZEL, LID LOCK (WHITE)
16A	BEZEL, LID LOCK (CHROME SHADOW)
17	ASSEMBLY, LID LOCK
18	Clip, Wire (4)
19A	ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
19	ASSEMBLY, DISPENSER DRAWER (WHITE)
20A	ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20	ASSEMBLY, DISPENSER BEZEL (WHITE)
21	SCREW, DISPENSER HOUSING MOUNTING
22	ASSEMBLY, DISPENSER HOUSING & INLET VALVE
23	VALVE, WATER INLET
24	HARNESS, VALVE
25	MAY 97787
26A	CABINET (CHROME SHADOW)
26	CABINET (WHITE)
27	BADGE
28	FOOT ASSEMBLY, LEVELING
29	ABSORBER, IMPACT
30	CHANNEL, TOP FRONT (WHITE)
30A	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
31	BRACE, CABINET TOP – REAR
32	MAY 8564458
33	MAY W10676061
34	PANEL, REAR
35	MAY W10567155
36	SCREW
37	TIE, CABLE
38	HOSE, OUTER DRAIN ASSEMBLY
39	MAY W10280024
40	MAY 356138
