MVW6230HC3 03 – CONSOLE PARTS

MVW6230HC3 03 – CONSOLE PARTS

Written by

in

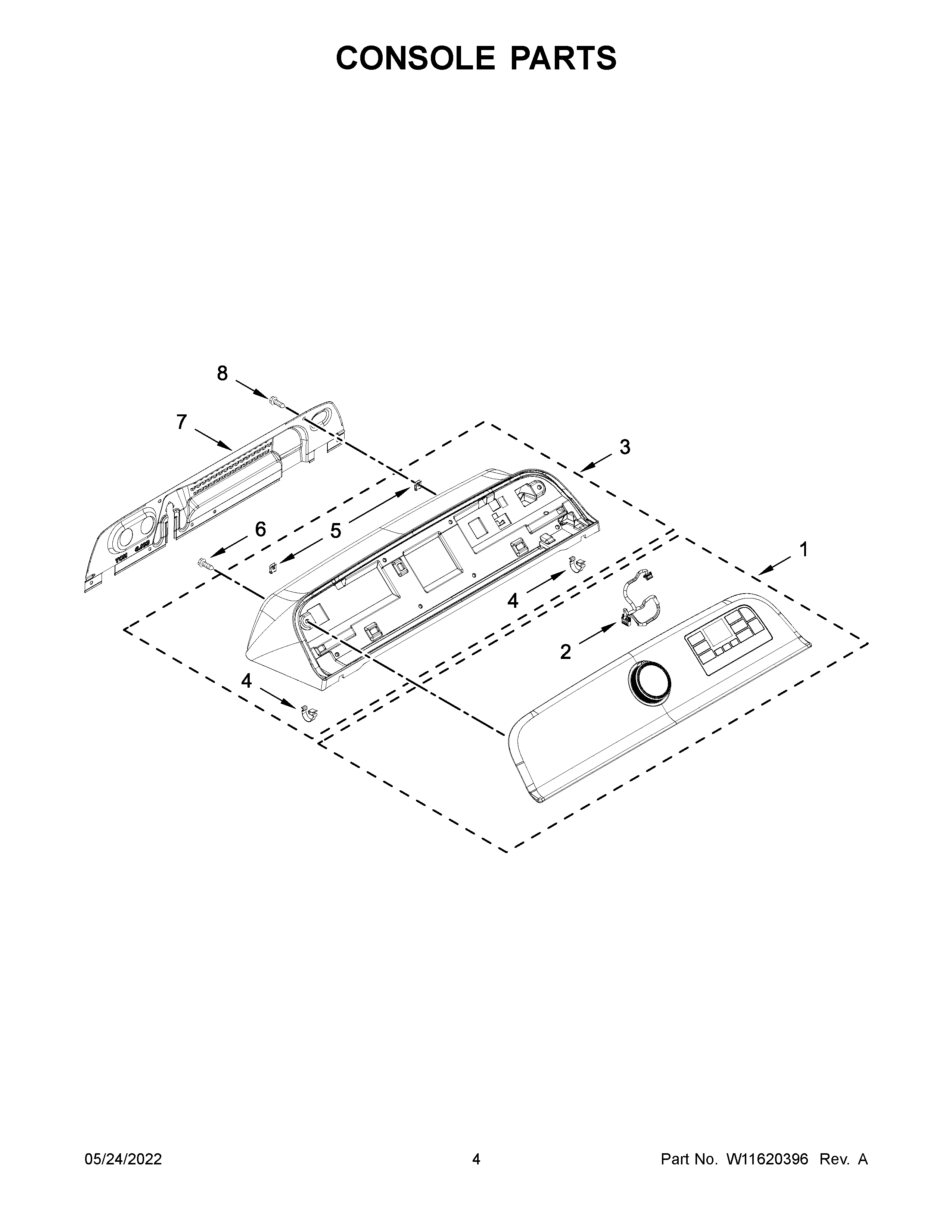

MVW6230HC3 03 – CONSOLE PARTS

Products

PositionProduct
1W11478524 Whirlpool Control Module + Core
2W11596129 Whirlpool Wire Harness
3W11569437 Whirlpool Console
3AW11519741 Whirlpool Console
4WP8312709 Whirlpool Endcap Clip
5W11213336 Whirlpool Nut
6WP9740848 Whirlpool Dishwasher Screw
7W11129559 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
