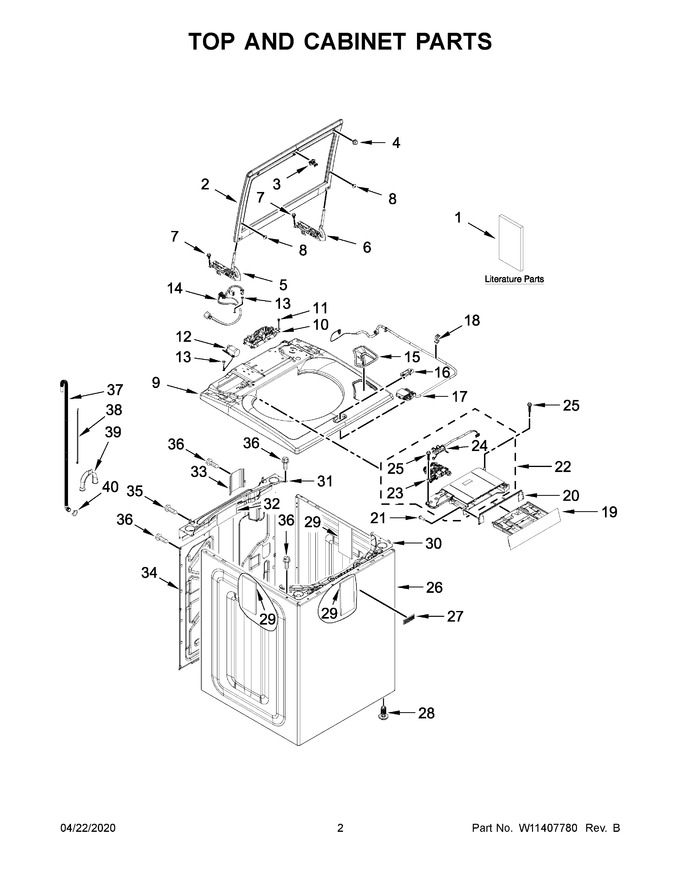

MVW6230HW0 02 – TOP AND CABINET PARTSadmin2025-04-26T13:07:12+00:00MVW6230HW0 02 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1A | QUICK REFERENCE GUIDE |
| 1 | OWNERS MANUAL |
| 1D | MAY W11250100 |
| 1C | MAY W11197707 |
| 1B | ENERGY GUIDE |
| 2 | ASSEMBLY, LID (GLASS) (TEMPEST GREY) |
| 3 | STRIKE ASSEMBLY |
| 4 | BUMPER, LID |
| 5 | HINGE, LID (LEFT) |
| 6 | HINGE, LID (RIGHT) |
| 7 | SCREW |
| 8 | SCREW |
| 9A | TOP (CHROME SHADOW) |
| 9 | TOP (WHITE) |
| 10 | CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR |
| 11 | Screw |
| 12 | ASSEMBLY, LINE FILTER |
| 13 | Screw, 10-32 x 5/8 |
| 14 | POWER CORD |
| 15 | BEZEL, BLEACH DISPENSER (WHITE) |
| 15A | BEZEL, BLEACH DISPENSER (CHROME SHADOW) |
| 16 | BEZEL, LID LOCK (WHITE) |
| 16A | BEZEL, LID LOCK (CHROME SHADOW) |
| 17 | ASSEMBLY, LID LOCK |
| 18 | Clip, Wire (4) |
| 19A | ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW) |
| 19 | ASSEMBLY, DISPENSER DRAWER (WHITE) |
| 20A | ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW) |
| 20 | ASSEMBLY, DISPENSER BEZEL (WHITE) |
| 21 | SCREW, DISPENSER HOUSING MOUNTING |
| 22 | ASSEMBLY, DISPENSER HOUSING & INLET VALVE |
| 23 | VALVE, WATER INLET |
| 24 | HARNESS, VALVE |
| 25 | MAY 97787 |
| 26A | CABINET (CHROME SHADOW) |
| 26 | CABINET (WHITE) |
| 27 | BADGE |
| 28 | FOOT ASSEMBLY, LEVELING |
| 29 | ABSORBER, IMPACT |
| 30 | CHANNEL, TOP FRONT (WHITE) |
| 30A | BRACE, CABINET TOP - FRONT (CHROME SHADOW) |
| 31 | BRACE, CABINET TOP - REAR |
| 32 | MAY 8564458 |
| 33 | MAY W10676061 |
| 34 | PANEL, REAR |
| 35 | MAY W10567155 |
| 36 | SCREW |
| 37 | TIE, CABLE |
| 38 | HOSE, OUTER DRAIN ASSEMBLY |
| 39 | MAY W10280024 |
| 40 | MAY 356138 |
