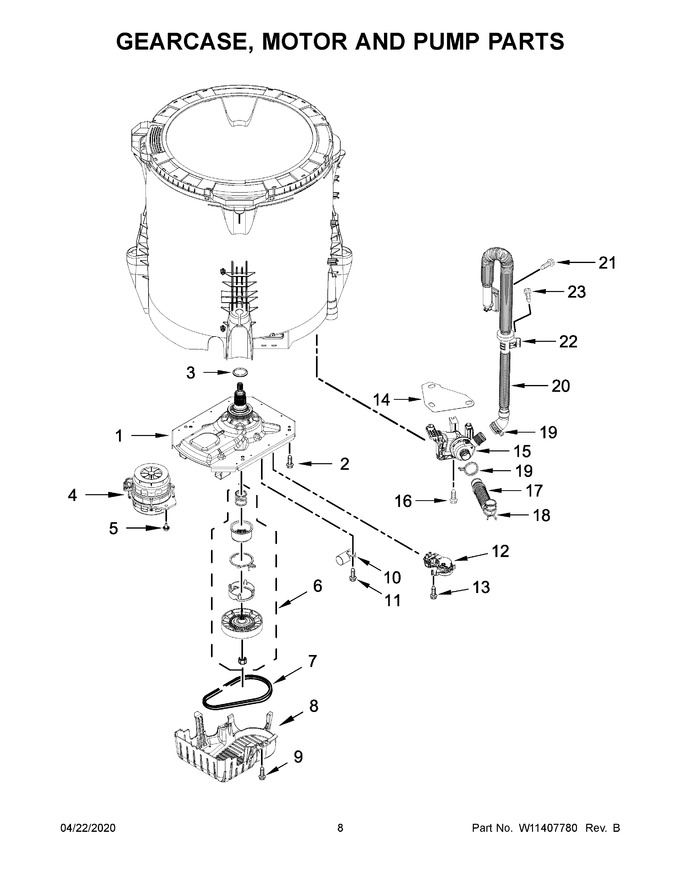

MVW6230HW0 05 – GEARCASE, MOTOR AND PUMP PARTSadmin2025-04-26T13:05:43+00:00MVW6230HW0 05 – GEARCASE, MOTOR AND PUMP PARTS
Products
| Position | Product |
|---|
| 1 | GEARCASE ASSEMBLY |
| 2 | SCREW |
| 3 | WASHER, THRUST |
| 4 | MOTOR, DRIVE |
| 5 | BOLT, COUNTERWEIGHT |
| 6 | MAY W10721967 |
| 7 | BELT, DRIVE |
| 8 | SHIELD, PULLEY COVER |
| 9 | SCREW |
| 10 | CAPACITOR, MOTOR RUN |
| 11 | SCREW |
| 12 | ACTUATOR-SHIFT |
| 13 | SCREW |
| 14 | MAY W10894129 |
| 15 | PUMP ASSEMBLY, DRAIN |
| 16 | SCREW |
| 17 | HOSE, TUB TO PUMP |
| 18 | MAY 8317496 |
| 19 | CLAMP, HOSE |
| 20 | HOSE, INTERNAL DRAIN |
| 21 | SCREW |
| 22 | CLIP, HOSE |
| 23 | SCREW |
