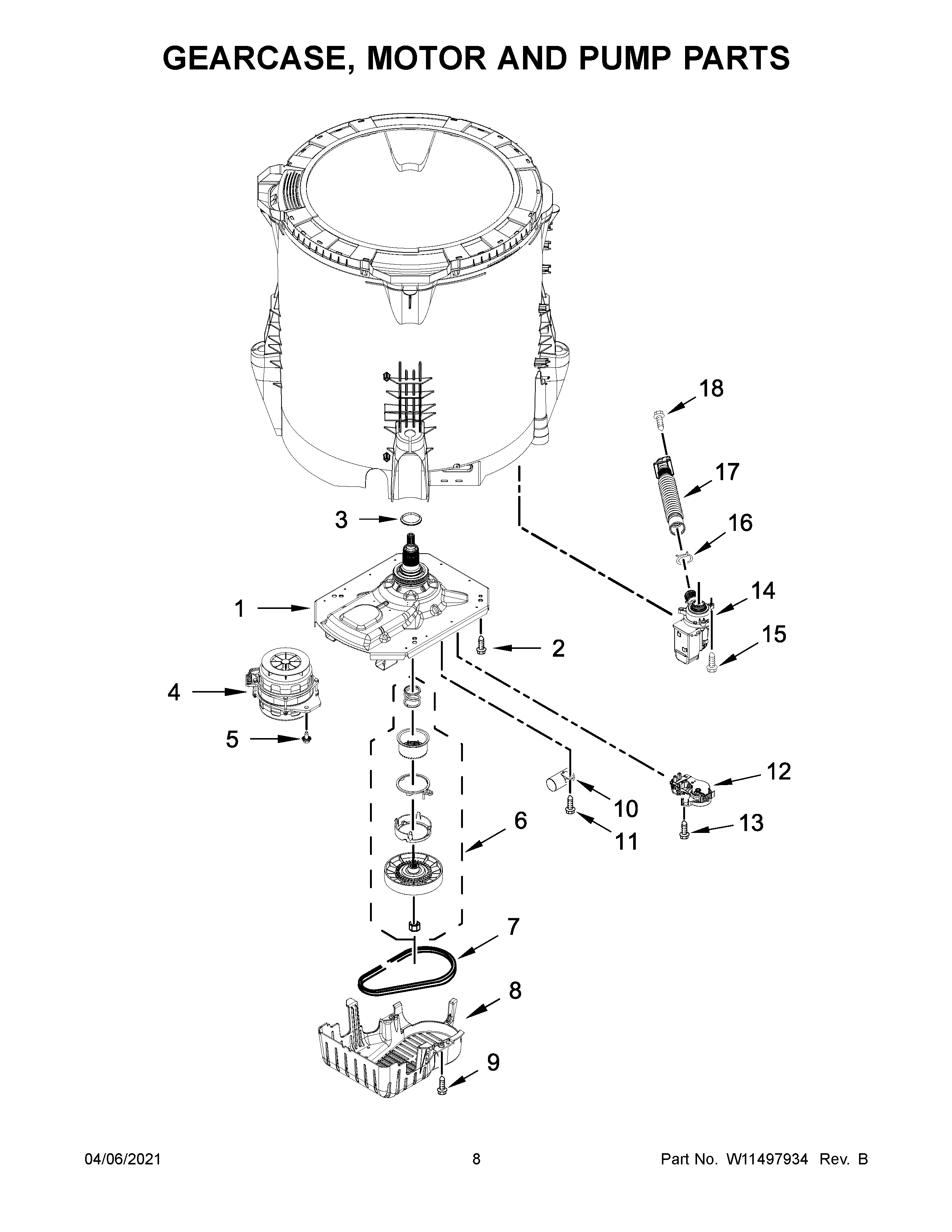

MVW6230HW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	GEARCASE ASSEMBLY
2	SCREW
3	WASHER, THRUST
4	MOTOR, DRIVE
5	BOLT, COUNTERWEIGHT
6	MAY W10721967
7	BELT, DRIVE
8	SHIELD, PULLEY COVER
9	SCREW
10	CAPACITOR, MOTOR RUN
11	SCREW
12	ACTUATOR, SHIFT
13	SCREW
14	MAY W10894129
15	MAY W11259498
16	SCREW
17	HOSE, TUB TO PUMP
18	MAY 8317496
19	CLAMP, HOSE
20	MAY W10763078
21	SCREW
22	CLIP, HOSE
23	SCREW
