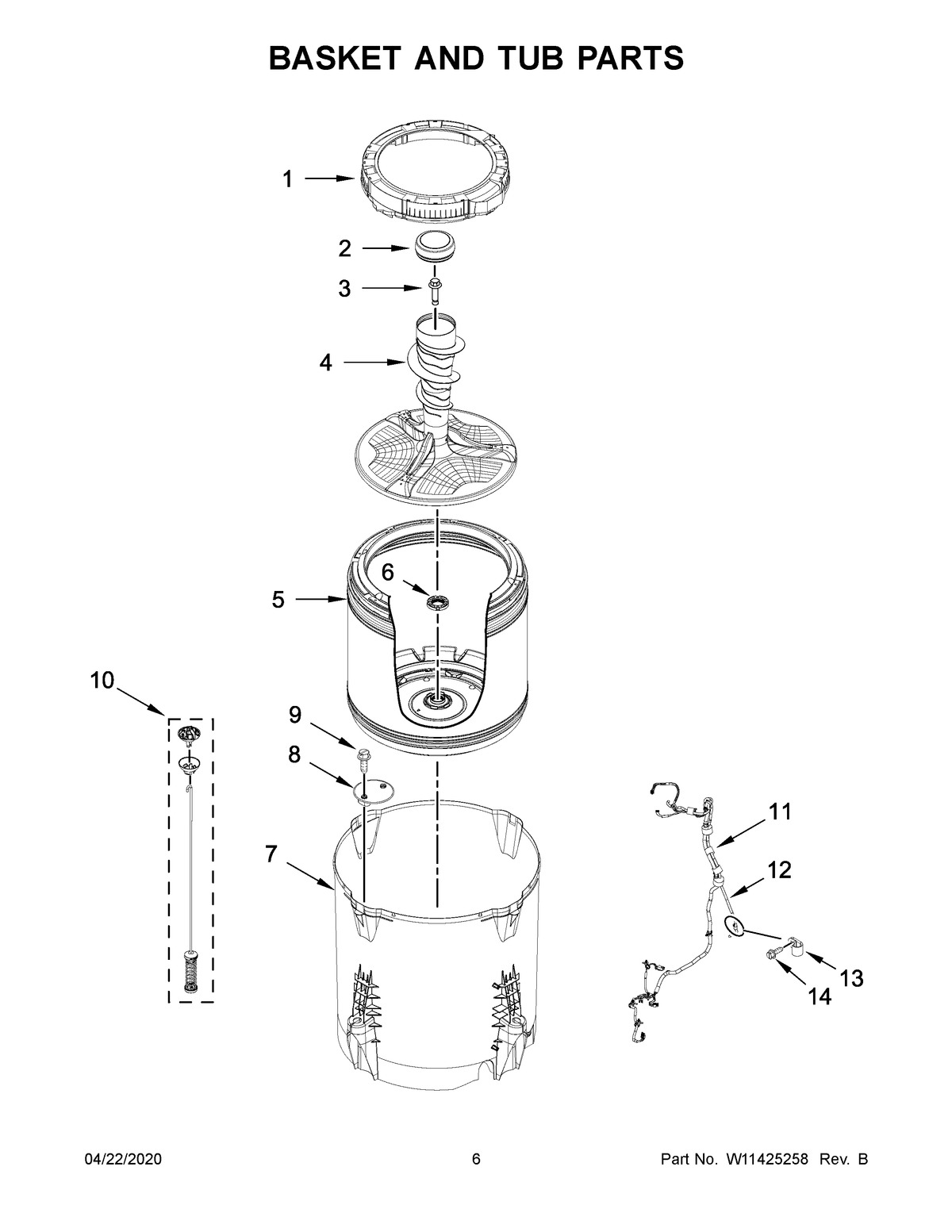

MVW6230RHW0 04 – BASKET AND TUB PARTS

Written by

Products

Position	Product
1	TUB RING
2	CAP, AGITATOR
3	SCREW
4	AGITATOR
5	BASKET ASSEMBLY
6	BASKET, LOCK NUT
7	MAY W11219115
8	FILTER, DRAIN PUMP
9	Screw
10	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND SUSPENSION BALLS)
11	HARNESS, LOWER
12	HOSE PRESSURE SWITCH
13	CLAMP, CABLE
14	SCREW
