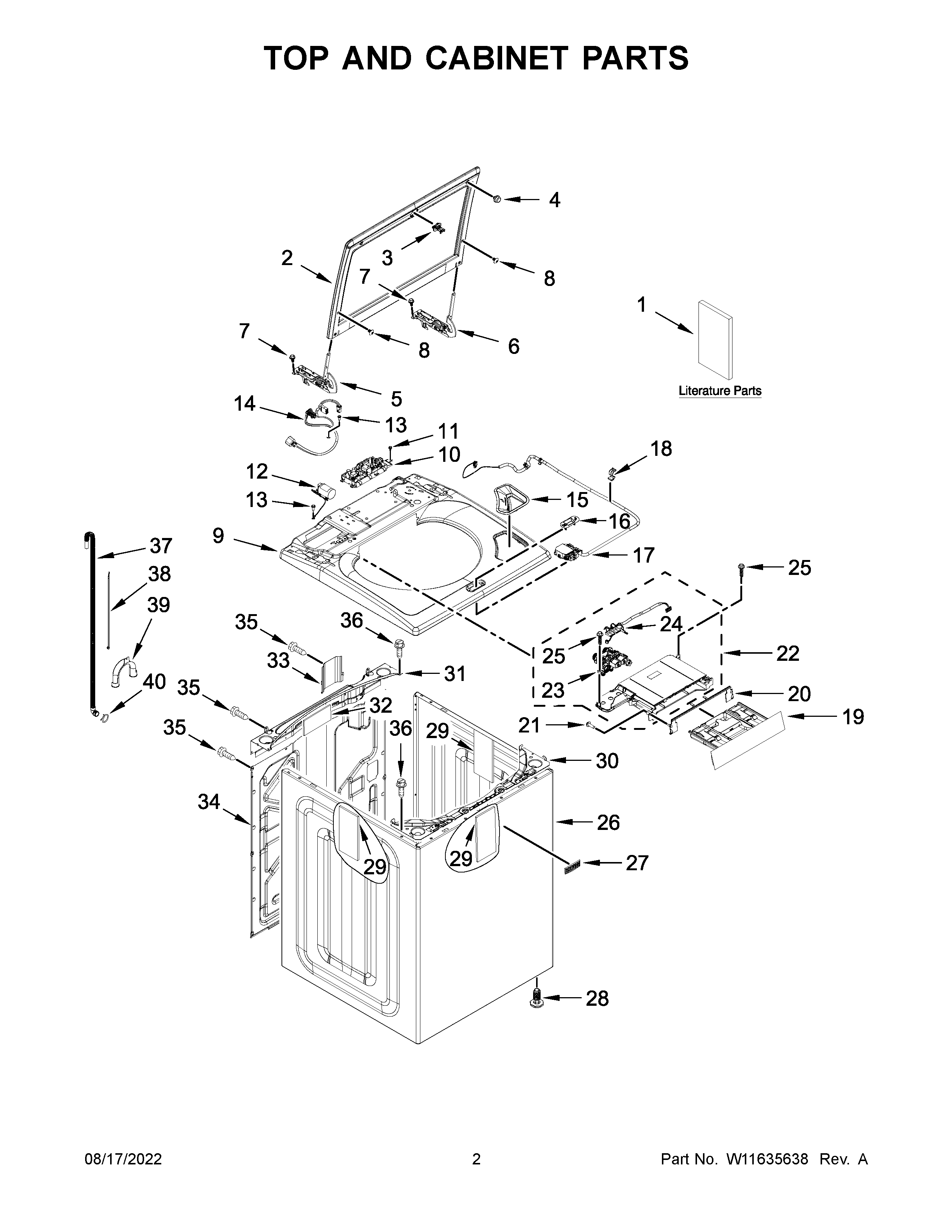

MVW6230RHW3 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11470212 Whirlpool Lid Assembly
3	STRIKE
4	W11398707 Whirlpool Grommet Assembly
5	W11551369 Whirlpool Left Hand Hinge
6	W11551376 Whirlpool Hinge
7	WP489128 Whirlpool Refrigerator Screw
8	W11679612 Whirlpool Washer Bolt
9	W11423769 Whirlpool Top Assembly
10	W11624938-includeCORE Whirlpool W11624938 Refrigerator Electronic Control Board + Core
11	WP693995 Whirlpool Screw
12	FILTER
13	W10846509 Whirlpool Screw
14	W11551294 Whirlpool Power Cord Harness Non-Heating
15	W11175757 Whirlpool Bezel
16	W11545554 Whirlpool Knob Bezel
17	LATCH
18	WP90016 Whirlpool Clip
19	W10861667 Whirlpool Washer Dispenser Drawer
20	W10601845 Whirlpool Bezel
21	WP9740848 Whirlpool Dishwasher Screw
22	W11624934 Whirlpool Housing
23	W11595805 Whirlpool Valve
24	W11524529 Whirlpool Wire Harness
25	WPW10109200 Whirlpool Screw
26	W10676680 Whirlpool Cabinet
27	WPW10612925 Whirlpool Microwave Nameplate
28	W11213957 Whirlpool Dishwasher Leveling Leg
29	W11197416 Whirlpool Absorber
30	W11381327 Whirlpool Brace
31	W11712680 Whirlpool Commercial Part Brace
32	WP8564458 Whirlpool Absorber
33	W10676061 Whirlpool Cover Assembly
34	W11486091 Whirlpool Rear Panel
35	W11568617 Whirlpool Screw
36	W11685943 Whirlpool Screw
37	W11244231 Whirlpool Hose
38	WPW10339879 Whirlpool Wire Tie
39	WPW10280024 Whirlpool Retainer
40	WP356138 Whirlpool Hose Clamp
