MVW6230RHW3 04 – BASKET AND TUB PARTS

MVW6230RHW3 04 – BASKET AND TUB PARTS

Written by

in

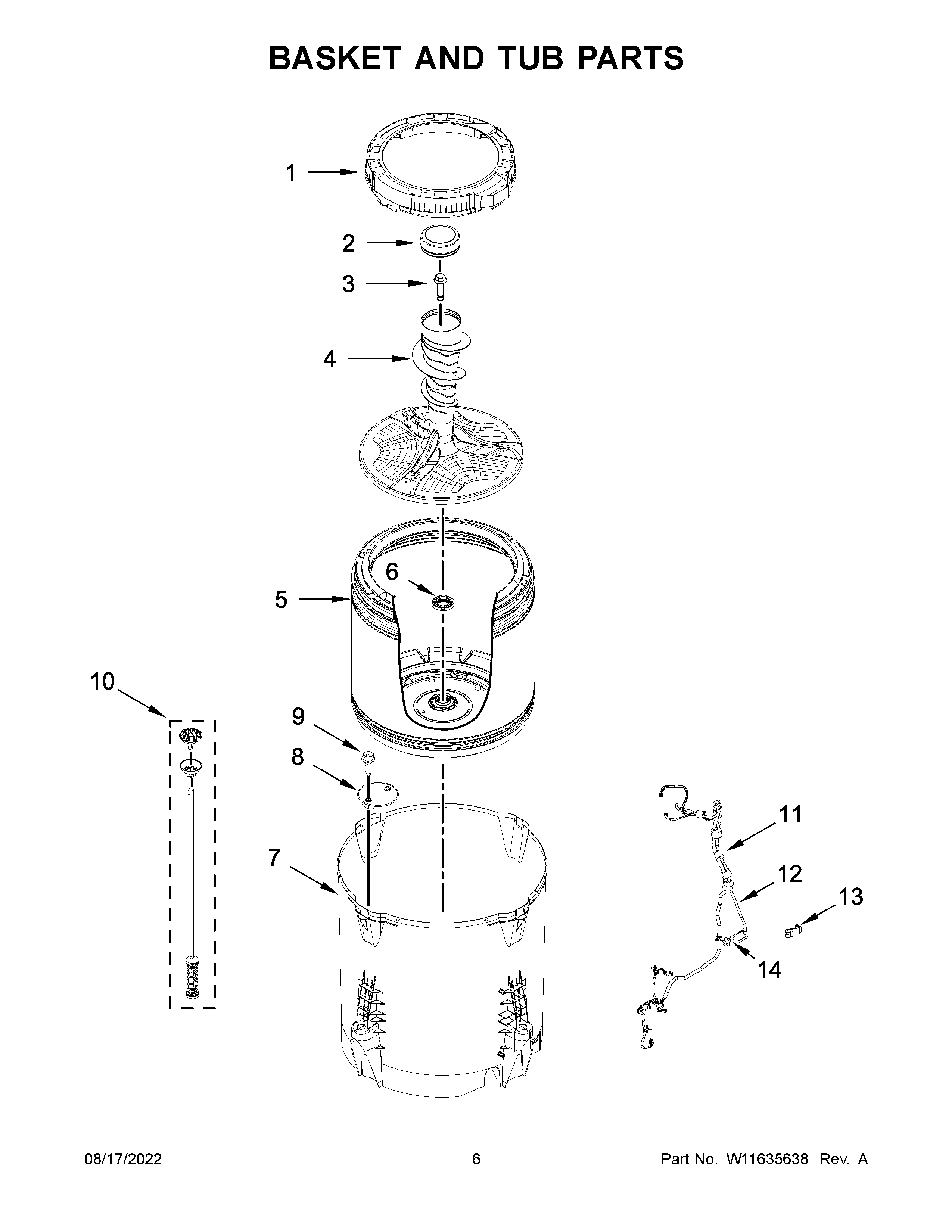

MVW6230RHW3 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11662156 Whirlpool Washer Tub Ring
2W11246844 Whirlpool Cap Assembly
3W10752187 Whirlpool Screw
4AGITATOR
5W11513243 Whirlpool Basket
6W11551646 Whirlpool Spanner Nut
7W11219115 Whirlpool Outer Tub
8W11568797 Whirlpool Filter
9WP8533928 Whirlpool Refrigerator Screw
10SUSPENSION
11W11590868 Whirlpool Wire Harness
12WP353244 Whirlpool Hose
13CLIP
14WPW10109200 Whirlpool Screw
