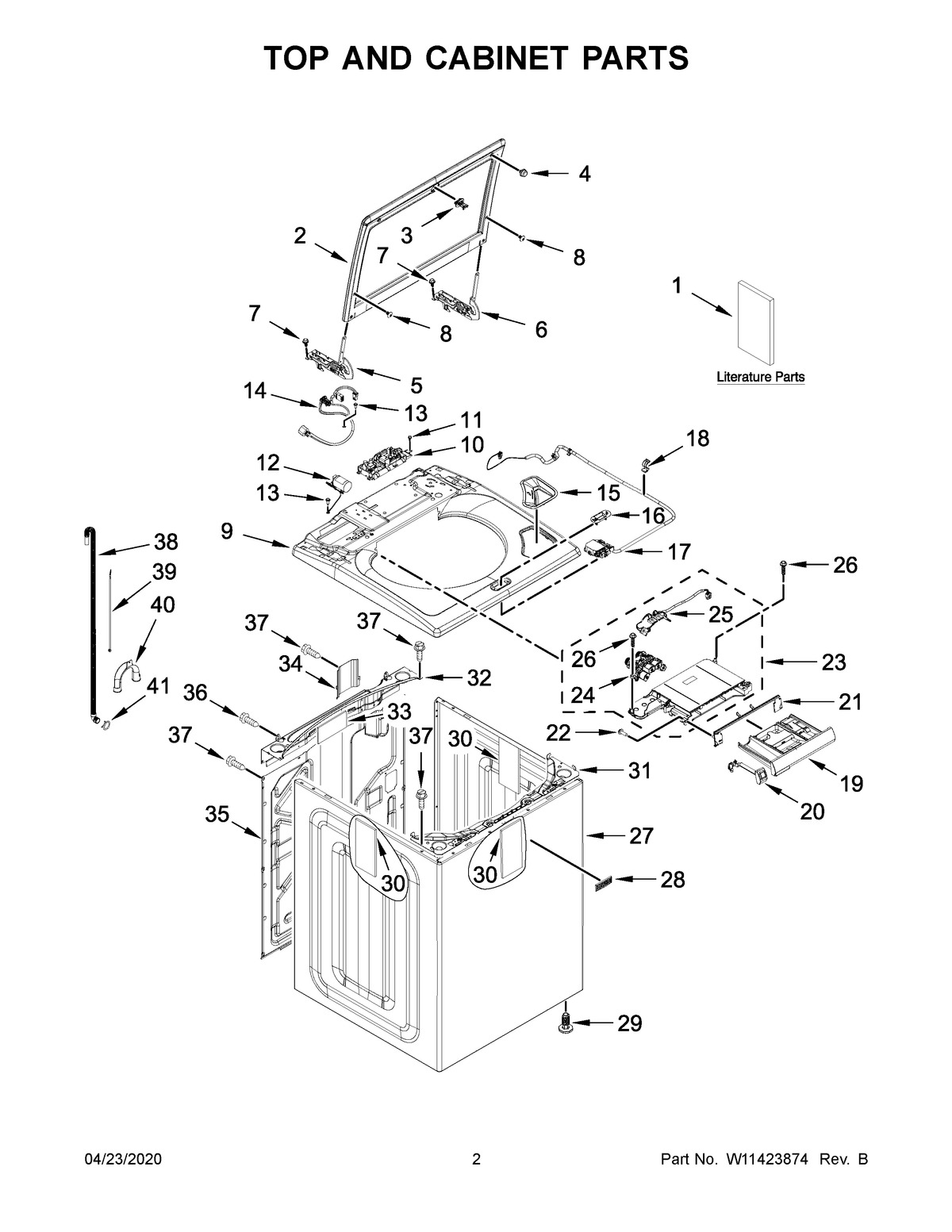

MVW7230HC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	MAY W11445525
1	OWNERS MANUAL
1D	MAY W11250102
1C	MAY W11197745
1B	ENERGY GUIDE
2	ASSEMBLY, LID (GLASS) (TEMPEST GREY)
3	STRIKE ASSEMBLY
4	BUMPER, LID
5	HINGE, LID (LEFT)
6	HINGE, LID (RIGHT)
7	SCREW
8	SCREW
9A	TOP (CHROME SHADOW)
9	TOP (WHITE)
10	CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
11	Screw
12	ASSEMBLY, LINE FILTER
13	Screw, 10-32 x 5/8
14	POWER CORD
15	BEZEL, BLEACH DISPENSER (WHITE)
15A	BEZEL, BLEACH DISPENSER (CHROME SHADOW)
16A	BEZEL, LID LOCK (CHROME SHADOW)
16	BEZEL, LID LOCK (WHITE)
17	ASSEMBLY, LID LOCK
18	Clip, Wire (4)
19	ASSEMBLY, DISPENSER DRAWER (WHITE)
19A	ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
20	ASSEMBLY, FAUCET SWITCH (WHITE)
20A	ASSEMBLY, FAUCET SWITCH (CHROME SHADOW)
21	ASSEMBLY, DISPENSER BEZEL (WHITE)
21A	ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
22	SCREW, DISPENSER HOUSING MOUNTING
23	ASSEMBLY, DISPENSER HOUSING & INLET VALVE
24	VALVE, WATER INLET
25	HARNESS, VALVE
26	MAY 97787
27	CABINET (WHITE)
27A	CABINET (CHROME SHADOW)
28	BADGE
29	FOOT ASSEMBLY, LEVELING
30	ABSORBER, IMPACT
31A	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
31	CHANNEL, TOP FRONT (WHITE)
32	BRACE, CABINET TOP – REAR
33	MAY 8564458
34	MAY W10676061
35	PANEL, REAR
36	MAY W10567155
37	SCREW
38	TIE, CABLE
39	HOSE, OUTER DRAIN ASSEMBLY
40	MAY W10280024
41	MAY 356138
