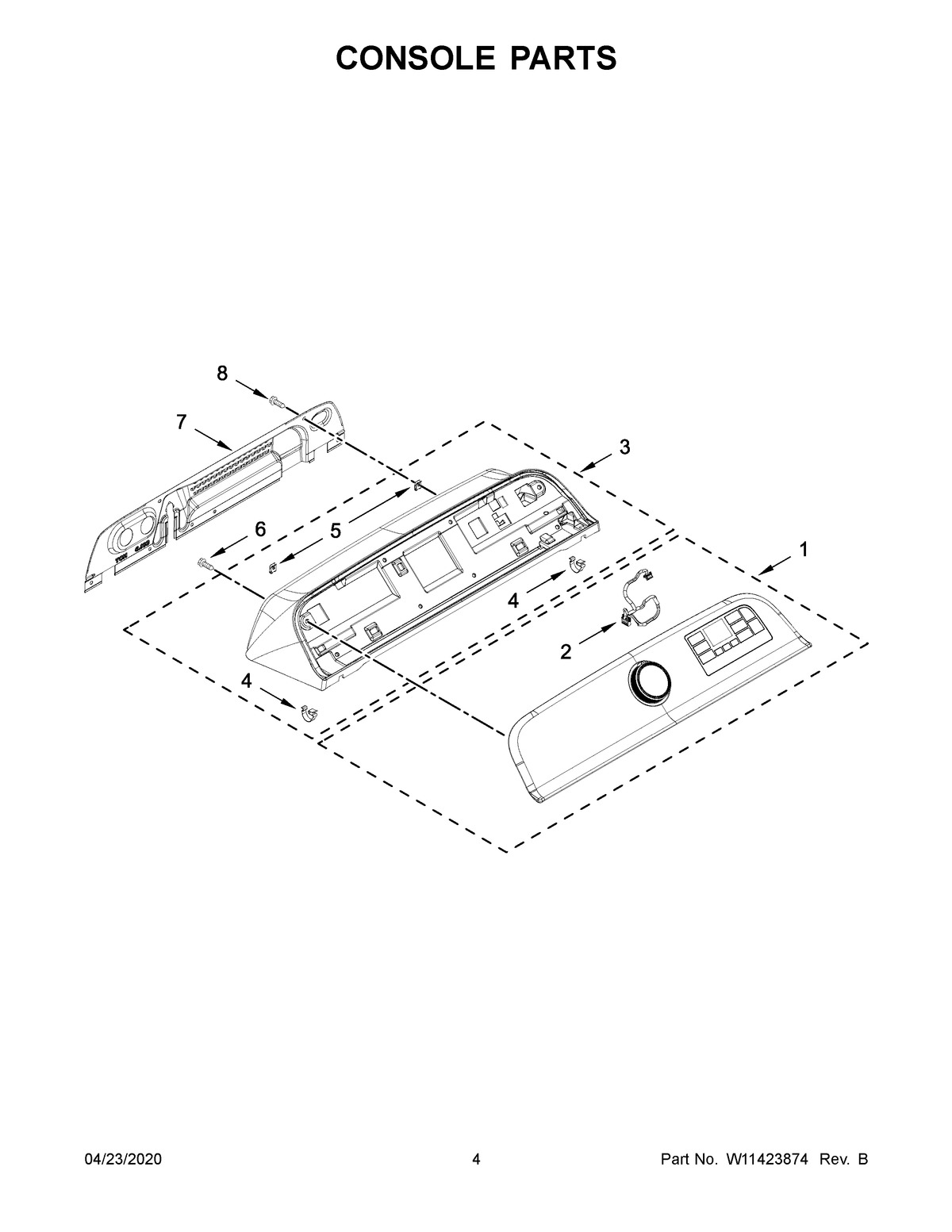

MVW7230HC0 03 – CONSOLE PARTS

Written by

Products

Position	Product
1	ASSEMBLY, FASCIA
2	HARNESS, UI
3	ASSEMBLY, CONSOLE (WHITE)
3A	ASSEMBLY, CONSOLE (CHROME SHADOW)
4	MAY 8312709
5	NUT, "U"
6	MAY 12990204
7	PANEL, CONSOLE REAR
8	SCREW
