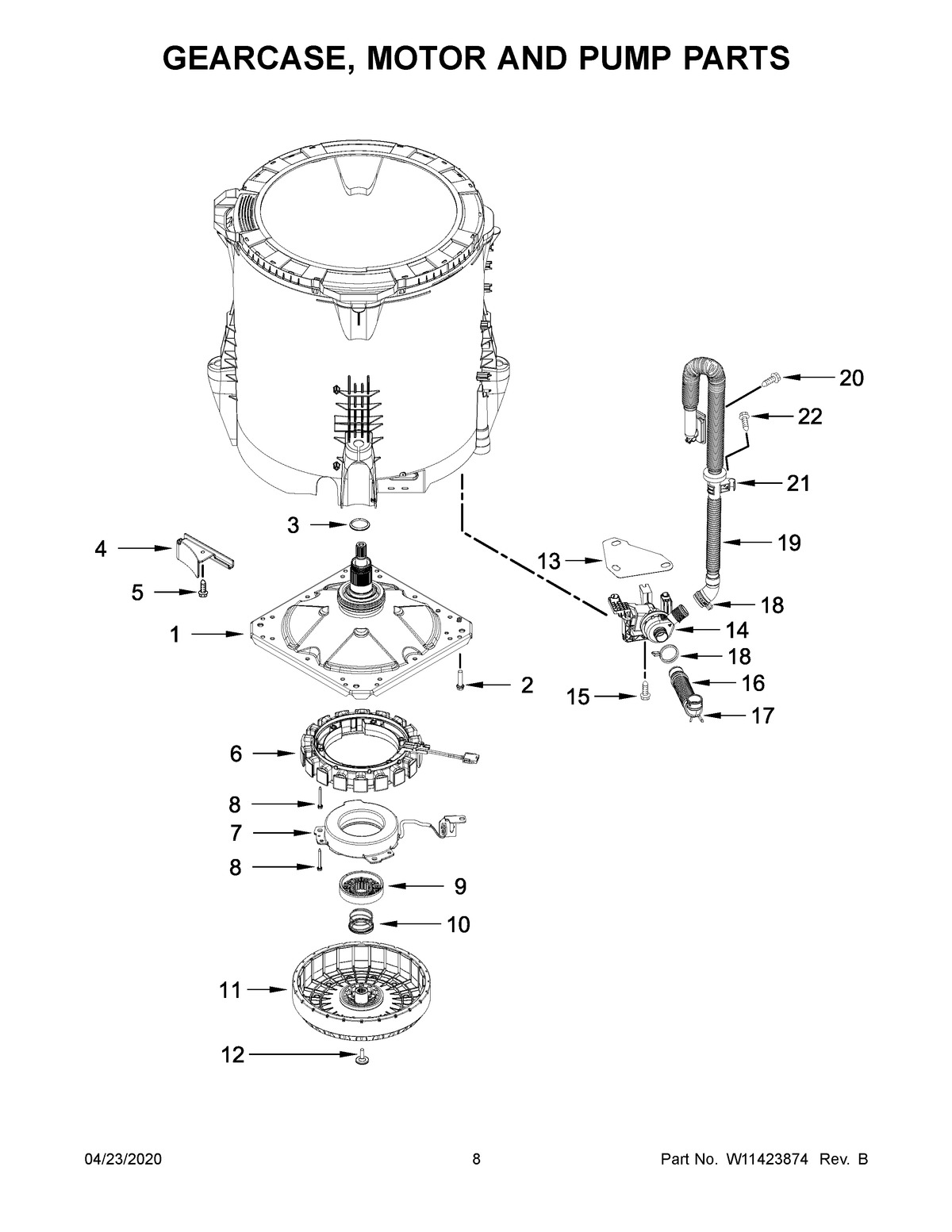

MVW7230HC0 05 – GEARCASE, MOTOR AND PUMP PARTS

MVW7230HC0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVW7230HC0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1DRIVE ASSEMBLY
2SCREW
3WASHER, THRUST
4HARNESS SHIELD – MOTOR
5Screw, 10-32 x 5/8
6STATOR, MOTOR
7ASSEMBLY, CLUTCH
8SCREW
9SLIDER
10ASSEMBLY, SPRING
11ROTOR, MOTOR
12SCREW
13MAY W10894129
14PUMP ASSEMBLY, DRAIN
15SCREW
16HOSE, TUB TO PUMP
17MAY 8317496
18CLAMP, HOSE
19HOSE, INTERNAL DRAIN
20SCREW
21CLIP, HOSE
22SCREW
