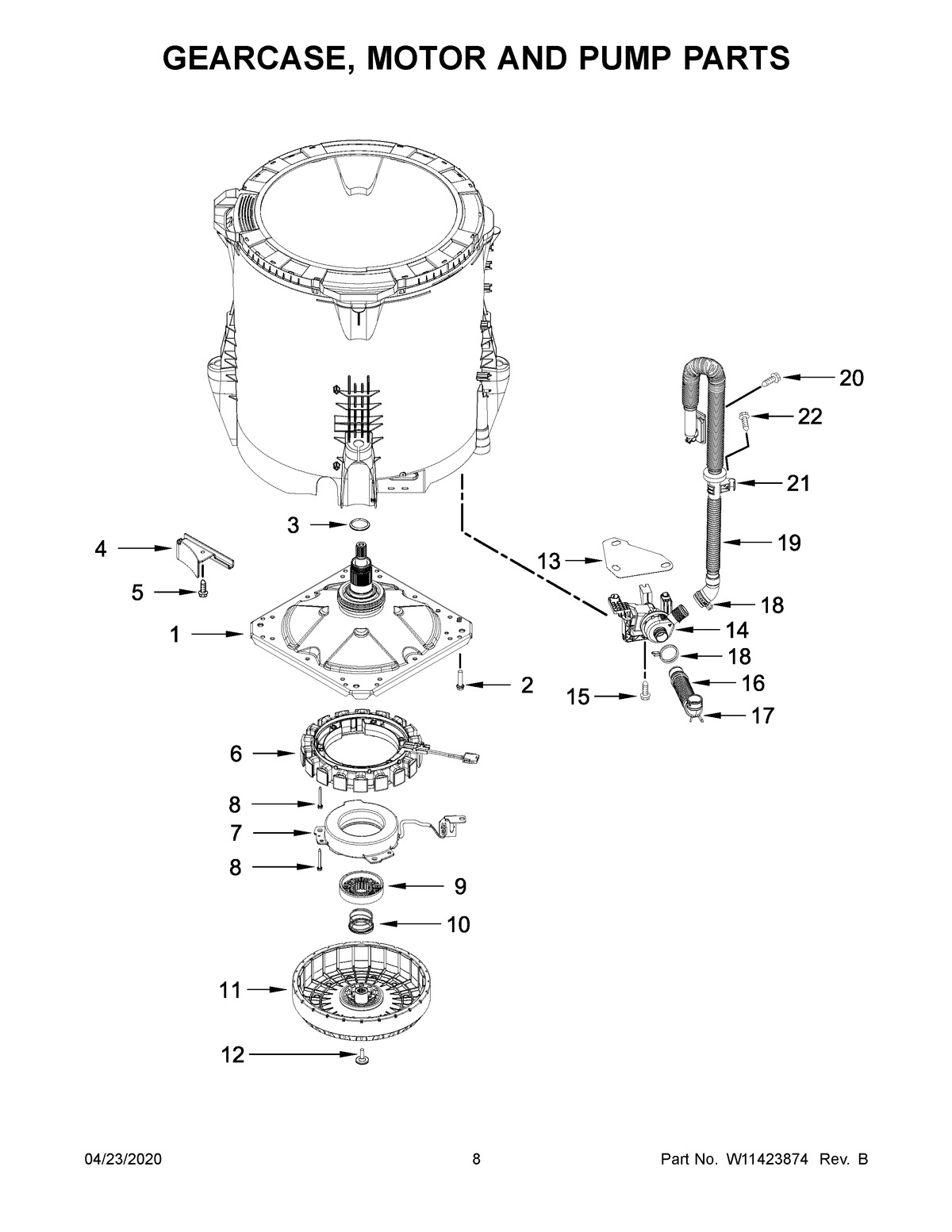

MVW7230HW0 05 – GEARCASE, MOTOR AND PUMP PARTSadmin2025-04-26T11:30:22+00:00MVW7230HW0 05 – GEARCASE, MOTOR AND PUMP PARTS
Products
| Position | Product |
|---|
| 1 | DRIVE ASSEMBLY |
| 2 | SCREW |
| 3 | WASHER, THRUST |
| 4 | HARNESS SHIELD - MOTOR |
| 5 | Screw, 10-32 x 5/8 |
| 6 | STATOR, MOTOR |
| 7 | ASSEMBLY, CLUTCH |
| 8 | SCREW |
| 9 | SLIDER |
| 10 | ASSEMBLY, SPRING |
| 11 | ROTOR, MOTOR |
| 12 | SCREW |
| 13 | MAY W10894129 |
| 14 | PUMP ASSEMBLY, DRAIN |
| 15 | SCREW |
| 16 | HOSE, TUB TO PUMP |
| 17 | MAY 8317496 |
| 18 | CLAMP, HOSE |
| 19 | HOSE, INTERNAL DRAIN |
| 20 | SCREW |
| 21 | CLIP, HOSE |
| 22 | SCREW |
