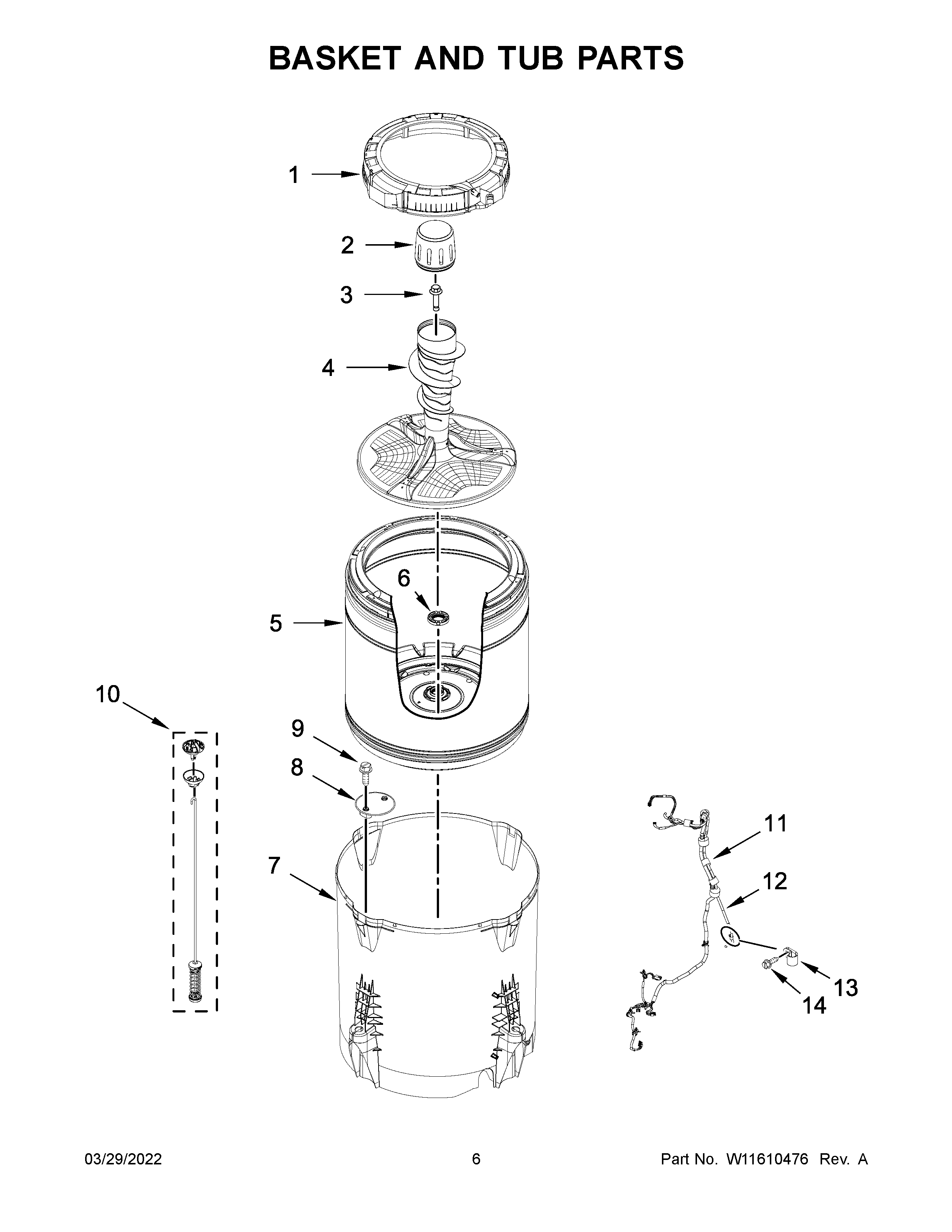

MVW7230HW1 04 – BASKET AND TUB PARTS

MVW7230HW1 04 – BASKET AND TUB PARTS

Written by

in

MVW7230HW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1RING-TUB
2W11611671 Whirlpool Cap
3W10752187 Whirlpool Screw
4AGITATOR
5W11178227 Whirlpool Basket
6W11551646 Whirlpool Spanner Nut
7W11219115 Whirlpool Outer Tub
8W11568797 Whirlpool Filter
9WP8533928 Whirlpool Refrigerator Screw
10SUSPENSION
11W11568984 Whirlpool Wire Harness
12WP353244 Whirlpool Hose
13W10005430 Whirlpool Clamp
14W10846509 Whirlpool Screw
