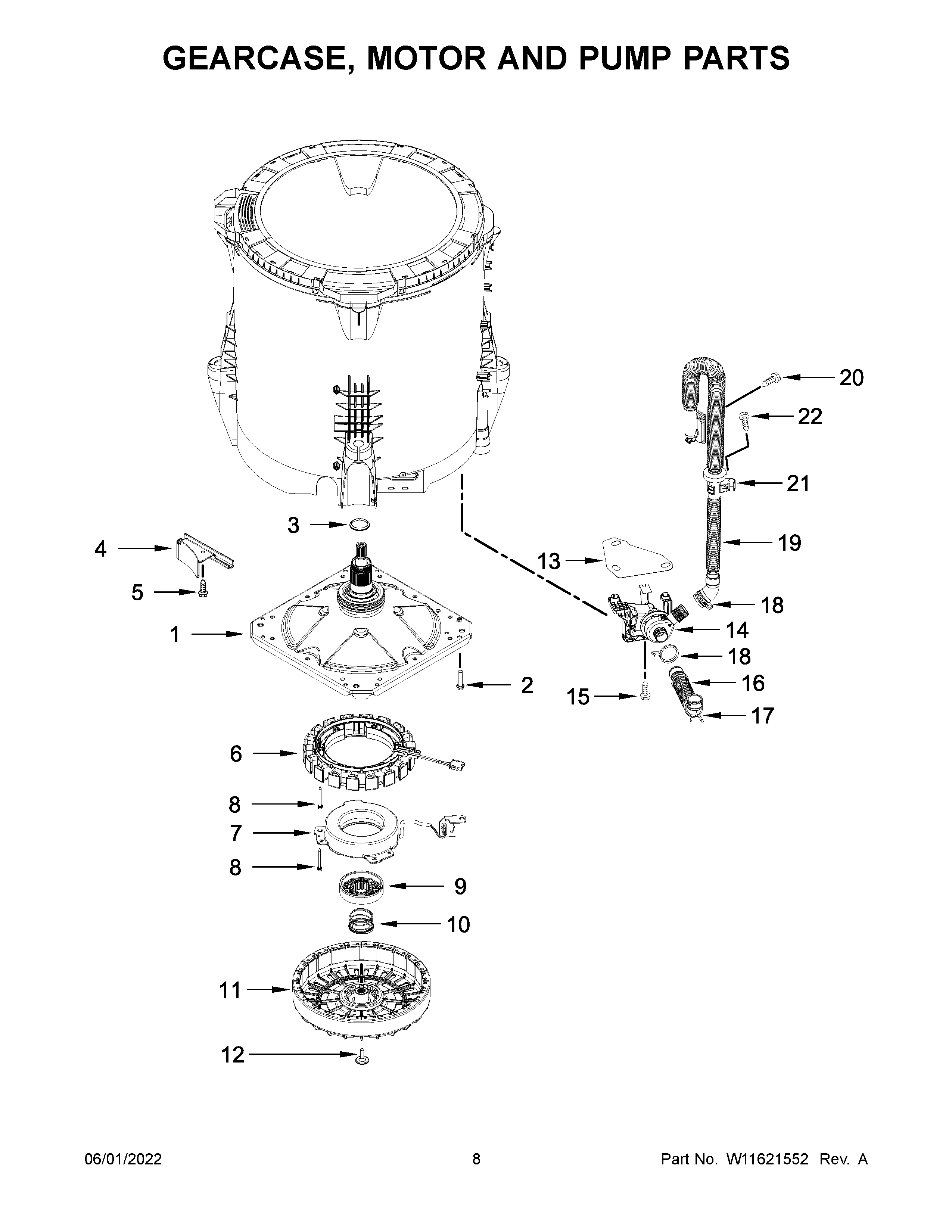

MVW7232HC1 05 – GEARCASE, MOTOR AND PUMP PARTS

MVW7232HC1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVW7232HC1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1GEARCASE
2WPW10249633 Whirlpool Screw
3W11553312 Whirlpool Washer Assembly
4SHIELD
5W10846509 Whirlpool Screw
6W11195971 Whirlpool Stator
7CLUTCH
8SCREW
10SLIDER
11ROTOR
12W10752189 Whirlpool Screw
13W10894129 Whirlpool Shield
14W11396717 Whirlpool Water Pump
15WPW10004910 Whirlpool Screw
16HOSE
17WP285655 Whirlpool Hose Clamp
19W11553446 Whirlpool Drain Hose Assembly
20WP9740848 Whirlpool Dishwasher Screw
21W10652932 Whirlpool Clip
22WPW10109200 Whirlpool Screw
