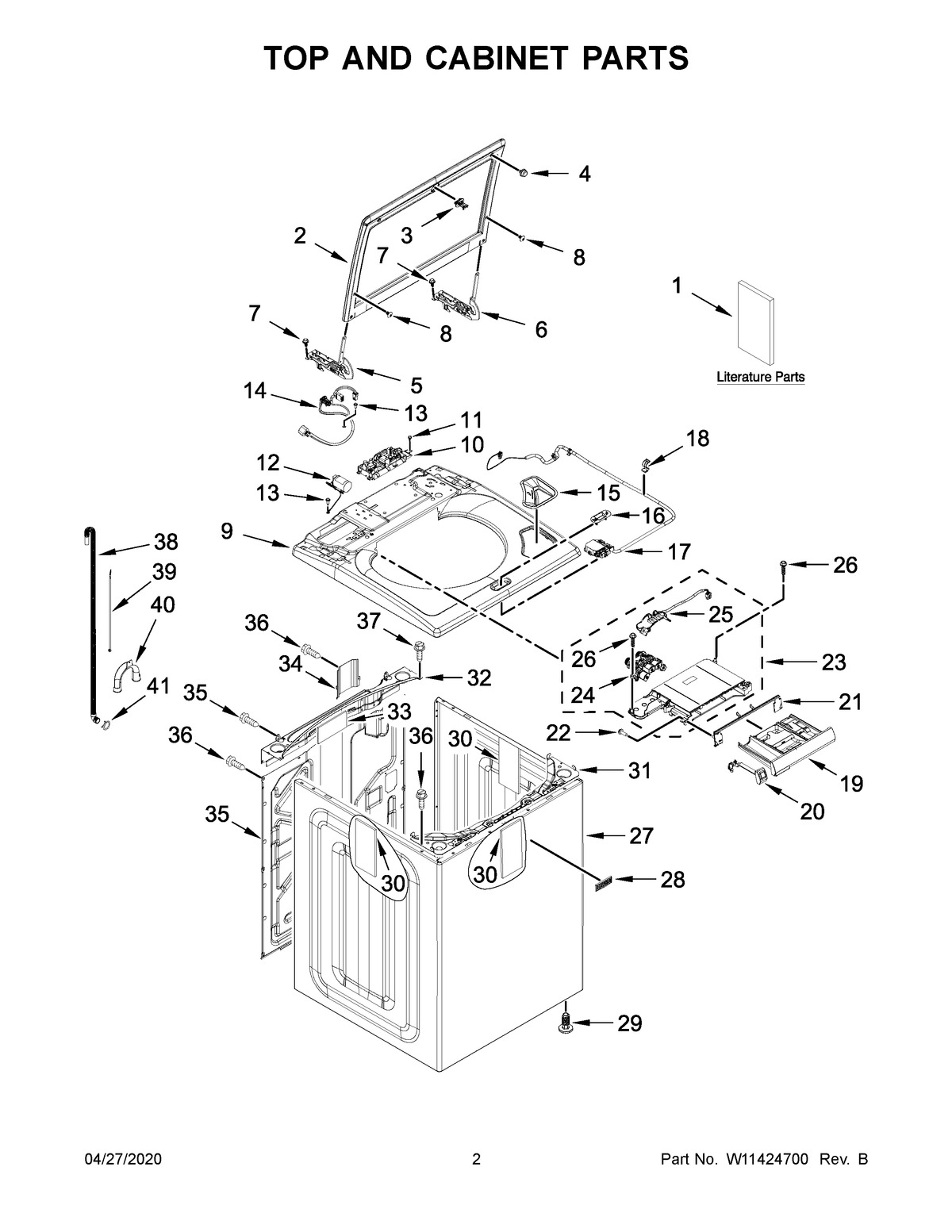

MVW8230HC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1D	MAY W11250102
1C	MAY W11197745
1	OWNERS MANUAL
1A	MAY W11445525
2	ASSEMBLY, LID (GLASS) (TEMPEST GREY)
3	STRIKE ASSEMBLY
4	BUMPER, LID
5	HINGE, LID (LEFT)
6	HINGE, LID (RIGHT)
7	SCREW
8	SCREW
9	TOP (CHROME SHADOW)
10	CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
11	Screw
12	ASSEMBLY, LINE FILTER
13	Screw, 10-32 x 5/8
14	POWER CORD
15	BEZEL, BLEACH DISPENSER (CHROME SHADOW)
16	BEZEL, LID LOCK (CHROME SHADOW)
17	ASSEMBLY, LID LOCK
18	Clip, Wire (4)
19	ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
20	ASSEMBLY, FAUCET SWITCH (CHROME SHADOW)
21	ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
22	SCREW, DISPENSER HOUSING MOUNTING
23	ASSEMBLY, DISPENSER HOUSING & INLET VALVE
24	VALVE, WATER INLET
25	HARNESS, VALVE
26	MAY 97787
27	CABINET (CHROME SHADOW)
28	BADGE
29	FOOT ASSEMBLY, LEVELING
30	ABSORBER, IMPACT
31	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
32	BRACE, CABINET TOP – REAR
33	MAY 8564458
34	MAY W10676061
35	PANEL, REAR
36	MAY W10567155
37	SCREW
38	TIE, CABLE
39	HOSE, OUTER DRAIN ASSEMBLY
40	MAY W10280024
41	MAY 356138
