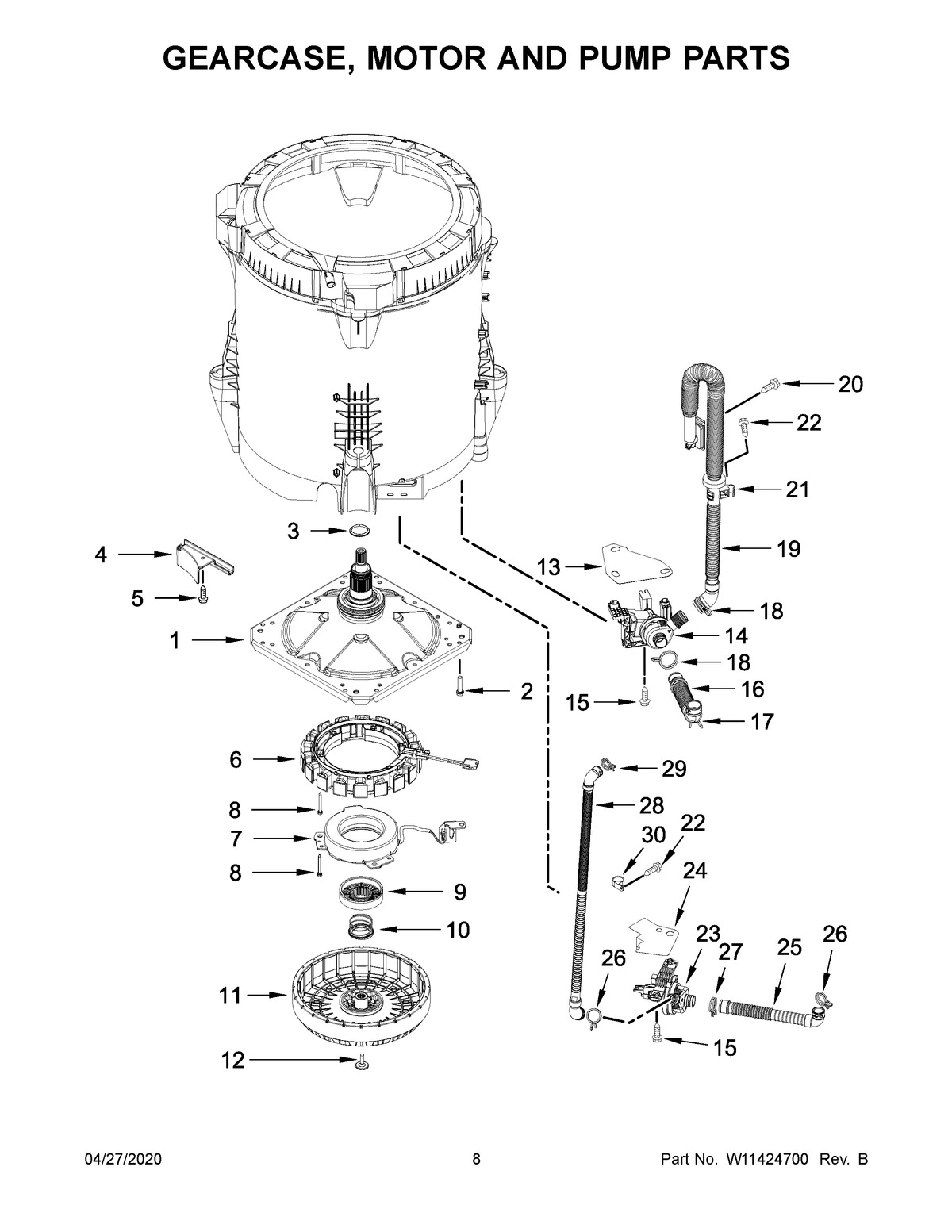

MVW8230HC0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	DRIVE ASSEMBLY
2	SCREW
3	WASHER, THRUST
4	HARNESS SHIELD – MOTOR
5	Screw, 10-32 x 5/8
6	STATOR, MOTOR
7	ASSEMBLY, CLUTCH
8	SCREW
9	SLIDER
10	ASSEMBLY, SPRING
11	ROTOR, MOTOR
12	SCREW
13	MAY W10894129
14	PUMP ASSEMBLY, DRAIN
15	SCREW
16	HOSE, TUB TO PUMP
17	MAY 8317496
18	CLAMP, HOSE
19	HOSE, INTERNAL DRAIN
20	SCREW
21	CLIP, HOSE
22	SCREW
23	PUMP ASSEMBLY, RECIRCULATION
24	SHIELD, RECIRCULATION PUMP
25	HOSE – RECIRCULATION (TUB TO PUMP)
26	HOSE CLAMP
27	CLAMP, HOSE
28	HOSE – RECIRCULATION (PUMP TO UPPER TUB)
29	CLAMP, HOSE
30	MAY 8534021
