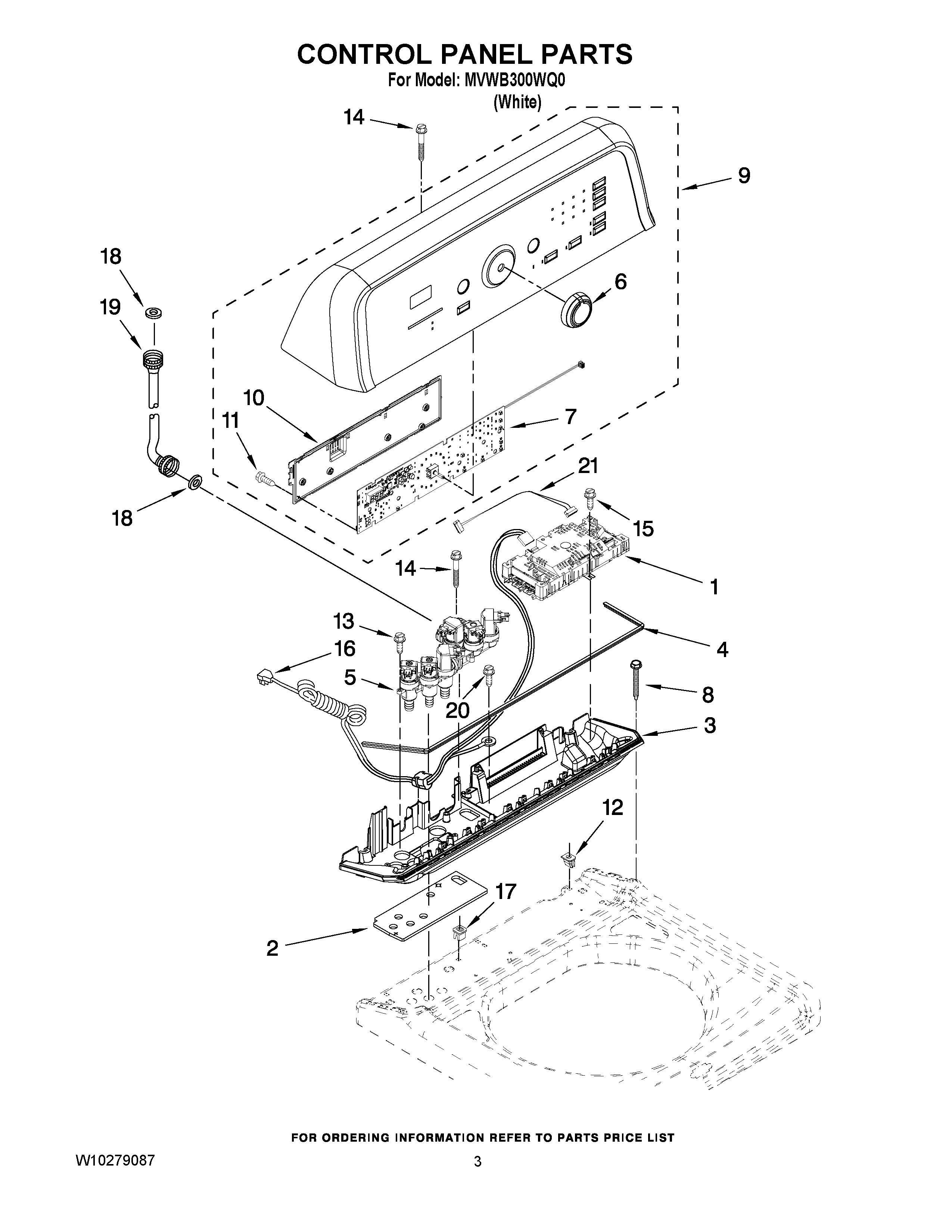

MVWB300WQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10258402
2	MAY W10141695
3	Tray Assembly, Console (Includes Items 2 & 4) (White)
4	MAY W10141693
5	VALVE, LOG ASSEMBLY (INCLUDES ITEM 21) ASSEMBLY
6	MAY W10051126
7	MAY W10268921
8	SCREW
9	MAY W10090758
10	COVER, REAR
11	Screw, 6-19 x 3/64
12	NUT, PUSH IN
13	SCREW
14	SCREW
15	SCREW
16	MAY 3407203
17	NUT, PUSH-IN
18	ACCESSORY PARTS, WASHER, HOSE
19	Hose, Water Inlet (Cold Water)
19	Hose, Water Inlet (Hot Water)
20	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
21	MAY 3407187
