MVWB300WQ2 03 – MOTOR, BASKET AND TUB PARTS – Aparts

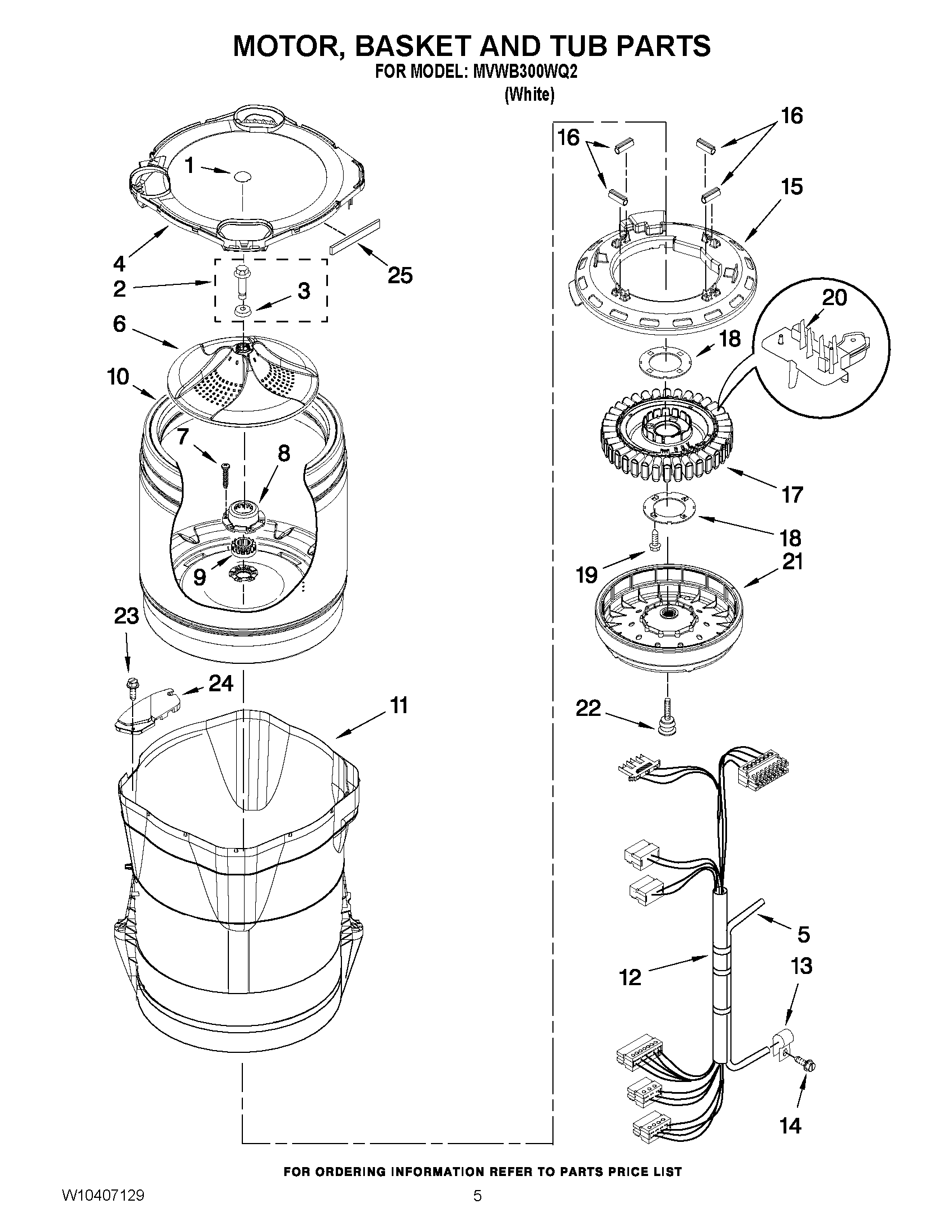

MVWB300WQ2 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10149460
2	MAY W10076270
3	MAY W10076260
4	MAY W10242338
5	MAY 8572540
6	MAY W10136071
7	SCREW
8	HUB, BASKET-DRIVEN
9	HUB, BASKET DRIVER
10	MAY W10321442
11	MAY W10128830
12	MAY W10137697
13	CLAMP, CABLE
14	Screw
15	SHIELD, DRIVE MOTOR
16	MAY 8565172
17	MAY 8565170
18	PLATE, STATOR
19	SCREW
20	MAY W10178988
21	ROTOR, MAIN DRIVE MOTOR
22	LINER (NOT A SERVICEABLE PART)
23	Screw
24	MAY W10222008
25	MAY W10205824
