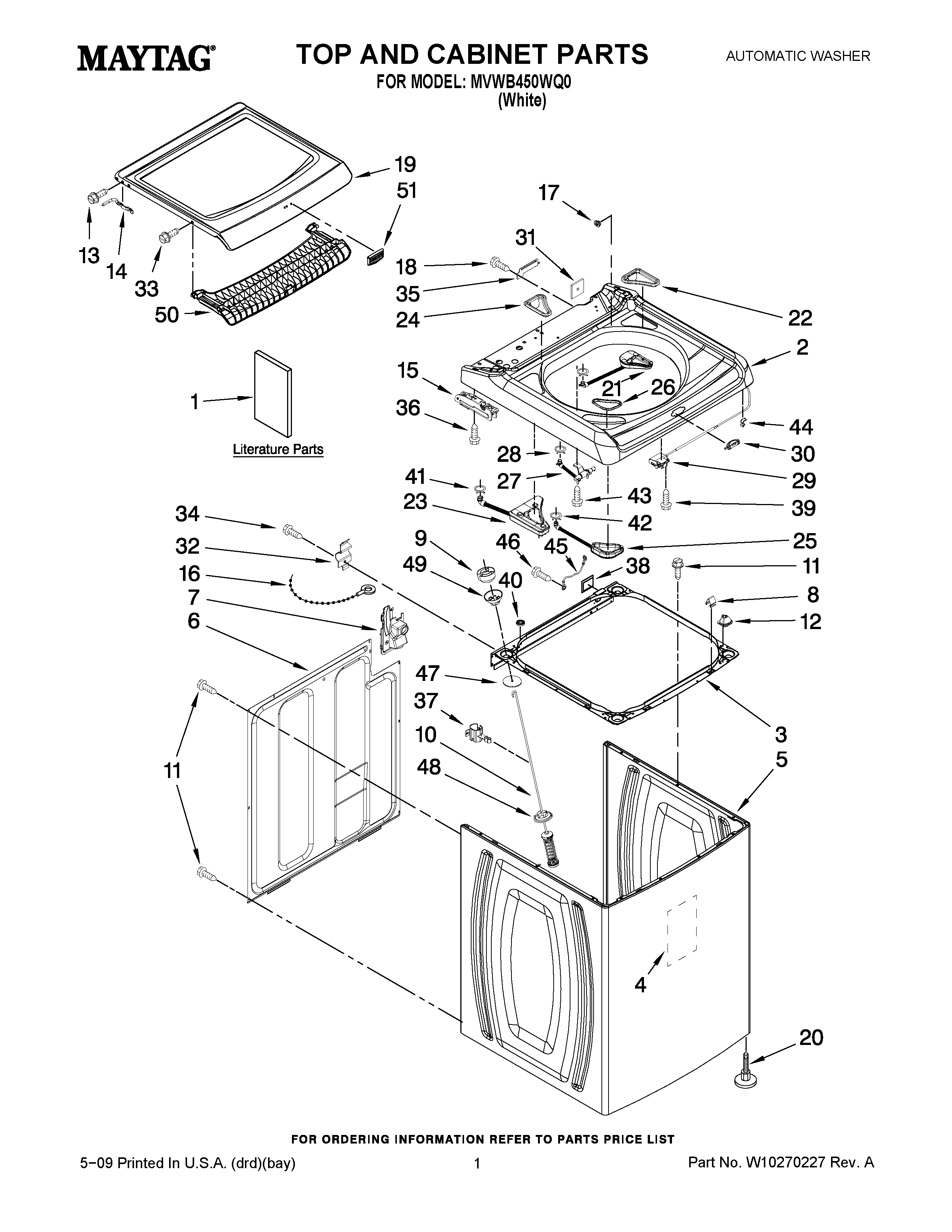

MVWB450WQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10092824
1	IMPROVED WASH PERFORMANCE SHEET (SPANISH)
1	IMPROVED WASH PERFORMANCE SHEET (ENGLISH/FRENCH)
1	INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1	MAY W10092825
1	MAY W10093831
1	MAY W10187317
1	MAY W10240439
1	MAY W10092819
2	MAY W10141678
3	FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38)
4	Cabinet-Damper, Sound (3)
5	CABINET (WHITE)
6	MAY 8566090
7	MAY W10160572
8	LOCK, TOP-FRONT
9	BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 9, 47, 48 & 49)
11	MAY 1157158
12	MAY W10042120
13	SCREW, LID HINGE
14	MAY 8563964
15	MAY W10141679
15	MAY W10141680
16	CABLE TIE
17	MAY W10119519
18	SCREW
19	MAY W10119497
20	MAY W10240448
21	MAY W10172146
22	Bezel, Fabric Softener Dispenser (White)
23	MAY W10187307
24	Bezel, Bleach Dispenser (White)
25	MAY W10172154
26	Bezel, Detergent Dispenser (White)
27	MAY W10106990
29	MAY W10059230
30	Bezel, Lid Lock (White)
31	TOP, FOAM SEAL
32	MAY 8564456
33	MAY 8563892
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY 371503
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8281736
46	Screw, 10-32 x 5/8
47	MAY 8577896
48	MAY 8564017
49	MAY W10167599
50	MAY W10119520
51	MAY W10153170
