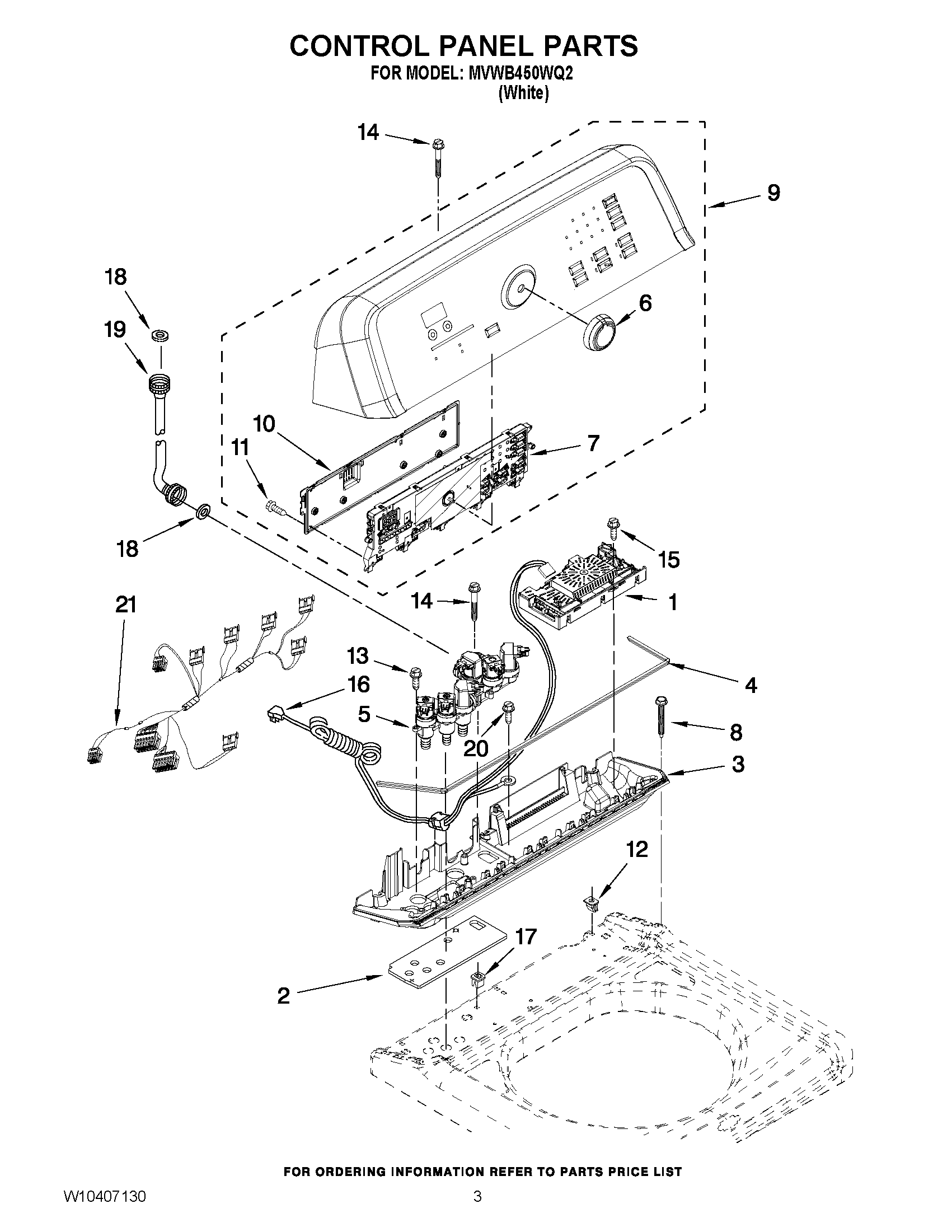

MVWB450WQ2 02 – CONTROL PANEL PARTS

MVWB450WQ2 02 – CONTROL PANEL PARTS

Written by

in

MVWB450WQ2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10372200
2MAY W10141695
3Tray Assembly, Console (Includes Items 2 & 4) (White)
4MAY W10141693
5VALVE, LOG ASSEMBLY
6MAY W10051126
7MAY W10338068
8SCREW
9MAY W10385600
10COVER, REAR
11Screw, 6-19 x 3/64
12NUT, PUSH IN
13SCREW
14SCREW
15SCREW
16MAY 3407203
17NUT, PUSH-IN
18ACCESSORY PARTS, WASHER, HOSE
19Hose, Water Inlet (Cold Water)
19Hose, Water Inlet (Hot Water)
20SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
21HARNESS, UPPER
