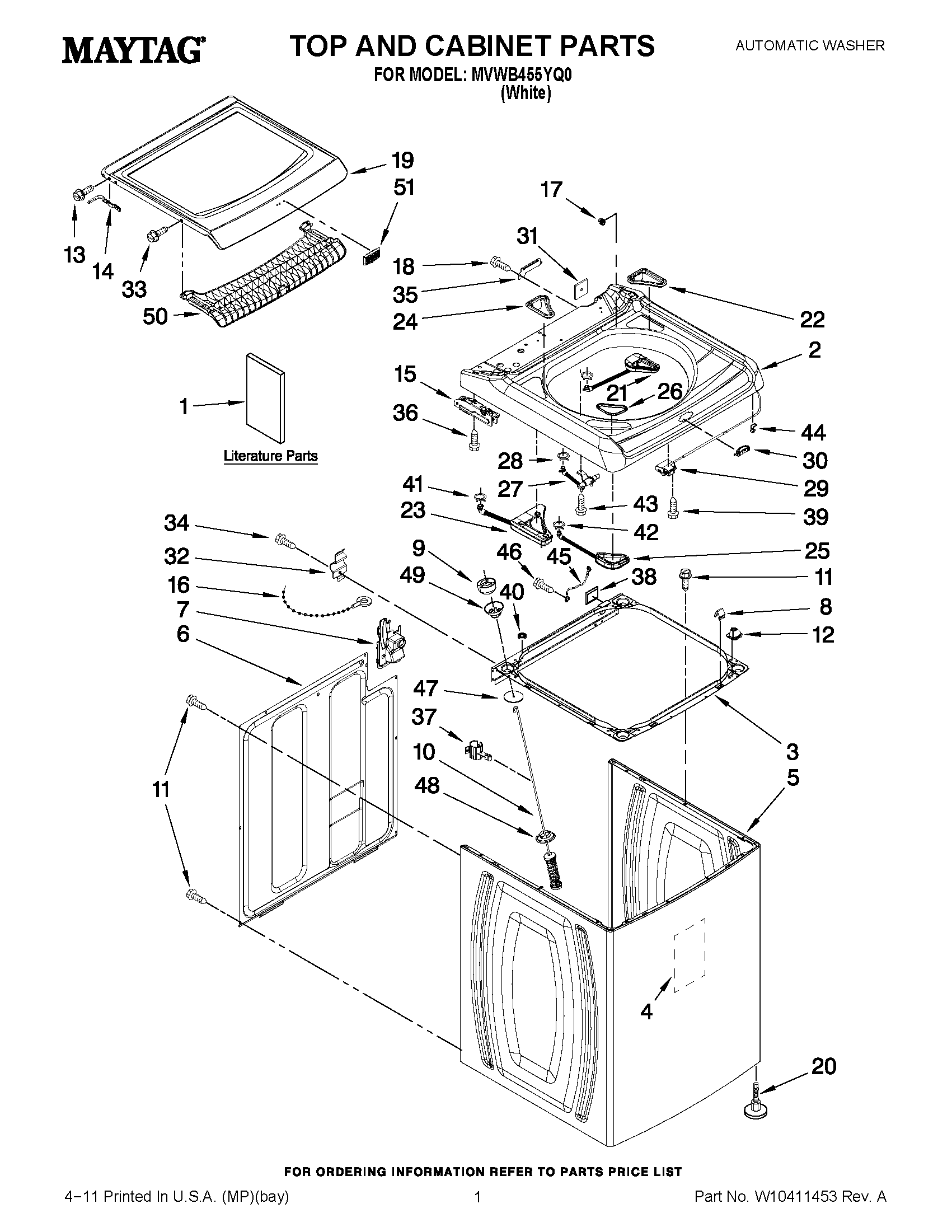

MVWB455YQ0 01 – TOP AND CABINET PARTSadmin2025-04-26T13:09:00+00:00MVWB455YQ0 01 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10372130 |
| 1 | INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH) |
| 1 | EZ INSTALLATION GUIDE |
| 1 | MAY W10240439 |
| 1 | MAY W10374149 |
| 1 | MAY W10371232 |
| 2 | MAY W10141678 |
| 3 | FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38) |
| 4 | Cabinet-Damper, Sound (3) |
| 5 | CABINET (WHITE) |
| 6 | MAY 8566090 |
| 7 | MAY W10160572 |
| 8 | LOCK, TOP-FRONT |
| 9 | BALL, SUSPENSION (SET OF 4 - (INCLUDES ITEM 49)) |
| 10 | DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 9, 47, 48 & 49) |
| 11 | MAY 1157158 |
| 12 | MAY W10042120 |
| 13 | SCREW, LID HINGE |
| 14 | MAY 8563964 |
| 15 | MAY W10141679 |
| 15 | MAY W10141680 |
| 16 | CABLE TIE |
| 17 | MAY W10119519 |
| 18 | SCREW |
| 19 | MAY W10119497 |
| 20 | MAY W10240448 |
| 21 | MAY W10172146 |
| 22 | Bezel, Fabric Softener Dispenser (White) |
| 23 | MAY W10187307 |
| 24 | Bezel, Bleach Dispenser (White) |
| 25 | MAY W10172154 |
| 26 | Bezel, Detergent Dispenser (White) |
| 27 | MAY W10106990 |
| 29 | MAY W10059230 |
| 30 | Bezel, Lid Lock (White) |
| 31 | TOP, FOAM SEAL |
| 32 | MAY 8564456 |
| 33 | MAY 8563892 |
| 34 | SCREW |
| 35 | MAY 8563941 |
| 36 | Screw |
| 37 | MAY 8543784 |
| 38 | MAY 8578386 |
| 39 | SCREW |
| 40 | MAY 8576476 |
| 41 | MAY 370451 |
| 42 | MAY 371503 |
| 43 | SCREW, DISPENSER HOUSING MOUNTING |
| 44 | Clip, Wire (4) |
| 45 | MAY 8281736 |
| 46 | Screw, 10-32 x 5/8 |
| 47 | MAY 8577896 |
| 48 | MAY 8564017 |
| 49 | MAY W10167599 |
| 50 | MAY W10119520 |
| 51 | MAY W10323735 |
