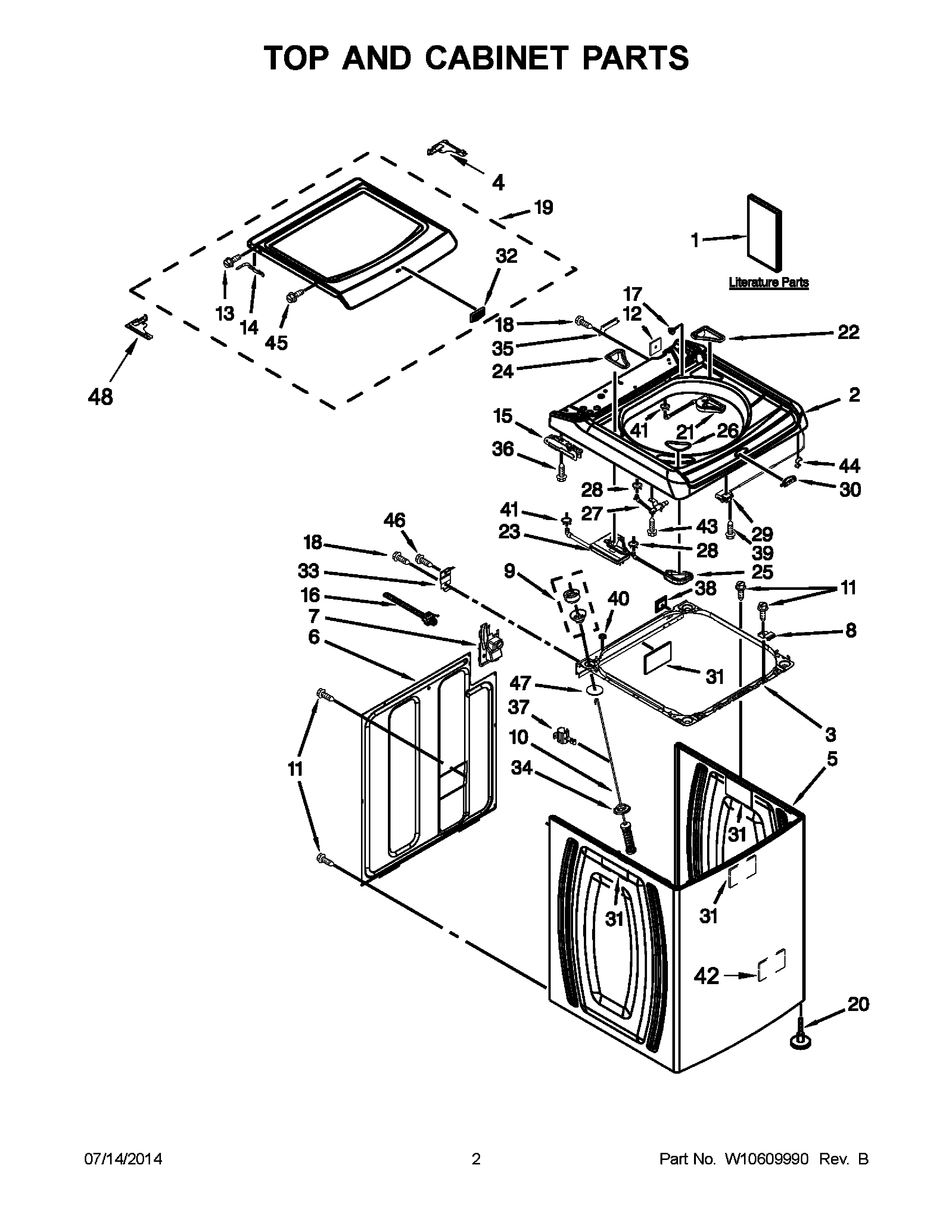

MVWB725BG0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10303822
1D	MAY W10403990
1C	MAY W10550277
1A	INSTALLATION INSTRUCTIONS
1B	MAY W10550269
2A	MAY W10552508
2	MAY W10552507
3	MAY W10386349
4A	CAP-HINGE, RIGHT (JADE GRAY)
4	Cap-Hinge, Right (
5A	MAY W10304158
5	CABINET (WHITE)
6	MAY 8566090
7	MAY W10160572
8	MAY W10248088
9	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
10	DAMPER ASSEMBLY, TUB SUSPENSION
11	MAY 1157158
12	TOP, FOAM SEAL
13	SCREW, LID HINGE
14	MAY 8563964
15	MAY W10141682
15A	MAY W10141681
16	CABLE TIE
17	MAY W10119519
18	SCREW
19	Lid, Glass Assembly (White)
19A	MAY W10304154
20	MAY W10240448
21	MAY W10553370
22	Bezel, Fabric Softener Dispenser (White)
22A	BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
23	MAY W10554110
24A	BEZEL, BLEACH DISPENSER (JADE GRAY)
24	Bezel, Bleach Dispenser (White)
25	MAY W10552116
26A	BEZEL, DETERGENT DISPENSER (GRAY)
26	Bezel, Detergent Dispenser (White)
27	MAY W10552206
28	MAY 371503
29	MAY W10059230
30A	BEZEL, LID LOCK (GRAY)
30	Bezel, Lid Lock (White)
31	MAY 8564458
32	MAY W10492808
33	MAY W10432012
34	MAY 8564017
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	MAY 8533961
40	MAY 8576476
41	MAY 370451
42	MAY W10414221
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8563892
46	Screw, 10-32 x 5/8
47	MAY 8577896
48A	CAP-HINGE, LEFT (JADE GRAY)
48	Cap-Hinge, Left (White)
