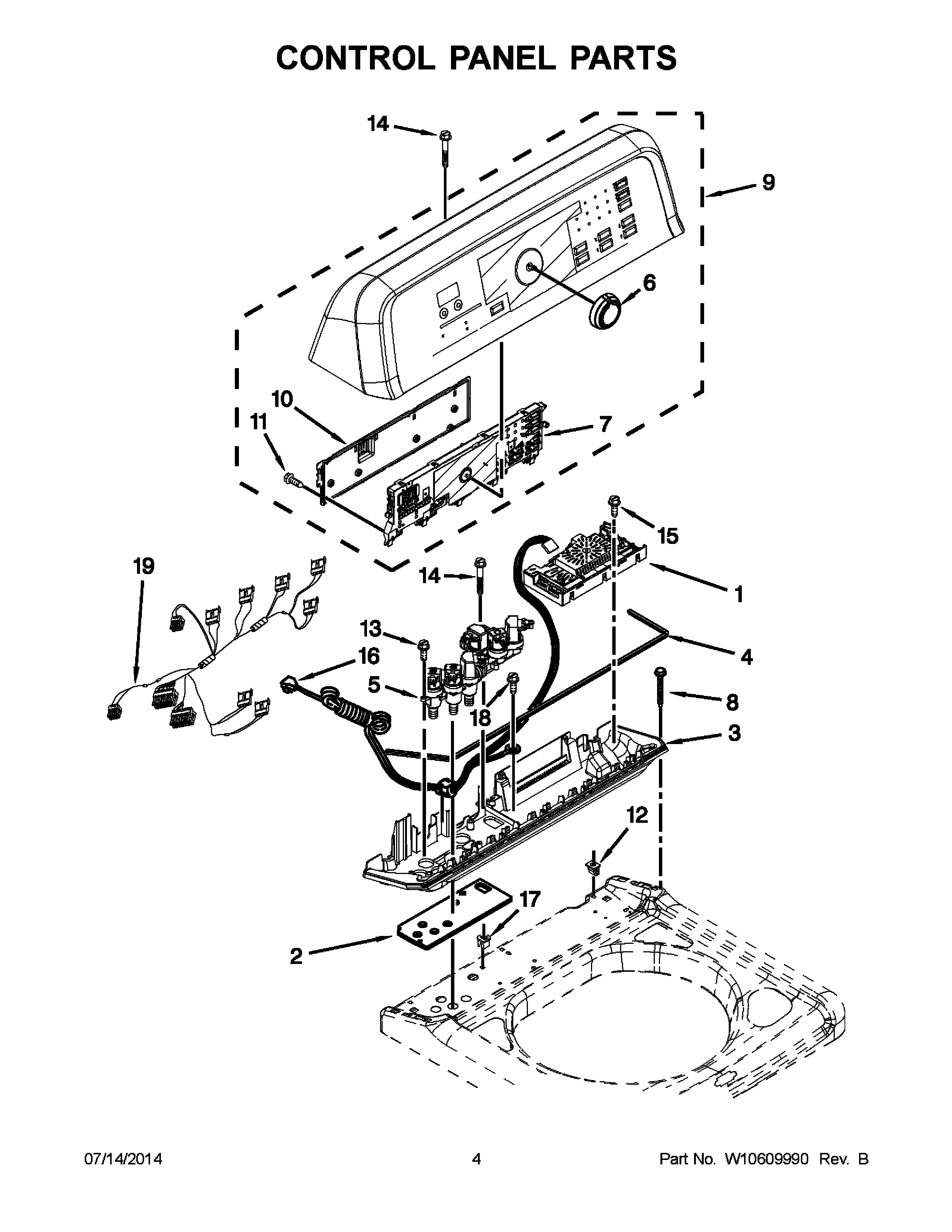

MVWB725BW0 03 – CONTROL PANEL PARTS

MVWB725BW0 03 – CONTROL PANEL PARTS

Written by

in

MVWB725BW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10522399
2MAY W10141695
3TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) (WHITE)
3AMAY W10356746
4MAY W10141693
5MAY W10342320
6MAY W10571098
7MAY W10536856
8SCREW
9MAY W10521059
9AMAY W10521060
10COVER, REAR
11Screw, 6-19 x 3/64
12NUT, PUSH IN
13SCREW
14SCREW
15MAY W10133427
16MAY W10547372
17NUT, PUSH-IN
18SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
19MAY W10404419
